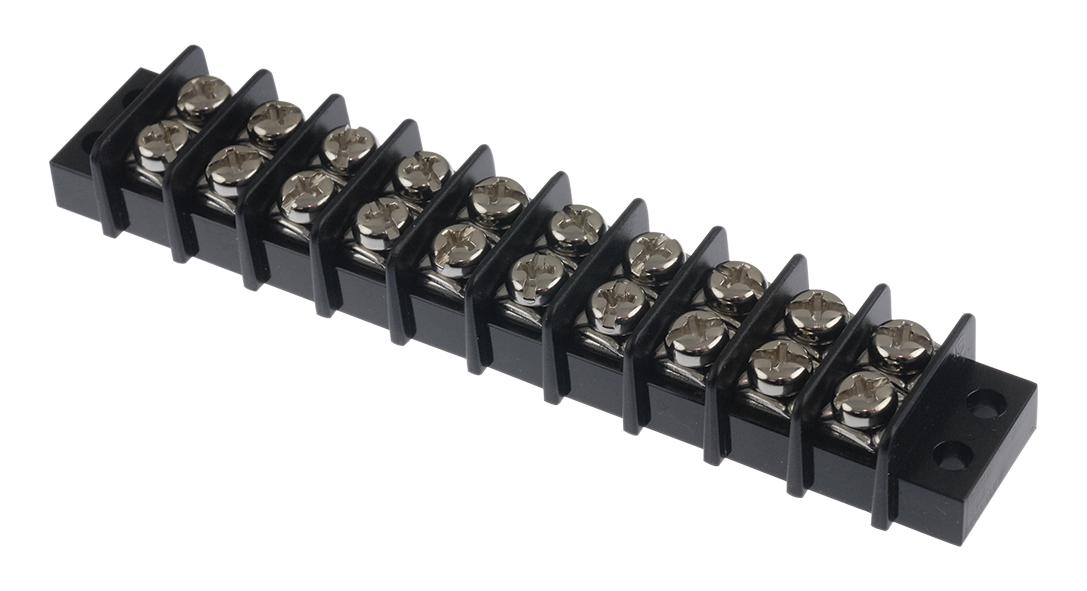

MULTICOMP PRO MC24317 Barrier Terminal Block
The MC24317 is a 10-pole, 20A black panel-mount barrier terminal block suitable for industrial applications, featuring a polycarbonate insulating body, brass contacts with tin plating, and a nickel-plated steel screw. It has a recommended torque of 12 lb-in, an insulation resistance exceeding 2000 MΩ at 500 VDC, and can withstand at least 200 VAC. This terminal block offers reliable electrical connectivity, rated for operation from -40°C to +120°C, with a wire range of 12AWG to 22AWG, making it ideal for automation and control systems requiring durable and safe wiring connections.
MULTICOMP PRO MC24317 Barrier Terminal Block Specifications:
- Pitch: 9.5mm
- Terminal Material: Brass, Tin plated
- Insulator Body: PC, Black
- Screw Material: Steel, Ni plated
- Operation Temperature: -40°C to +120°C
- Rated Current: 20Amp
- Rated Voltage: 300V
- Insulation Withstands Volt: 2,000V 1 min
- Insulation Resistance: 2,000MΩ at 500V DC
- Wire Range: 12AWG to 22AWG
- Screw Torque: 12 lb-in
Buy the Multicomp MC24317 – Reliable Barrier Terminal Block for Industrial Applications
Enhance your industrial wiring and control projects with the durable MC24317 barrier terminal block. Featuring a robust polycarbonate body, brass contacts, and a nickel-plated screw, it ensures reliable electrical connections and safety. Capable of handling 20A and tolerating operating temperatures from -40°C to +120°C, this terminal block supports wire ranges from 12AWG to 22AWG. Easy to install with a recommended torque of 12 lb-in, it’s ideal for automation, control panels, and wiring systems requiring robust, safe, and efficient connections.
Buy Multicomp MC24317 now and experience unmatched reliability and performance in industrial wiring and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24317?
You can click on the BUY or RFQ button to purchase MC24317 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24317?
You can download the MC24317 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24317?
MULTICOMP PRO
