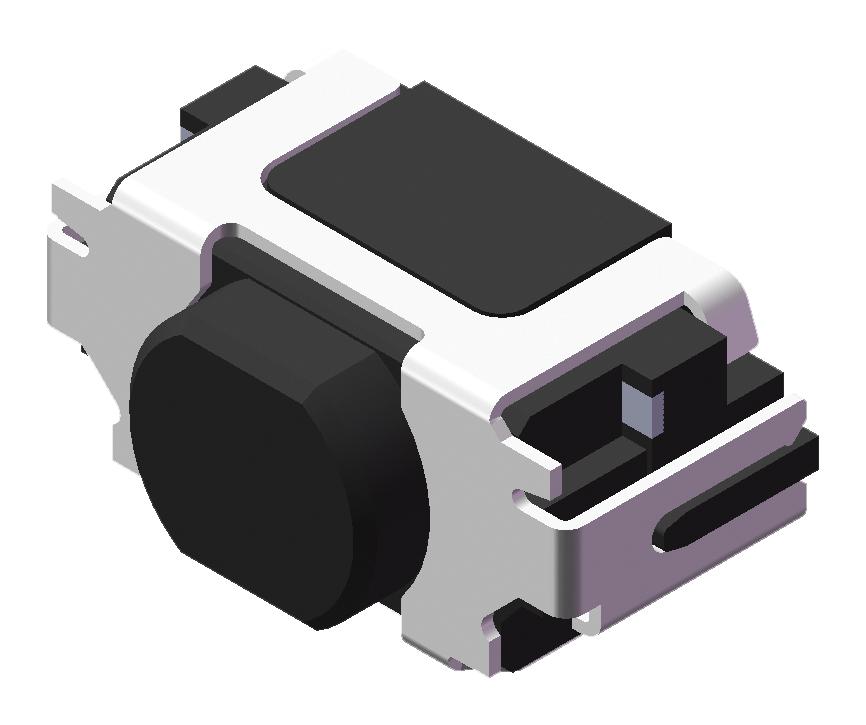

MULTICOMP PRO MP005532 Surface Mount Tact Switch
This surface mount tactile switch with post features a 12V DC SPST configuration, designed for compact electronic applications such as smartphones, digital cameras, and portable devices. It offers an operating life of 600,000 cycles, with operating forces adjustable between 160 to 250 gf. The switch supports a temperature range from -30°C to +85°C and features a small footprint of 4.5mm x 2.2mm, making it ideal for space-constrained environments. Its robust design and RoHS compliance ensure suitability for various consumer electronics and industrial uses.
MULTICOMP PRO MP005532 Surface Mount Tact Switch Specifications:
- Contact Rating: 50mA 12V AC
- Contact Resistance: 500mΩ max
- Insulation Resistance: 100MΩ min at 100V DC
- Dielectric Strength: 100V AC for 1 minute
- Operating Force: 160, 220, or 250 gf
- Travel: 0.15mm
- Operating Life: 600,000 cycles
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +90°C
- Physical Dimensions: 4.5mm x 2.2mm (miniature size)
- RoHS Compliant
Buy the Multicomp Surface Mount Tactile Switch – Reliable SPST for Industrial Applications
Discover the reliability and compact design of this surface mount tactile switch with post, supporting 12V DC SPST configuration. With an operating life of 600,000 cycles and operating forces adjustable from 160 to 250 gf, this switch is perfect for space-constrained electronic devices such as smartphones, digital cameras, and portable audio products. Its robust construction and RoHS compliance make it suitable for both consumer and industrial applications, ensuring durability and excellent performance in demanding environments.
Get Multicomp surface mount tactile switch today—built for precision and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005532?
You can click on the BUY or RFQ button to purchase MP005532 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005532?
You can download the MP005532 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005532?
MULTICOMP PRO
