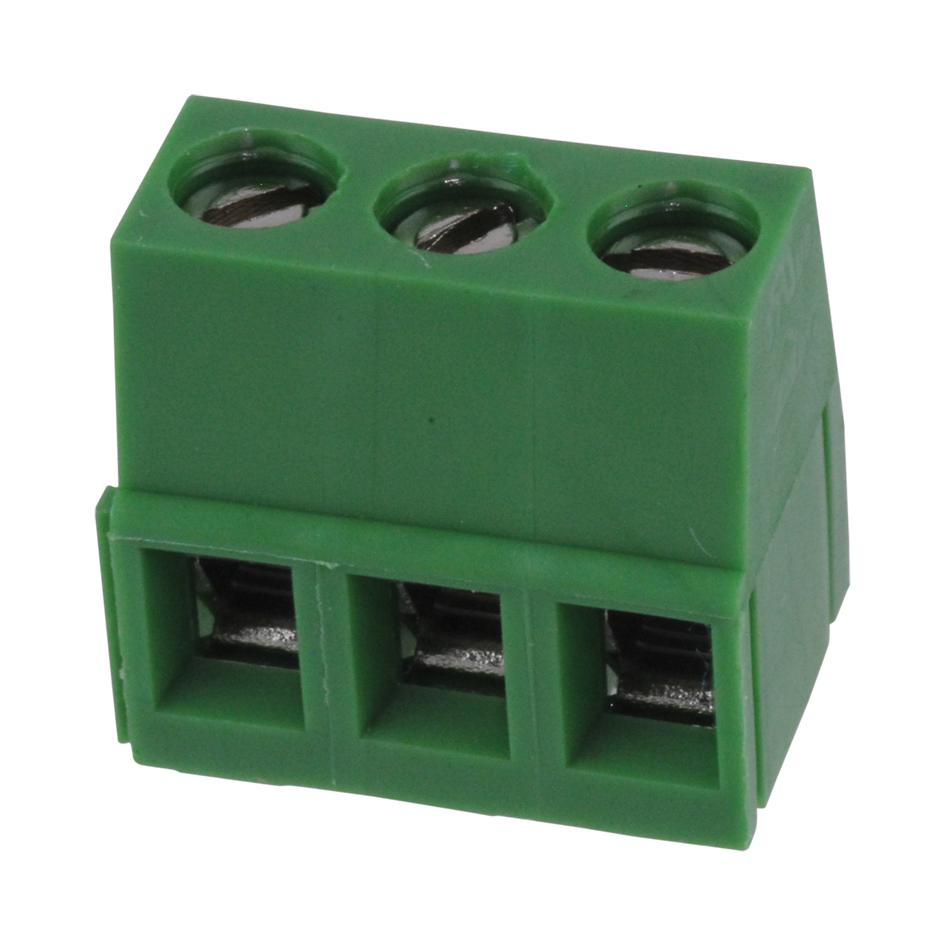

MULTICOMP PRO MC24362 Eurostyle Terminal Block
The MC24362 is a 3-position Eurostyle™ mini terminal block with tin-plated brass terminals and a UL94V-0 rated polyamide 66 insulator. It features nickel-plated steel M2.6 screws and a cage clamp, supporting wire sizes from 26 to 12 AWG. Designed for reliable, flexible installation as the plug side of a pluggable terminal block with horizontal wire entry, it operates between -40°C and 105°C. This industrial-grade component from the Multicomp Pro line ensures high performance, durability, and adjustable options for custom assembly needs, backed by a 12-month warranty.
MULTICOMP PRO MC24362 Eurostyle Terminal Block Specifications:
- Pitch: 5mm
- Poles: 2 to 3 Poles
- Housing Material: PA66
- Cage Clamp: Steel, Nickel-Plated
- Contact Material: Brass, Tin Plated
- Screw Thread: M2.6, Steel, Zinc Plated
- Wire Size: 12AWG to 26AWG
- PCB Hole Diameter: 1.5mm
- Tightening Torque, Max: 7Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 216A
- Nominal Voltage: 300V
- Dimensions: 26 mm (1.02 in) length, support for multiple poles
- Insulating Material: Polyamide 66 UL94V-0
Buy the Multicomp Series Eurostyle Terminal Block: MC24362
Order the Eurostyle Terminal Block MC24362 online today to ensure secure, durable electrical connections for your industrial projects. This high-quality component supports wire sizes from 26 to 12 AWG, features a UL94V-0 polyamide insulator, and is designed for reliable horizontal wire entry in pluggable configurations. With its robust steel cage clamp, nickel-plated steel M2.6 screws, and operating temperature range of -40°C to 105°C, it delivers exceptional performance. Easy to install and backed by a 12-month warranty, this terminal block is ideal for professional electrical and automation systems. Purchase now for efficient, dependable wiring solutions.
Buy Multicomp MC24362 now and experience reliable, high-performance terminal connections with versatile support for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24362?
You can click on the BUY or RFQ button to purchase MC24362 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24362?
You can download the MC24362 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24362?
MULTICOMP PRO
