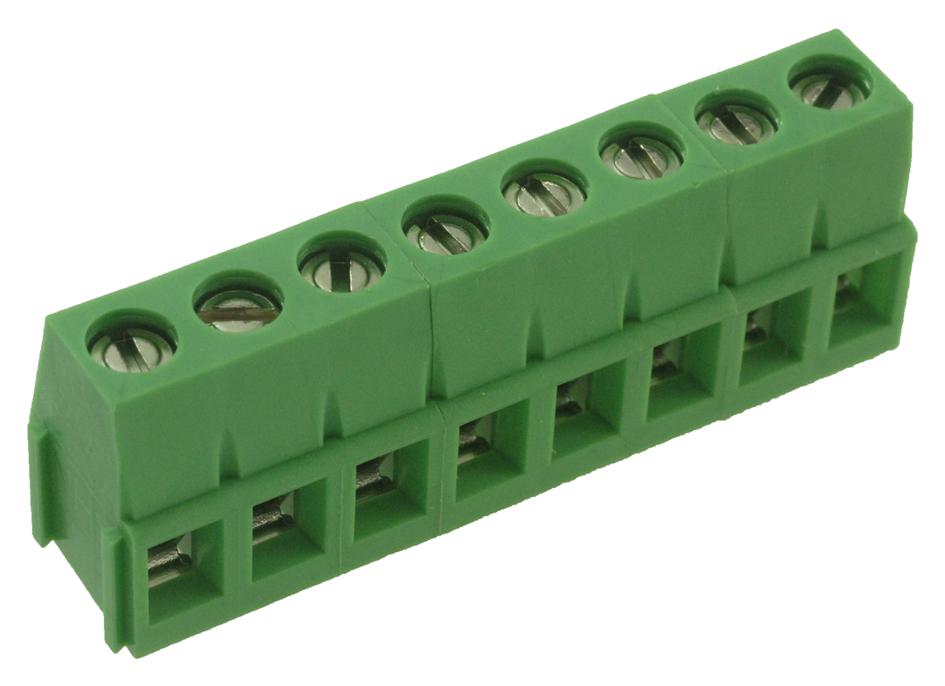

MULTICOMP PRO MC24365 Industrial Wire Terminal Block
The MC24365 is an 8-way, 16A wire-to-board terminal block with a right-angle through-hole design and screw wire connection. It features tin-plated brass contacts, a durable PA66 housing, and nickel-plated steel cage clamps and screws. Rated for UL94V-0 flammability, it operates reliably within temperatures from -40°C to 105°C. Ideal for industrial electronics, this terminal block supports wire sizes from 12AWG to 26AWG, ensuring strong, secure connections in various control and automation applications, backed by certifications and reliable performance standards.
MULTICOMP PRO MC24365 Industrial Wire Terminal Block Specifications:
- RoHS Compliant
- Pitch: 5.08mm
- Poles: 2 to 3 Poles
- Housing Material: PA66
- Cage Clamp: Steel, Nickel Plated
- Contact Material: Brass, Tin Plated
- Screw Thread: M2.6, Steel, Zinc Plated
- Wire Size: 12AWG to 26AWG
- PCB Hole Diameter: 1.5mm
- Tightening Torque, Max: 7Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 16A (per wire)
- Nominal Voltage: 300V
- Maximum Load Current: 16A
- Flammability Rating: UL94V-0
- Dimensions: Pitch 5.08mm, suitable for through-hole assembly
- Certification: UL Listed
- Material: Polyamide 66 (PA66)
Buy the Multicomp U2459 – Reliable Terminal Blocks for Industrial Applications
Purchase the industrial-grade wire terminal block MC24365 online today to ensure robust and reliable connections in control panels and automation systems. This 8-way terminal block features a right-angle through-hole design, screw wire connections, and a durable PA66 housing. It supports wire sizes from 12AWG to 26AWG and operates within a temperature range of -40°C to 105°C. Perfect for industrial automation, it guarantees safety, stability, and ease of installation, backed by certifications and a trusted brand name.
Order your Multicomp SeriesMC24365 terminal block today and ensure secure, reliable connections in your industrial projects with proven quality and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24365?
You can click on the BUY or RFQ button to purchase MC24365 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24365?
You can download the MC24365 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24365?
MULTICOMP PRO
