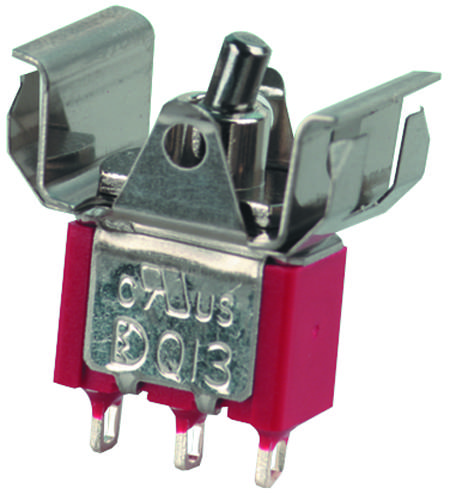

MULTICOMP PRO 3MS2M1QE Panel Mount Switch
This versatile SPDT switch offers reliable performance with a 2A contact rating for resistive loads at 120V AC or 28V DC. Designed for panel mounting, it features durable materials like brass, nickel plating, and epoxy sealing for long-term use. Its compact dimensions ensure easy integration into various control panels. Suitable for industrial automation, machinery, and equipment, this switch supports manual soldering and wave soldering processes. With a mechanical life of 50,000 cycles, it provides dependable switching for demanding applications. The switch supports multiple actuator and terminal options, ensuring adaptable installation and operation.
MULTICOMP PRO 3MS2M1QE Panel Mount Switch Specifications:
- Contact Rating: 2A resistive load at 120V AC or 28V DC; 1A at 250V AC
- Mechanical Life: 50,000 make-and-break cycles
- Max. Contact Resistance: 10mΩ initial at 2-4V DC 100mA for silver-plated contacts
- Min. Insulation Resistance: 1,000 MΩ
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Materials: Case - Diallyl phthalate; Actuator - Nylon, black; Bushing - Brass, nickel plated; Housing - Stainless steel; Switch Support - Brass, tin-plated; Contact - Brass with silver plated
- Dimensions: Millimetres (Inches) compact size suitable for panel mounting
- Terminations: Solder Lug option, thickness 0.030 inch, diameter 0.094 inch
- Soldering: Manual and wave soldering with controlled temperature profiles up to 260°C, recommended soaking and preheat times
Buy the Multicomp Series Switch: SPDT Panel Mount Mechanical Control: 3MS2M1QE
Purchase your Multicomp Series panel mount switch 3MS2M1QE online today and benefit from high resilience, precise switching, and dependable operation. This switch is perfect for industrial automation, machinery, and control panel projects, offering a robust design with versatile actuator and terminal options. Its resistance to wear and temperature extremes ensures long-term reliability in demanding environments. With easy soldering processes and an extensive mechanical life, this switch guarantees consistent performance. Elevate your control systems with a trusted, high-quality component and experience seamless online shopping convenience.
Order your Multicomp Series switch 3MS2M1QE today and enjoy reliable control performance with durable, high-quality construction for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 3MS2M1QE?
You can click on the BUY or RFQ button to purchase 3MS2M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 3MS2M1QE?
You can download the 3MS2M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 3MS2M1QE?
MULTICOMP PRO
