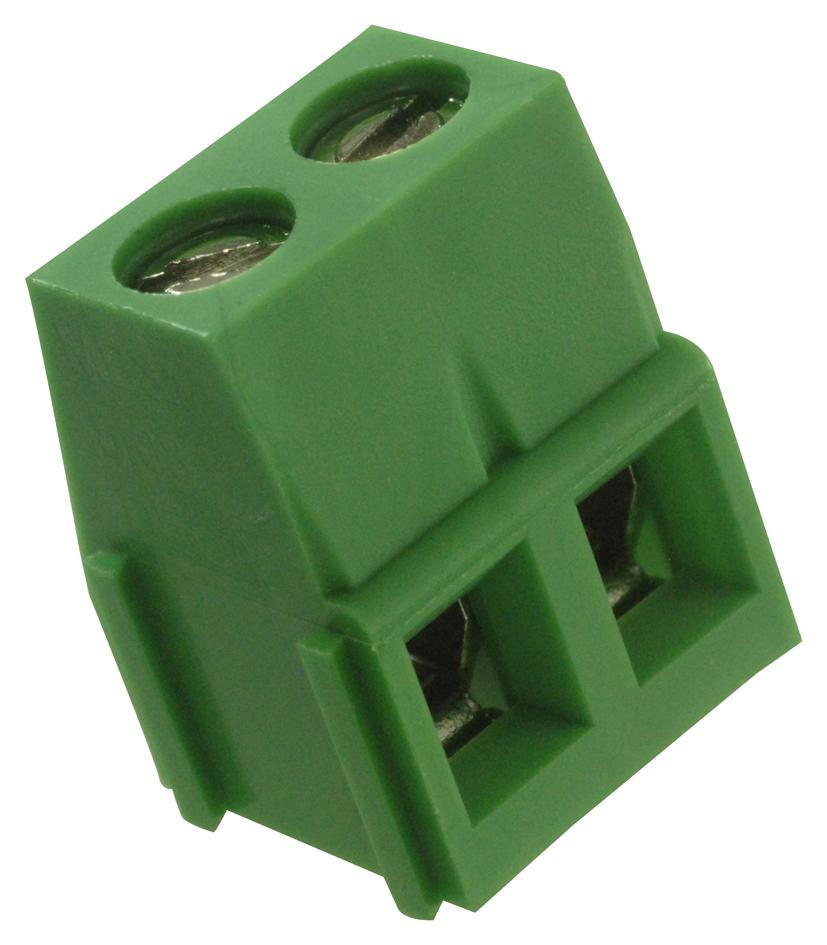

MULTICOMP PRO MC24366 Terminal Block
The MC24366 is a wire-to-board terminal block featuring a polyamide 66 (UL94 V-0) housing and a nickel-plated cage clamp for secure connections. It includes a tin-plated brass terminal and a nickel-plated steel M2.6 screw. This terminal block operates reliably within a temperature range of -40°C to 105°C, with a recommended screw torque of 7 lb-inch. Designed for industrial applications, it is part of the Multicomp Pro product line, which is highly rated by users and comes with a 12-month limited warranty.
MULTICOMP PRO MC24366 Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 216A
- Wire Size: 26 AWG to 12 AWG
- Housing Material: Polyamide 66 (UL94 V-0)
- Cage Clamp: Steel, Ni Plated
- Terminal: Brass, Tin Plated
- Screw Size: M2.6, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Torque: 7 lb-inch
Buy the Multicomp Series Terminal Block: MC24366
Enhance your electronic assembly with the sturdy and reliable terminal block, designed for secure wire connections in industrial applications. Featuring a polyamide housing, nickel-plated steel components, and an operating temperature range of -40°C to 105°C, this terminal block ensures durability and safety. Easy to install with a recommended torque of 7 lb-inch, it supports wire sizes from 26 to 12 AWG. Perfect for PCB mounting, it provides a robust connection solution for control panels, automation systems, and more. Buy online now for quick, dependable performance in your projects.
Get Multicomp MC24366 today—built for secure connections and reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24366?
You can click on the BUY or RFQ button to purchase MC24366 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24366?
You can download the MC24366 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24366?
MULTICOMP PRO
