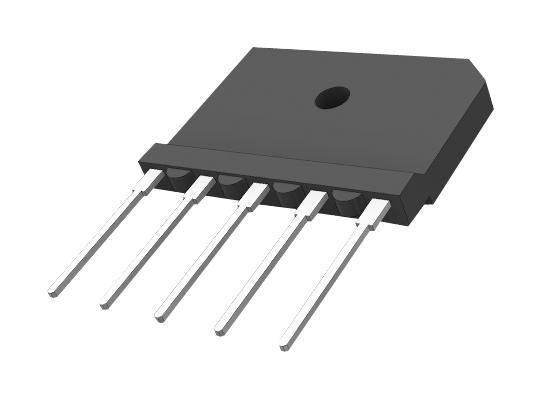

MULTICOMP PRO SGBJ3508 Three Phase Bridge Rectifier
The three-phase bridge rectifier is a high-reliability, glass-passivated chip designed for converting AC to DC power in industrial applications. It features low forward voltage drop, insulation voltage of 2500V, small size, and light weight. Suitable for power supplies, PWM converter input rectification, and DC motor operation, it handles peak repetitive voltages up to 1600V and continuous forward currents of 35A. The device offers high thermal conductivity with a maximum operating temperature of +150°C, making it ideal for demanding electronic and industrial systems.
MULTICOMP PRO SGBJ3508 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM 800, 1000, 1200, 1600 V depending on model
- Peak Non-Repetitive Reverse Voltage 900, 1100, 1300, 1700 V
- Maximum Average Forward Current 35 A
- Maximum Forward Voltage Drop at 17.5A peak 14 V
- Reverse Peak Current 5 pA
- RMS Isolation Voltage from Case to Lead 2500 V
- Thermal Resistance Junction to Case 0.8 °C/W
- Operating Temperature Range -55°C to +150°C
- Storage Temperature Range according to manufacturer datasheet
- Weight 10 g
- Dimensions approximately 1.391 inches (35.3 mm) x 0.993 inches (25.2 mm)
Buy the Buy Multicomp Three Phase Bridge Rectifier Part Number SGBJ3508 Online
Order the Multicomp three-phase bridge rectifier SGBJ3508 online today to ensure reliable AC to DC power conversion for industrial equipment, power supplies, and PWM converters. This high-capacity, glass-passivated rectifier handles peak voltages up to 1600V and continuous currents of 35A, providing excellent thermal performance and insulation. Its compact size and lightweight design make integration straightforward. Perfect for demanding environments requiring high efficiency and durability, placing this rectifier in your electronic toolkit guarantees long-lasting performance in power management systems.
Get Multicomp three-phase bridge rectifier SGBJ3508 today—designed for high reliability, efficient power conversion, and industrial durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ3508?
You can click on the BUY or RFQ button to purchase SGBJ3508 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ3508?
You can download the SGBJ3508 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ3508?
MULTICOMP PRO
