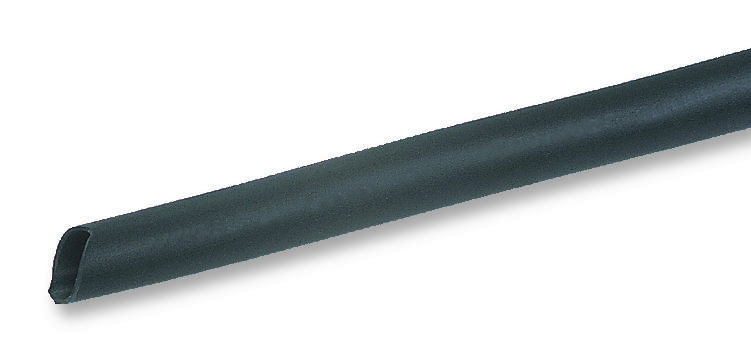

MULTICOMP PRO SPUL1264MMBLK Heat Shrink Tubing
Flexible, flame-retardant general purpose polyolefin heat shrink tubing designed for electrical insulation and protection. This tubing offers excellent dielectric strength of 25kV/mm, low water absorption of 0.5%, and superb flexibility from -55°C to 135°C. It features a shrink ratio of 2:1, with operating temperature around 100°C, and complies with RoHS standards. Ideal for wire harnessing, insulation, and cable repair, this heat shrink provides high tensile strength, excellent chemical resistance, and maintains performance after heat aging and fluid exposure, ensuring durable protection in demanding environments.
MULTICOMP PRO SPUL1264MMBLK Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to 135°C
- Shrink Temperature: 100°C
- Material: Polyolefin
- Standard Colour: Black
- Dielectric Strength: 25kV/mm
- Tensile Strength: Minimum 10 MPa
- Ultimate Elongation: Minimum 250%
- Specific Gravity: Maximum 1.35
- Fire Resistance: ASTM D876 pass
- Low Temperature Flexibility: No cracking at -55°C
- Flammability: Passes ASTM D876
- Electric Strength: Minimum 20kV/mm
- Water Absorption: Max 0.5%
- Fluid Resistance: Compatible with gasoline, hydraulic fluid, lubricating oil
- Dimensions vary with model, from 0.046 inches (1.2 mm) to 1 inch (25.4 mm) unshrunk diameter
- Fully shrunk diameters range from 0.023 inches (0.6 mm) to 0.5 inches (12.7 mm), Wall thickness varies by size
- Part Numbers include SPUL/1.2/1.2MMBLK to SPUL/1.2/25.4MMBLK
Buy the Buy Premier Farnell Heat Shrink Tubing Part Number SPUL1264MMBLK Online
Purchase the premium heat shrink tubing online today from trusted suppliers. This polyolefin-based tubing offers superior flexibility, high dielectric strength, and excellent environmental resistance. Perfect for insulation, wiring, and cable protection, it withstands heat aging, fluid exposure, and low temperature flexibility requirements. Whether for industrial, automotive, or electrical projects, ordering online guarantees fast delivery, quality assurance, and competitive prices. Equip your work with durable, flame-retardant heat shrink that performs reliably in harsh conditions and ensures electrical safety and longevity.
Order your Premier Farnell SeriesSPUL1264MMBLK flexible heat shrink tubing today and ensure reliable electrical insulation with excellent thermal and chemical resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SPUL1264MMBLK?
You can click on the BUY or RFQ button to purchase SPUL1264MMBLK from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SPUL1264MMBLK?
You can download the SPUL1264MMBLK datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SPUL1264MMBLK?
MULTICOMP PRO
