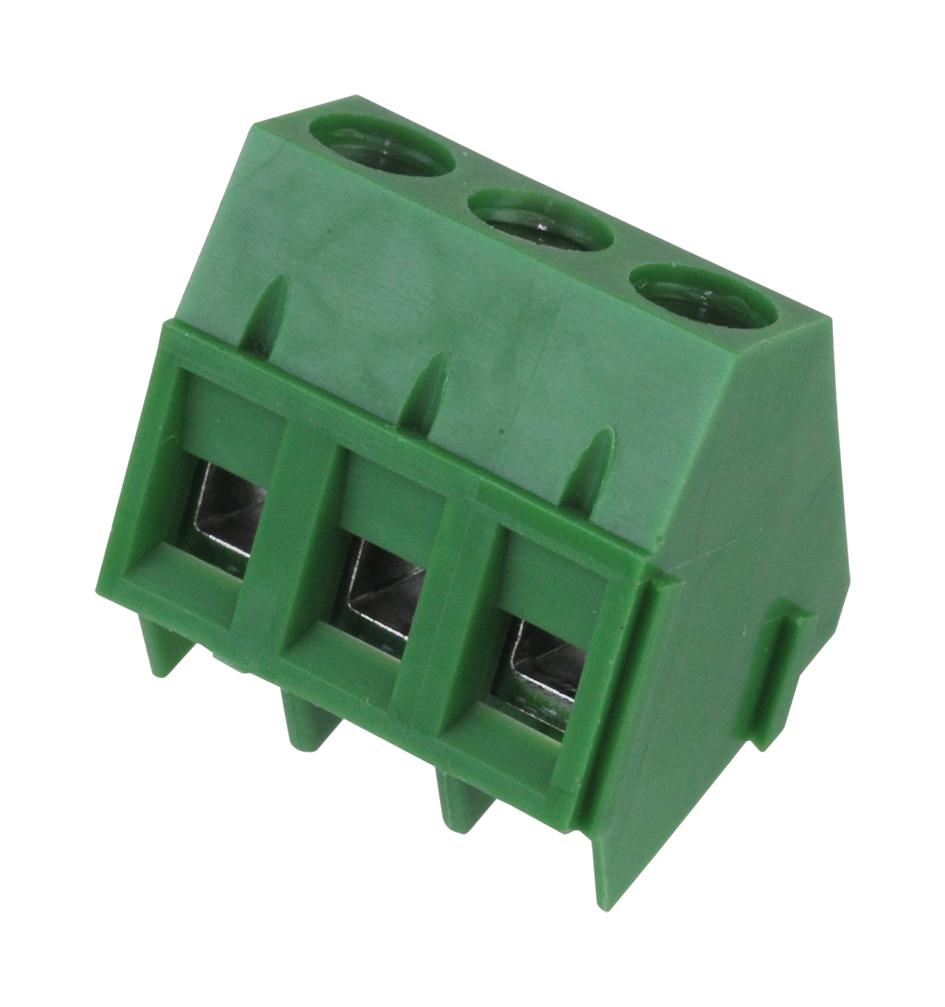

MULTICOMP PRO MC24372 Pluggable Terminal Block
The MC24372 is a three-position pluggable terminal block with green polyamide insulator and tin-plated brass terminals, designed for reliable wire-to-board connections. It supports wire sizes from 12 to 26 AWG, with a wire strip length of 4 to 5 mm, and requires a screw torque of 5 inch-pounds. Rated for 16 Amperes and 300V AC, it offers an insulation resistance greater than 2000 megaohms and operates from -40°C to +105°C. Its horizontal wire entry and nickel-plated steel screws ensure easy installation in industrial and automation applications, providing durable, efficient connections.
MULTICOMP PRO MC24372 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000Megaohms 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 12 AWG to 26 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 5 inch-pounds
- Material: Insulating Body Polyamide 66 Green, Brass Nickel-plated cage clamp and terminal, Steel Nickel-plated screw
- Pitch: 5.08mm (0.2 inches)
- Dimensions: 15.24mm length for 3-pole model, 40.64mm for 8-pole, 60.96mm for 12-pole
Buy the Buy multicomp Terminal Block Pluggable Part Number MC24372 Online
Order the multicomp MC24372 pluggable terminal block online now for dependable wire-to-board connections in industrial and automation applications. Designed with an insulating polyamide body and high-quality tin-plated brass terminals, this three-pole connector supports wire sizes from 12 to 26 AWG, with a wire strip length of 4 to 5 mm. It’s rated at 16A and 300V AC, with an insulation resistance exceeding 2000 Megaohms, and operates from -40°C to +105°C. Easy to install and modify, ensuring long-lasting, secure connections for demanding environments.
Get multicomp MC24372 today—built for reliable industrial wiring and easy installation in automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24372?
You can click on the BUY or RFQ button to purchase MC24372 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24372?
You can download the MC24372 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24372?
MULTICOMP PRO
