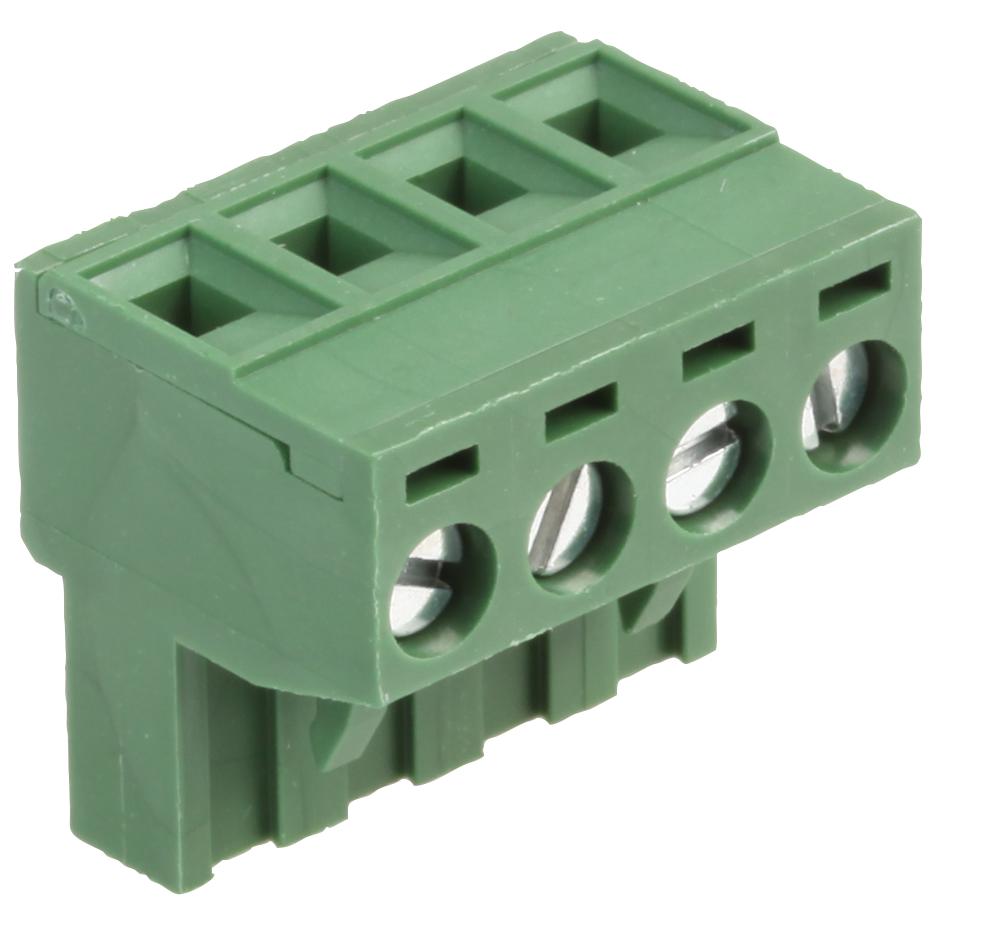

MULTICOMP PRO MC000178 Pluggable Terminal Block
The pluggable terminal blocks are designed for easy wiring connections in electrical and automation systems. With a current rating of 16A and voltage capacity of 300V AC, these blocks facilitate secure connections with a wire range of 112 AWG to 24 AWG and a wire strip length of 4mm to 5mm. Made from durable polyamide 66 with phosphor bronze and brass contacts, they withstand operating temperatures from -40°C to +105°C. Available in various pole counts with a 5.08mm pitch, these versatile connectors ensure reliable performance in industrial applications.
MULTICOMP PRO MC000178 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes
- Voltage Capacity: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 112 AWG to 24 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7 Ib-inch
- Pitch: 5.08 mm (0.2 inch)
- Material: Polyamide 66 insulating body, phosphor bronze contact, brass cage clamp, steel zinc-plated screw
- Pole Count: 2 to 12 poles
- Dimensions vary with pole count, with a standard pitch of 5.08mm
Buy the Multicomp Series Pluggable Terminal Blocks: MC000178
Order the Multicomp Pluggable Terminal Block MC000178 online today for reliable wiring solutions in industrial and automation projects. Designed with a 16A current rating and 300V AC capacity, these terminal blocks feature a durable polyamide body, corrosion-resistant contacts, and a standard 5.08mm pitch. They support wire ranges from 112 AWG to 24 AWG with easy wire strip length of 4mm to 5mm. Available in various pole configurations, these connectors ensure stable, secure connections for various electrical applications. Purchase online now for quick delivery.
Get Multicomp MC000178 today—built for secure connections in industrial automation with durable polyamide and corrosion-resistant contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000178?
You can click on the BUY or RFQ button to purchase MC000178 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000178?
You can download the MC000178 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000178?
MULTICOMP PRO
