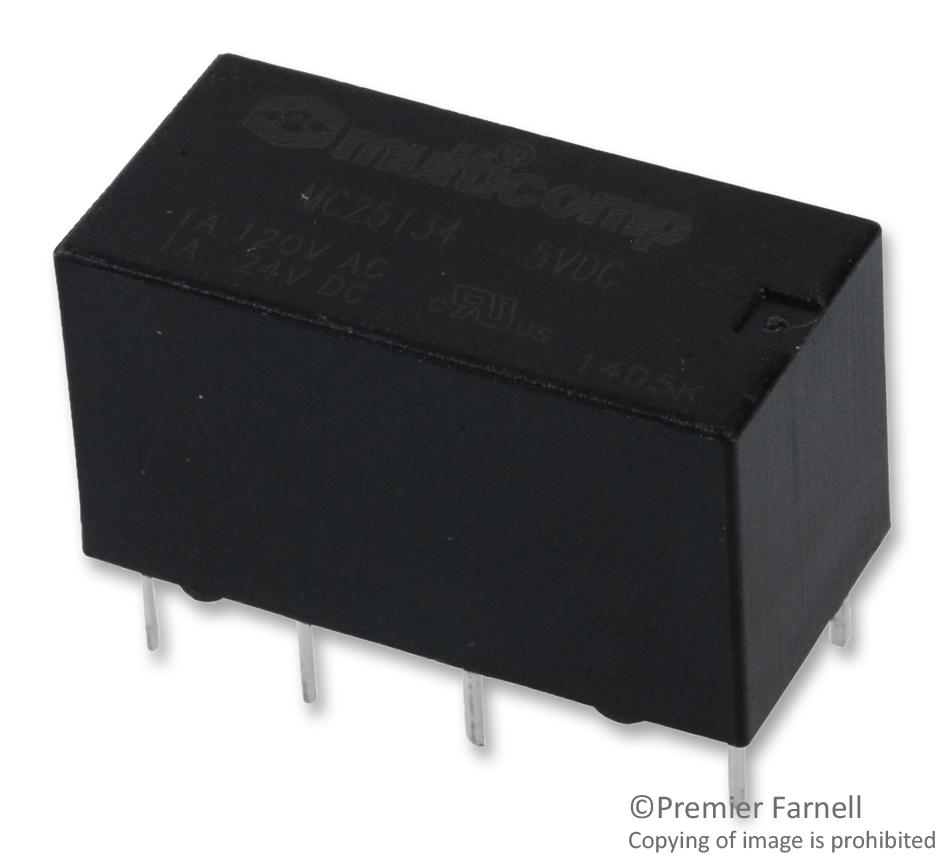

MULTICOMP PRO MC25134 Low-Signal PCB Relay
The MC25134 is a low-signal PCB relay with double-pole double-throw contacts, featuring gold over silver alloy overlays for high reliability and low contact resistance. It has solder terminals, housed in a sealed plastic enclosure, suitable for industrial applications requiring precise switching and high sensitivity. Operating efficiently between -25°C and 70°C, it supports voltages up to 125V AC and 30V DC, with a switching current of 1A to 2A. This relay is ideal for automation, control systems, and signal switching in demanding environments, ensuring dependable performance and long operational life.
MULTICOMP PRO MC25134 Low-Signal PCB Relay Specifications:
- Contact Type: Double-pole double-throw (DPDT)
- Contact Material: AuAg overlay, Ag Alloy
- Contact Rating: 2A (Standard), 1A (High Sensitivity)
- Max. Switching Voltage: 125V AC/30V DC
- Max. Switching Power: 120VA, 30W
- Max. Contact Resistance: 50mΩ (Standard), 100mΩ (High Sensitivity)
- Operating Temperature Range: -25°C to +70°C
- Dielectric Strength: 750V AC between open contacts, 1000V AC between coil and contacts
- Operate Time: Max. 7ms
- Release Time: Max. 3ms
- Voltage Rating: 120V AC/24V DC
- Coil Resistance: 200Ω at 20°C for 12V coil
- Physical: Solder terminals, plastic sealed enclosure
- Life Expectancy: 100,000 operations (Electrical), 15,000,000 (Mechanical)
Buy the Buy Multicomp Pro Relay Part Number MC25134 Online
Purchase the Multicomp Pro low-signal PCB relay MC25134 online today to ensure reliable, high-sensitivity switching in industrial control and automation systems. Featuring gold over silver alloy contacts, sealed plastic enclosure, and a broad temperature range, this relay offers durable performance for demanding applications. With a contact rating up to 2A and operation speeds, it’s ideal for signal switching, automation, and control processes. Quick and easy online ordering guarantees you dependable parts for your electronic projects and industrial setups, backed by trusted suppliers.
Buy Multicomp Pro MC25134 relay now and enjoy high sensitivity, reliable switching, and long operational life for industrial automation needs.
