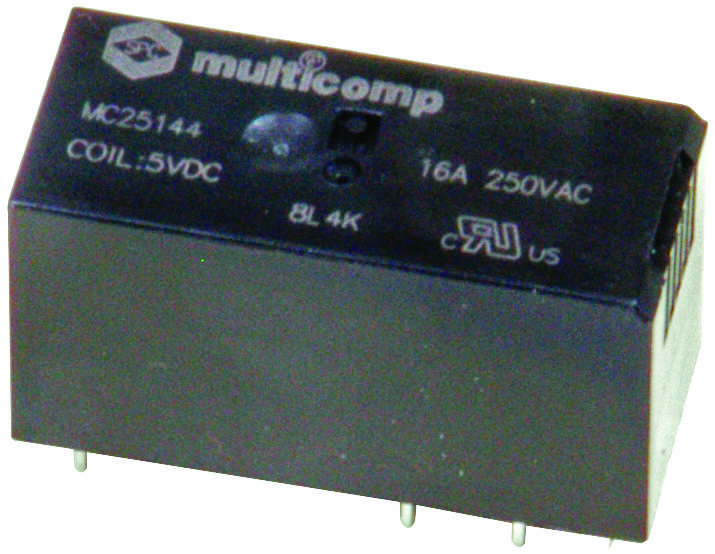

MULTICOMP PRO MC25144 industrial power relay
The MC25144 is a versatile industrial power relay featuring a single-pole double-throw (SPDT) silver alloy contact, solder-through terminals, and a coil resistance of 62.5 ohms. Designed for robust performance, it operates with a coil power of 400mW and offers dielectric strength of 5,000 VAC for one minute. Capable of 100,000 electrical cycles, it ensures reliable switching with operate and release times of 10ms and 5ms respectively. Its wide operating temperature range from -40°C to 85°C makes it ideal for demanding industrial environments, providing durable and consistent control functions.
MULTICOMP PRO MC25144 industrial power relay Specifications:
- Contact Material: Ag Alloy
- Contact Form: SPDT
- Coil Resistance: 62.5 Ω
- Coil Power: 400mW
- Dielectric Strength: 5000VAC (1 min between coil and contacts)
- Electrical Life: 100,000 operations
- Operate Time: Max 10ms
- Release Time: Max 5ms
- Operating Temperature Range: -40°C to +85°C
- Switching Voltage: Max 380V AC/30V DC
- Switching Current: Resistive: 16A 250V AC / 30V DC, Inductive: 8A 250V AC
- Max Switching Power: 4000VA, 240W
- Min Load: 5V DC, 100mA
- Contact Resistance: 100mΩ (6V DC 1A)
Buy the Multicomp Series Power Relay: MC25144
Purchase the Multicomp MC25144 online to ensure reliable switching performance in demanding industrial environments. This general-purpose relay features SPDT contacts, high dielectric strength, and a wide temperature range from -40°C to 85°C. Designed for a lifespan of 100,000 electrical operations, it guarantees durability and precise control in automation and control systems. The relay’s solder-through terminals facilitate easy installation, while its robust construction ensures consistent operation, making it the ideal choice for industrial automation, machinery, and equipment where dependable switching is essential. Buy now for dependable performance.
Get Multicomp MC25144 today—built for industrial reliability and long-lasting control performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25144?
You can click on the BUY or RFQ button to purchase MC25144 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25144?
You can download the MC25144 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25144?
MULTICOMP PRO
