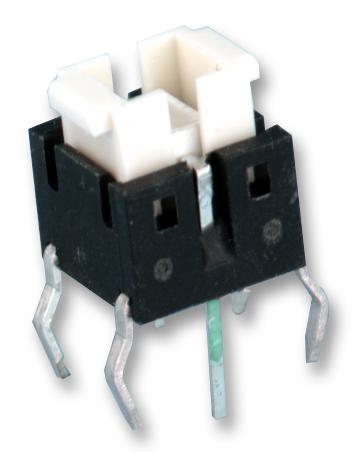

MULTICOMP PRO TLL62BR Tactile Switch
The TLL-62BR tactile switch features a bright red LED indicator with a durable stainless steel contact disc, brass terminals with silver plating, and a high-temperature nylon stem and base. Designed for industrial applications, it supports 20,000 electrical operations, withstands temperatures from -25°C to +70°C, and boasts high dielectric strength of 250VAC. Its compact size, 7mm external length, and low contact resistance of 100 milliohms make it reliable for demanding environments. Suitable for circuitry requiring tactile feedback, this switch offers a sharp audible click and positive tactile feel for enhanced usability.
MULTICOMP PRO TLL62BR Tactile Switch Specifications:
- Mechanical Terminals: Stainless steel
- External Length / Height: 7mm
- External Width: 6.1mm
- Height: 4.8mm
- Number of Electrical Operations: 20,000
- Series: TLL
- Switch Operation: SPST
- Operation Force: 50gf
- Stroke: 0.31 inches
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Life: 200,000 cycles minimum
- Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100 MΩ min. at 500VDC
- Dielectric Strength: 250VAC for one minute
- Contact Arrangement: SPST
- Contact Material: Stainless steel
- Terminal Material: Brass with Silver plating
- Base Material: LCP high-temperature thermoplastic
- Stem Material: Nylon high-temperature thermoplastic
- Soldering Process: Wave soldering max 260°C for 5 seconds, hand soldering at 608°F (320°C) for approx. 2 sec
- Features: Sharp click with tactile feedback, ultraminiature, flux-resistant moulding, through hole design
Buy the Multicomp Series TLL Tactile Switch: TLL62BR
Discover the reliable TLL-62BR tactile switch, perfect for industrial and electronic projects. Featuring stainless steel contacts, a high-temp nylon stem, and a compact design, it offers exceptional durability and performance under demanding conditions. With 20,000 electrical cycles and a dielectric strength of 250VAC, this switch ensures long-lasting operation. It’s suitable for applications requiring tactile feedback, LED indication, and high-temperature resilience. Buy online now to experience dependable switching that enhances your device’s functionality and reliability.
Order your Multicomp Series TLL Tactile Switch TLL62BR today and ensure reliable tactile feedback with durable high-temperature thermoplastic construction.
