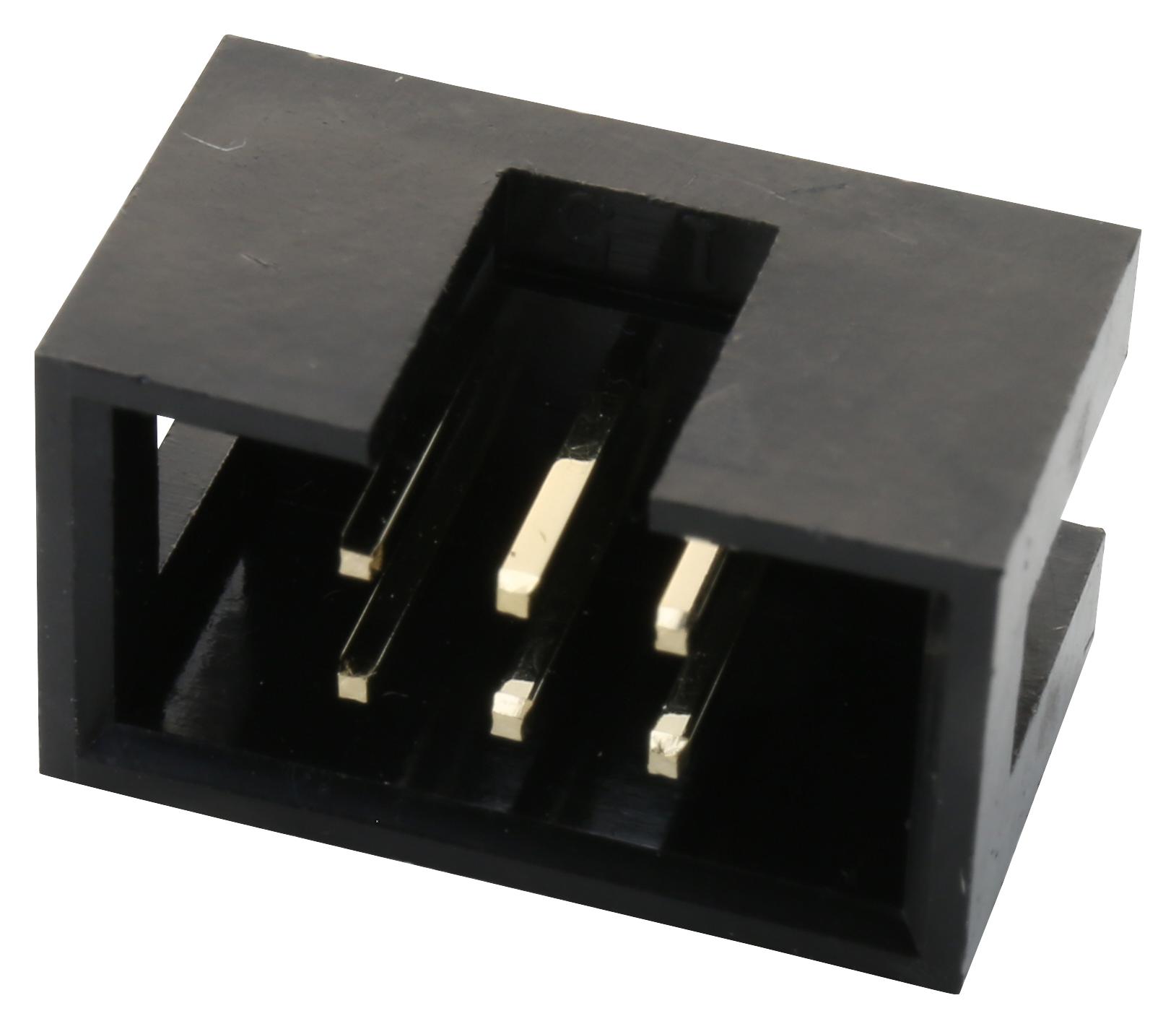

MULTICOMP PRO MC2540600STDIP 2.54mm Header Connector
This 2.54mm box header from Multicomp Pro is a double row, vertical through-hole type connector designed for reliable electrical connections in various electronic assemblies. It features high-quality copper alloy contacts with gold plating for enhanced conductivity and corrosion resistance. The insulator is made of UL94V-0 rated PBT, ensuring safety and durability. Rated for 8A continuous current at 250V, it can withstand voltages up to 600V AC for one minute. Operating temperature ranges from -40°C to +105°C, making it suitable for diverse industrial and consumer applications. Its precise dimensions and keying ensure proper alignment and reliable mating.
MULTICOMP PRO MC2540600STDIP 2.54mm Header Connector Specifications:
- Pitch: 2.54mm
- Contact Material: Copper Alloy, Gold Plated
- Insulator Material: PBT (UL94V-0)
- Current Rating: 8A
- Voltage Rating: 250V AC/DC
- Withstanding Voltage: 600V AC for one minute
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Operating Temperature Range: -40°C to +105°C
- Dimensions vary per model, e.g., 15.28mm to 88.94mm in length, with standard widths and heights specified in datasheet
- Keying: 1Key for proper orientation
- Design: Double row, through-hole, vertical header
Buy the Buy Multicomp SeriesMC-254-60-00-ST-DIP Part Number MC2540600STDIP Online
Secure your electronics with the reliable 2.54mm Header Connector from Multicomp Pro. Designed for high performance and durability, this double row, vertical through-hole connector is perfect for various circuit board applications. Crafted from high-quality copper alloy with gold plating, it ensures excellent electrical conductivity and corrosion resistance. Rated for 8A at 250V, it withstands voltages up to 600V AC for one minute, functioning effectively over a temperature range of -40°C to +105°C. Easy to install, precise, and durable, it is an essential component for your electronic assembly needs.
Order your Multicomp SeriesMC-254-60-00-ST-DIP MC2540600STDIP today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2540600STDIP?
You can click on the BUY or RFQ button to purchase MC2540600STDIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2540600STDIP?
You can download the MC2540600STDIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2540600STDIP?
MULTICOMP PRO
