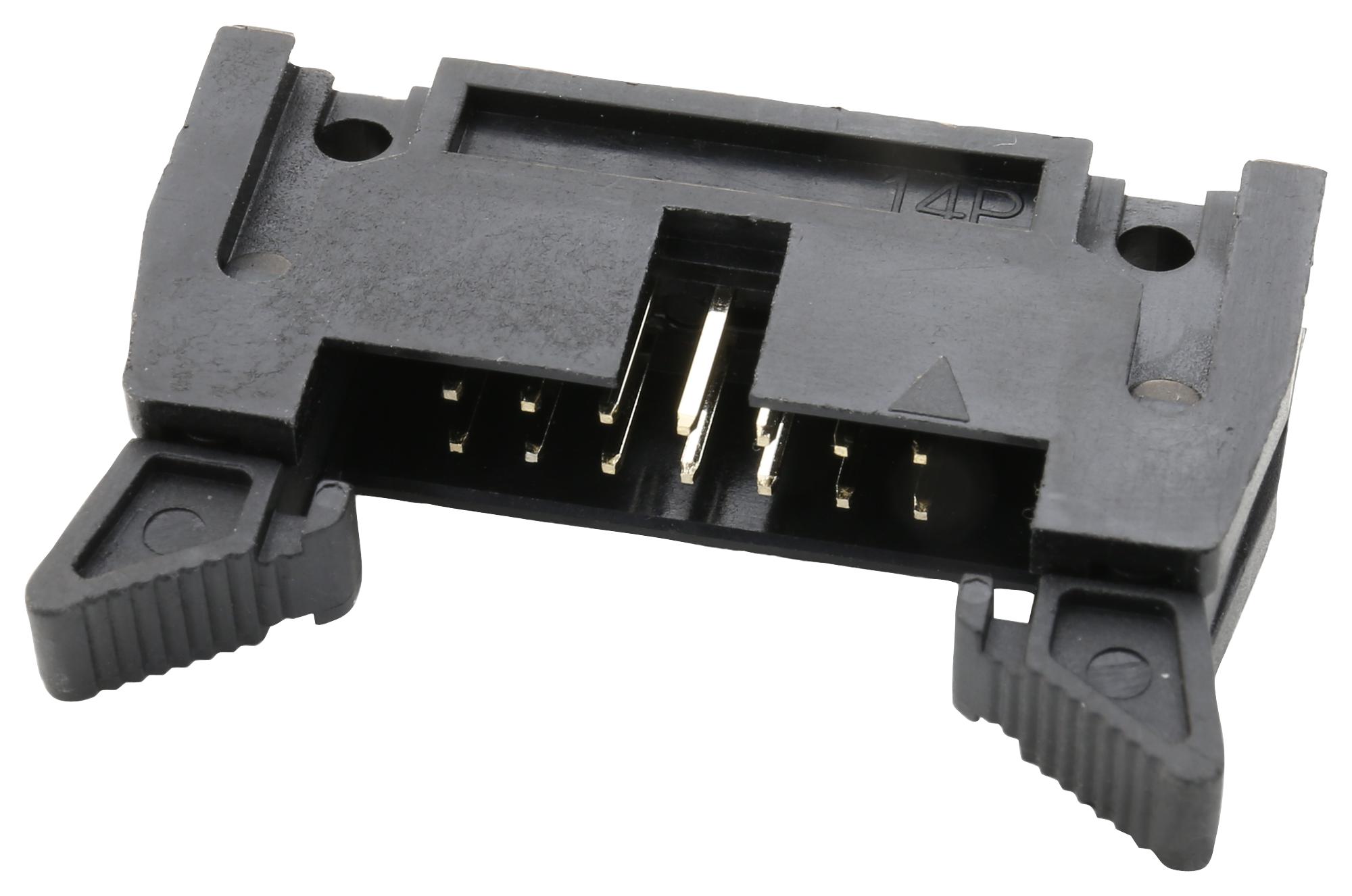

MULTICOMP-PRO MC25416LLRADIP double row shrouded header
This versatile 2.54mm shrouded header with ejector offers reliable connection points for electronic assemblies with through-hole mounting and dual-row configuration. Equipped with either short or long ejectors, available in multiple pin counts from 10 to 64 positions, it features gold-plated copper contacts for excellent conductivity and corrosion resistance. Made from UL94V-0 rated black PBT plastic, it withstands operating temperatures from -40°C to +105°C, supports 8A current at 250V AC/DC, and is ideal for PCB connections requiring durability and precise positioning.
MULTICOMP-PRO MC25416LLRADIP double row shrouded header Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Number of Positions: 10, 14, 16, 20, 26, 34, 40, 50, 60, 64
- Row Configuration: Double Row
- Mounting Type: Through Hole
- Connector Type: R/A (Right Angle)
- Dimensions vary: A from 32.2mm to 100.78mm, B from 10.16mm to 78.74mm, c from 10.16mm to 40.64mm.
- Designed for reliable PCB connections with high-temperature resistance and corrosion-proof contacts.
Buy the Multicomp 96-144-26 LLRA – Reliable 2.54mm Double Row Header for Industrial Applications
Secure your electronic assemblies with the high-performance 2.54mm double row shrouded header featuring ejector mechanisms. Designed with gold-plated copper contacts, it offers excellent conductivity and corrosion resistance. Suitable for PCB mounting, it supports operating temperatures from -40°C to +105°C and handles up to 8A at 250V. Available in multiple sizes, this connector guarantees reliable, high-quality connections with long-lasting durability, making it an essential component for industrial, automation, and manufacturing projects. Buy online now for quick, trusted delivery.
Order your Multicomp 96-144-26 LLRA series 2.54mm shrouded header today and ensure durable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC25416LLRADIP?
You can click on the BUY or RFQ button to purchase MC25416LLRADIP from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25416LLRADIP?
You can download the MC25416LLRADIP datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC25416LLRADIP?
MULTICOMP-PRO
