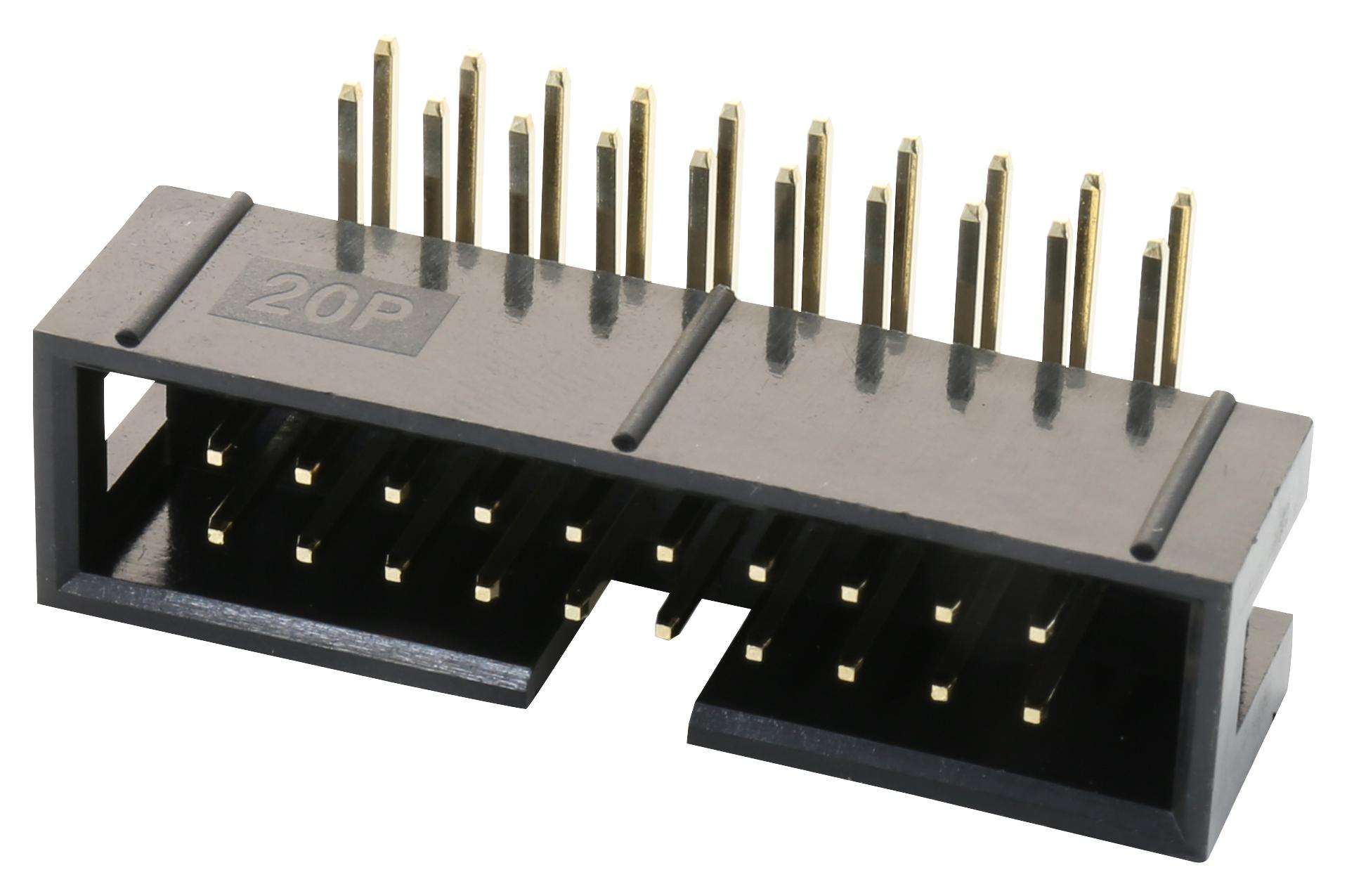

MULTICOMP PRO MC2542400RADIP Right-Angle Box Header
This 2.54mm pitch right-angle box header features dual rows and through-hole mounting, ideal for reliable connections on printed circuit boards. Made from UL94V-0 PBT plastic with gold-plated brass contacts, it offers excellent electrical conductivity, corrosion resistance, and high durability. Designed to accommodate multiple pin counts from 6 to 64, it supports current ratings up to 8AAC/DC, voltage ratings of 250V AC/DC, and withstands voltages of 600V AC for one minute. Operating temperature ranges from -40°C to +105°C, ensuring performance in demanding environments. Suitable for industrial, automation, and electronic assembly applications.
MULTICOMP PRO MC2542400RADIP Right-Angle Box Header Specifications:
- Current Rating: 8AAC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MO Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT (UL94V-0) plastic, Brass contacts
- Finish: Gold Plated
- Connector Type: Double Row, Through Hole, Right Angle
- Pin Count: 6 to 64 positions
- Dimensions: Varies by pin count, e.g., 15.28mm to 88.94mm length
- RoHS Compliant
- Standard Colors: Black
Buy the Multicomp 2.54mm Box Header – Reliable PCB Connectors for Industrial Applications
Purchase the high-quality 2.54mm pitch right-angle box headers online to ensure reliable and secure PCB connections. Designed with durable gold-plated contacts and supported by UL94V-0 PBT plastic, these headers are suitable for demanding industrial environments. Available in various pin configurations from 6 to 64 positions, they support current ratings up to 8AAC/DC and voltage ratings of 250V AC/DC. These connectors operate effectively within a temperature range of -40°C to +105°C, ensuring dependable performance across a wide range of electronic and automation applications.
Get Multicomp 2.54mm Box Header today—built for precision and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2542400RADIP?
You can click on the BUY or RFQ button to purchase MC2542400RADIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2542400RADIP?
You can download the MC2542400RADIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2542400RADIP?
MULTICOMP PRO
