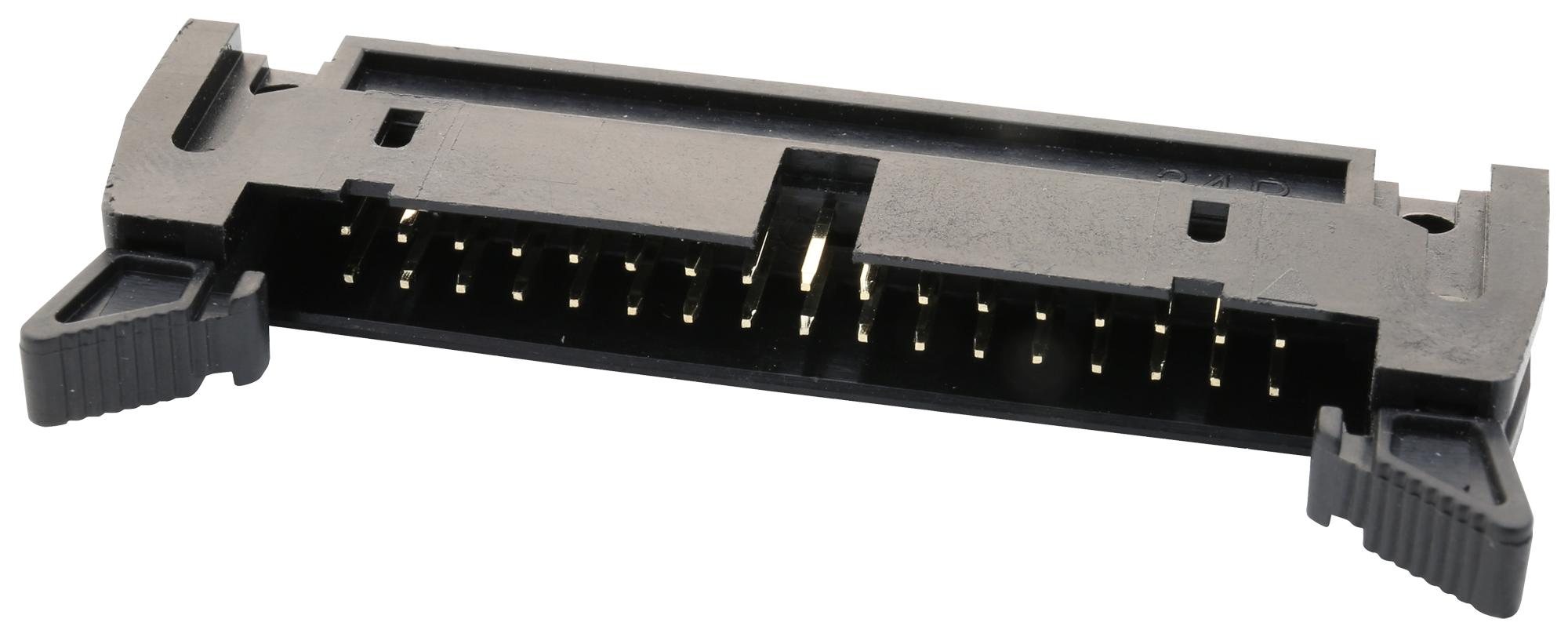

MULTICOMP PRO MC25434SLSTDIP 2.54mm shrouded header
This 2.54mm shrouded header with ejector features a double row, vertical through hole design for reliable PCB connections. Available in short and long ejector variants, it supports 10 to 64 positions, making it suitable for complex wiring and modular electronic assemblies. Crafted from UL94V-0 rated PBT plastic with gold-plated copper contacts, it ensures excellent electrical performance, durability, and corrosion resistance. The header is RoHS compliant, rated for 250V AC/DC, with insulation resistance of 1000MQ min., contact resistance of 20mQ max., and withstands voltage of 600V AC for one minute within a temperature range of -40°C to +105°C. Its compact dimensions facilitate precise, robust connection in industrial and electronics applications.
MULTICOMP PRO MC25434SLSTDIP 2.54mm shrouded header Specifications:
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy with Gold Plating
- Voltage Rating: 250V AC/DC
- Current Rating: 3AAC/DC
- Contact Resistance: 20mQ Max.
- Insulation Resistance: 1000MQ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Dimensions vary by model, supporting 10 to 64 positions, with specific sizes for each. For example, a 10-position header measures 32.2mm in length and 10.16mm in width, while a 64-position measures 100.78mm by 78.74mm.
- RoHS Compliant
Buy the Multicomp Series 2.54mm Shrouded Header: MC25434SLSTDIP
Order the 2.54mm shrouded header with ejector from Multicomp Pro online today. Designed for professional circuit assembly, it features gold-plated contacts for corrosion resistance, a robust PBT plastic body rated UL94V-0 for safety, and supports up to 64 positions. Its versatile through-hole design ensures secure connection in high-reliability industrial and electronic applications. With RoHS compliance, high voltage and current ratings, and excellent insulation resistance, this component guarantees performance, durability, and ease of installation for your next project.
Get Multicomp MC25434SLSTDIP today—built for reliable PCB connections with durable gold-plated contacts and versatile via ejector design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25434SLSTDIP?
You can click on the BUY or RFQ button to purchase MC25434SLSTDIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25434SLSTDIP?
You can download the MC25434SLSTDIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25434SLSTDIP?
MULTICOMP PRO
