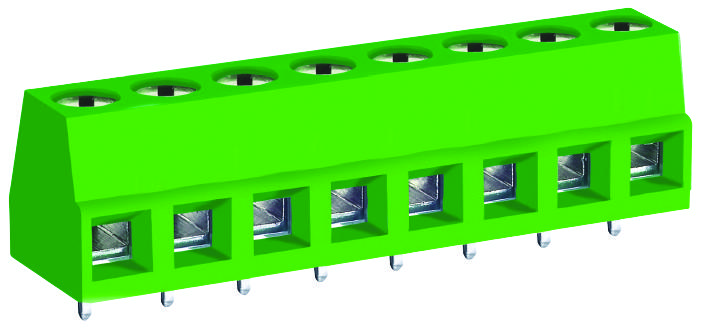

MULTICOMP PRO MCTB31C12 PCB Terminal Block
The PCB terminal block MCTB31C12 by Multicomp Pro is a reliable 26-12AWG modular connector designed for secure connections in various electronic applications. Crafted from durable PA66 housing material with steel cage clamp contact and tin-plated brass screws, it measures 75mm with a 5mm pitch, supporting up to 216A current at 300V. Suitable for wire sizes from 12AWG to 26AWG, it withstands operating temperatures from -40°C to +105°C. Ideal for PCB layouts requiring high load capacity and secure terminal connections.
MULTICOMP PRO MCTB31C12 PCB Terminal Block Specifications:
- Pitch: 5mm
- Poles: 2 to 24
- Housing Material: PA66
- Cage Clamp: Steel
- Contact: Brass, Tin Plated
- Screw Thread: M2.6, Steel, Zinc Plated
- Wire Size: 12AWG to 26AWG
- PCB Hole Diameter: 1.5mm
- Tightening Torque, Max: 7Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 216A
- Nominal Cross Section: 24mm²
- Maximum Load Current: 216A
- Insulating Material: PA
- Nominal Voltage: 300V
Buy the Multicomp Series PCB Terminal Block: MCTB31C12
Enhance your electronics assembly with the reliable PCB terminal block MCTB31C12 from Multicomp Pro. Designed for secure connections on PCB layouts, supporting wire sizes from 12 to 26AWG with a current rating of 216A at 300V, it features a durable PA66 housing, zinc plated steel cage clamp, and tin-plated brass screws. Measuring 75mm with a 5mm pitch, this connector offers easy installation and dependable performance from -40°C to +105°C, making it an essential component for professional electronic projects and industrial applications.
Order your Multicomp Series PCB Terminal Block MCTB31C12 today and ensure secure, high-current connections for your next electronic project.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTB31C12?
You can click on the BUY or RFQ button to purchase MCTB31C12 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTB31C12?
You can download the MCTB31C12 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTB31C12?
MULTICOMP PRO
