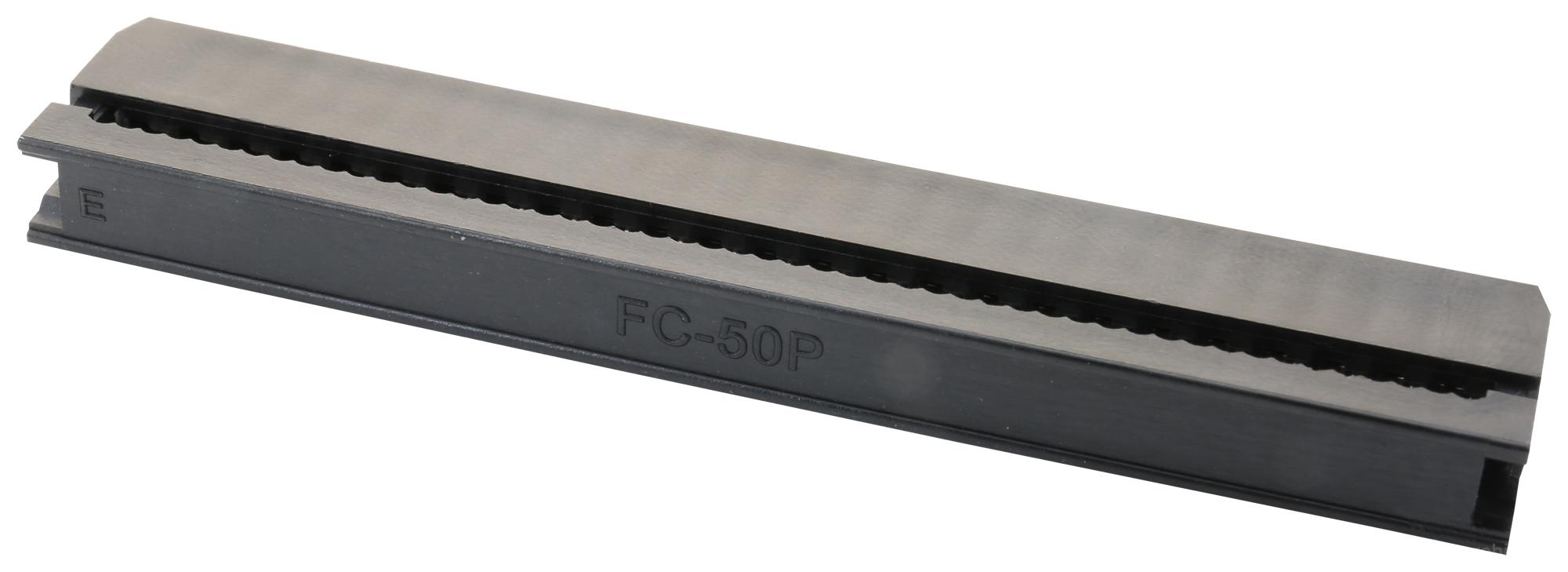

MULTICOMP PRO MC254500000IDC Flat Cable IDC Socket
The 2.54mm Flat Cable IDC Socket series offers reliable, high-quality connectors suitable for various electronic and industrial applications. Featuring multiple positions from 6 to 64, these sockets are designed for easy insertion and secure connections with flat ribbon cables. Constructed from UL94V-0 rated PBT insulators and copper alloy contacts with selective gold plating, they provide excellent electrical conductivity and resistance to environmental factors. These connectors support currents up to 1A DC/AC and voltages up to 30V, with temperature ratings from -40°C to +105°C, ensuring durability and safety in demanding conditions.
MULTICOMP PRO MC254500000IDC Flat Cable IDC Socket Specifications:
- Pitch: 2.54mm
- Positions: 6 to 64 positions variations available
- Current Rating: 1A DC/AC
- Voltage Rating: 30V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MO Min
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT (UL94V-0), Copper Alloy
- Finish: Selective Gold Plated
- Standard Colour: Black
Buy the Multicomp Series IDC Flat Cable Socket: MC254500000IDC
Order the Flat Cable IDC Socket in the 2.54mm pitch series today for secure and efficient cable management in electronic projects. These durable connectors feature a range of options from 6 to 64 positions, constructed with UL94V-0 rated PBT insulation and copper alloy contacts with gold plating for enhanced conductivity and corrosion resistance. Capable of handling up to 1A current and 30V voltage withstanding, they operate safely within -40°C to +105°C, making them ideal for industrial and automation applications. Easy to install and RoHS compliant, these sockets ensure a reliable connection every time.
Buy Multicomp Series IDC Flat Cable Socket MC254500000IDC now and experience unmatched reliability and performance for your electronic connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC254500000IDC?
You can click on the BUY or RFQ button to purchase MC254500000IDC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC254500000IDC?
You can download the MC254500000IDC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC254500000IDC?
MULTICOMP PRO
