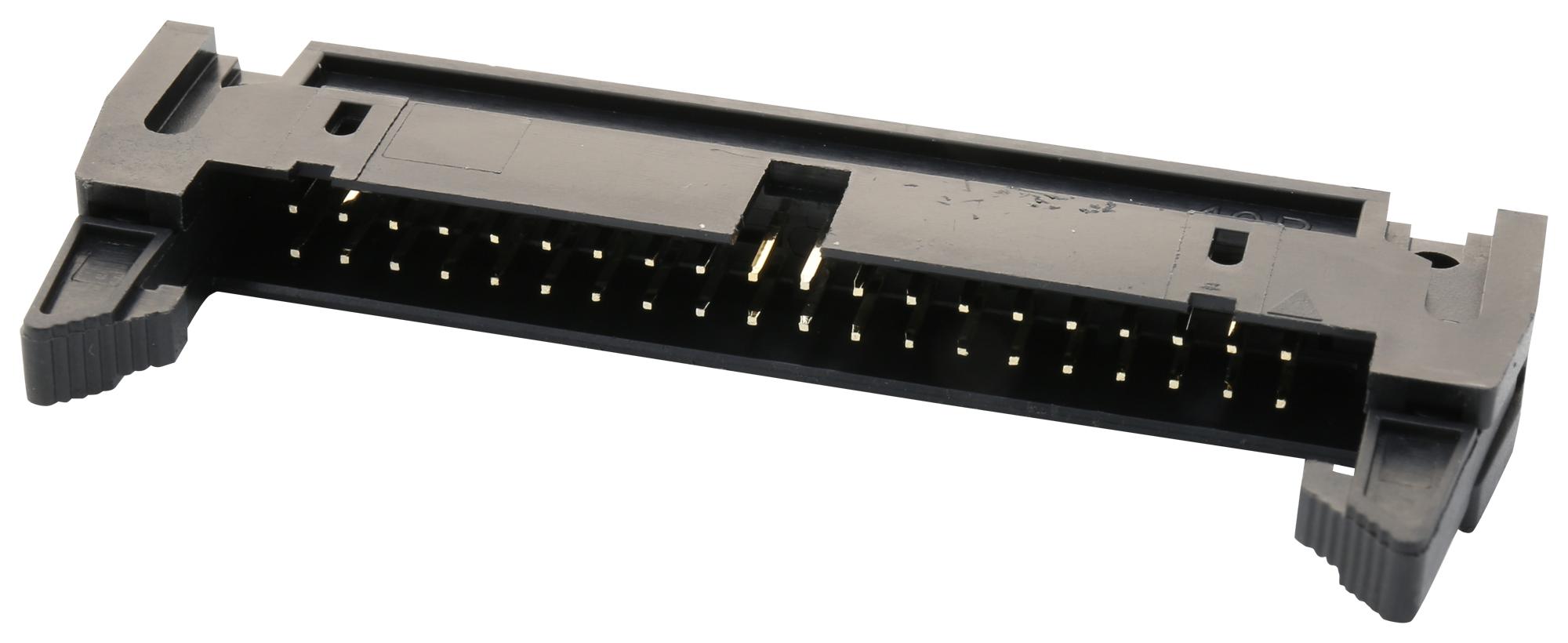

MULTICOMP PRO MC25450SLSTDIP Shrouded Header
The 2.54mm shrouded header with ejector is a double row, vertical through hole connector suitable for industrial applications. Designed with a black UL94V-0 PBT plastic body, it features gold-plated copper alloy contacts, rated for 250V AC/DC and 3AAC/DC current. This high-quality header provides excellent insulation resistance of 1000MΩ and contact resistance of 20mΩ max, with a withstand voltage of 600V AC for one minute. Operating efficiently between -40°C and +105°C, it ensures durability and reliable connections in demanding environments.
MULTICOMP PRO MC25450SLSTDIP Shrouded Header Specifications:
- Current Rating: 3AAC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT (UL94V-0), Copper Alloy
- Contact Plating: Gold Plated
- Color: Black
- Type: Double Row, Through Hole, Vertical, Short Ejector
- Number of Positions: 10 to 64 positions available
- Dimensions: Varies by model, e.g., 32.2mm to 100.78mm in length
Buy the Multicomp Pro MC25450SLSTDIP – Reliable Shrouded Header for Industrial Applications
Order the Multicomp Pro shrouded header featuring part number MC25450SLSTDIP today. Designed with a robust 2.54mm pitch, it offers reliable, high-quality connections ideal for industrial circuit boards. With gold-plated copper contacts rated at 250V AC/DC, this connector ensures excellent electrical performance and corrosion resistance. Its durable black UL94V-0 PBT plastic body withstands harsh environments, operating efficiently from -40°C to +105°C. Perfect for automation, industrial control systems, and electronic equipment, it’s a dependable choice for your projects.
Get Multicomp Pro MC25450SLSTDIP today—built for durable industrial circuit connections with high current rating and excellent insulation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25450SLSTDIP?
You can click on the BUY or RFQ button to purchase MC25450SLSTDIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25450SLSTDIP?
You can download the MC25450SLSTDIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25450SLSTDIP?
MULTICOMP PRO
