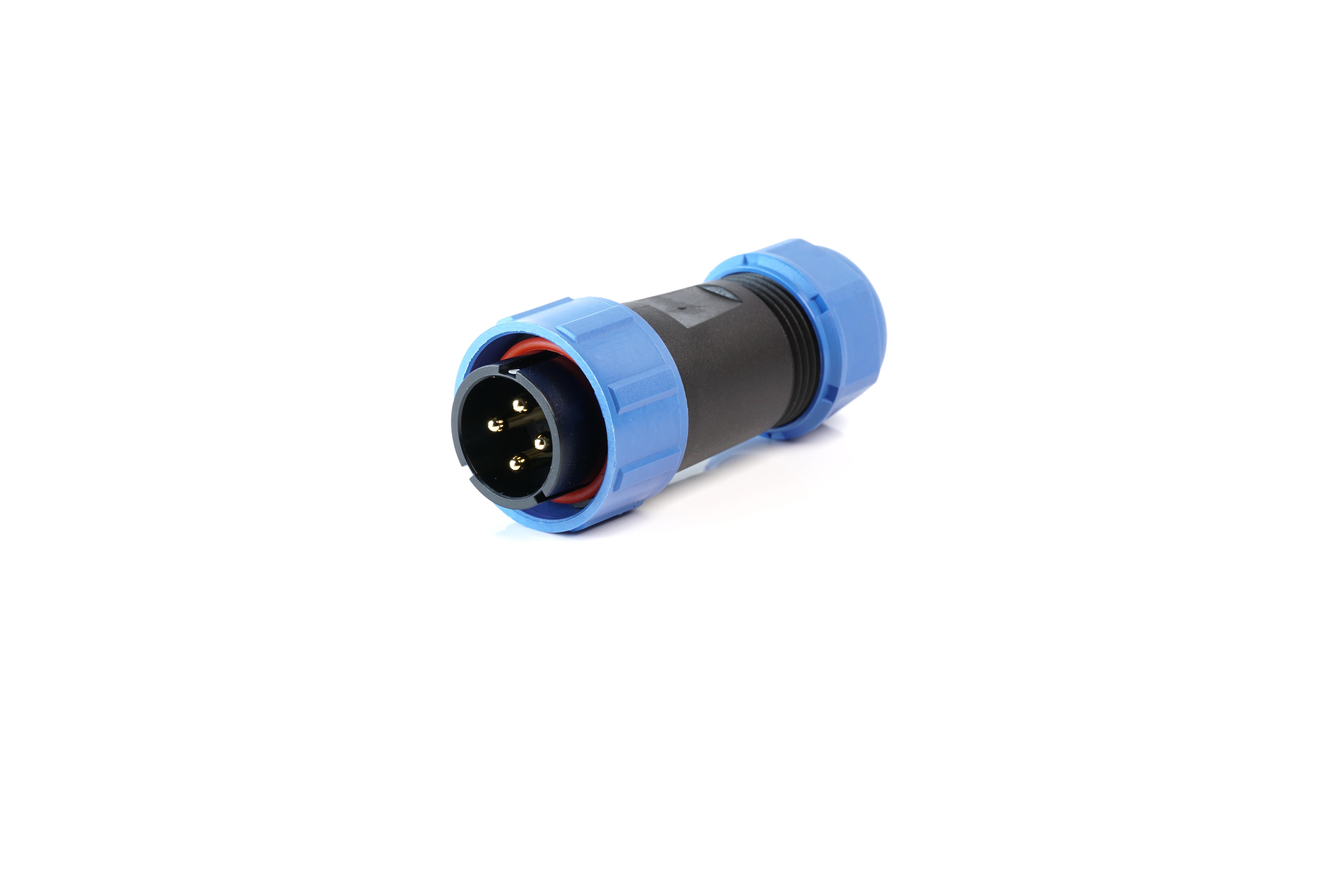

MULTICOMP PRO MP002662 IP67 Circular Connectors
The MP-T21 IP67 series features durable, weatherproof connectors with bayonet couplings for fast, secure connections in industrial, automation, and outdoor environments. Available in cable, panel, and inline configurations, these connectors are rated IP67 for dust and water resistance, making them suitable for outdoor and harsh indoor conditions. They support solder and screw terminations with a maximum of 12 contacts, in various pole counts including 2, 3, 4, 5, 7, 9, and 12. The series includes protective caps, robust nylon shells, and brass contacts with gold plating for reliable performance in demanding applications such as automation, medical devices, security, and test equipment.
MULTICOMP PRO MP002662 IP67 Circular Connectors Specifications:
- Material: Nylon66 shell, brass contacts with gold plating
- Ingress Protection: IP67
- Connection Type: Solder and screw termination
- Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ
- Rated Current: 30 A (up to 3 mm contact diameter), 15 A (2 mm), 5 A (1 mm)
- Rated Voltage: 400 V to 500 V depending on configuration
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Mating Cycles: 500
- Dimensions: 21 mm mounting hole, outer diameter up to 12 mm
- Certifications: RoHS compliant
- Fire Resistance: V-0 rating
- Insert Material: PPS, Max. Temperature 260°C
- Coupling: Bayonet
- Protection Cap: Yes, IP67-rated
Buy the Multicomp Series T21 IP67 Connectors: MP002662
Enhance your industrial and outdoor projects with our IP67-rated circular connectors featuring bayonet coupling for quick connection and disconnection. The series offers multiple configurations with 2 to 12 contacts, supporting solder and screw terminations. Constructed from durable nylon and brass with gold plating, these connectors resist dust, water, and harsh conditions—perfect for automation, medical, security, and measurement systems. Easily install with a 21mm mounting hole. Available online now for fast, reliable delivery that ensures your equipment's safety and performance.
Order your Multicomp Series T21 IP67 connector today and ensure your projects are protected with reliable, weatherproof connections designed for harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002662?
You can click on the BUY or RFQ button to purchase MP002662 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002662?
You can download the MP002662 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002662?
MULTICOMP PRO
