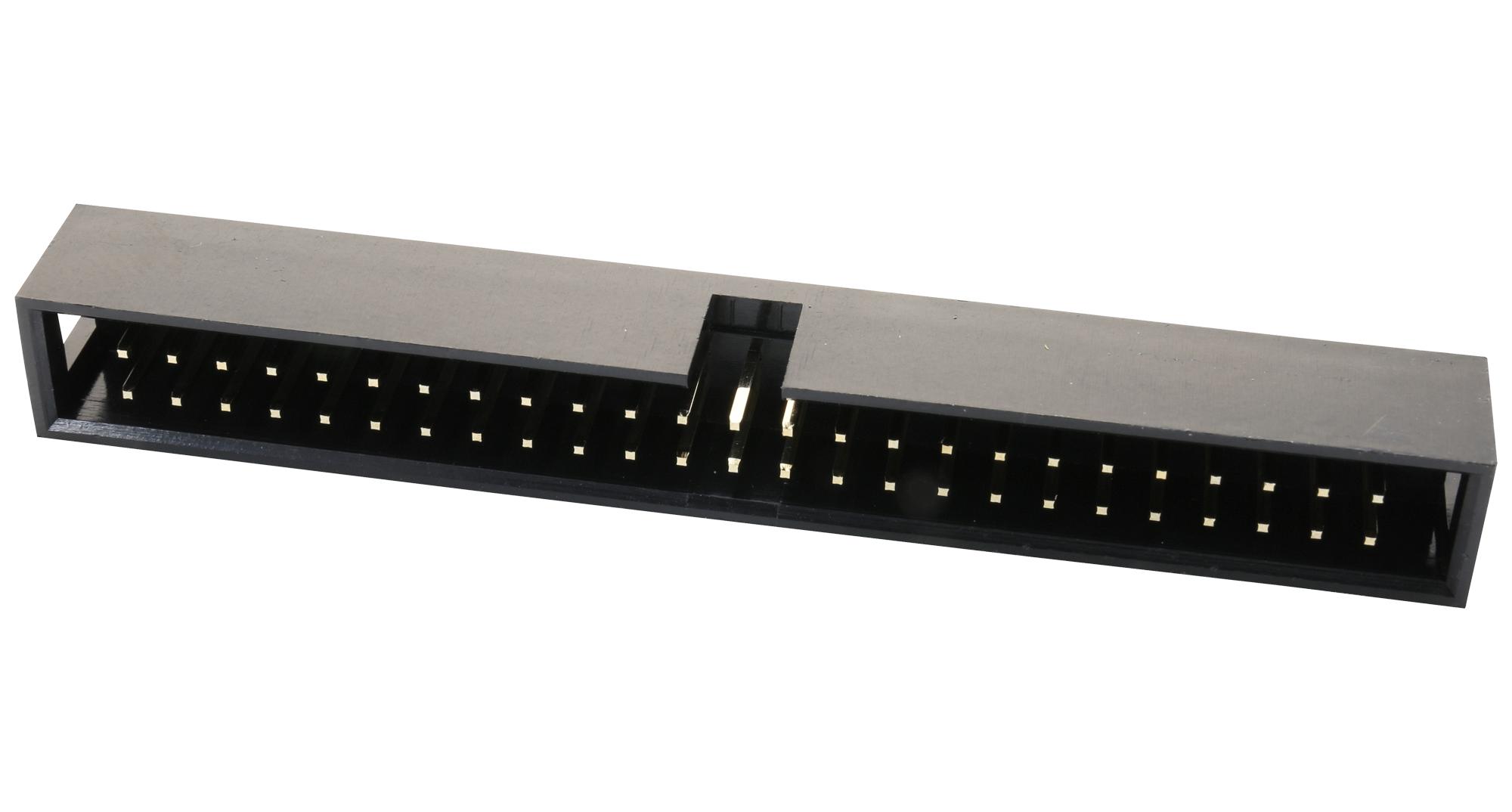

MULTICOMP PRO MC2546000STDIP Box Header
This 2.54mm box header offers reliable connection with a double row, through hole design suitable for various electronic applications. Made with high-quality copper alloy contacts, gold-plated for superior conductivity and corrosion resistance, it supports a current rating of 8A AC/DC and a voltage rating of 250V AC/DC. The insulator is PBT with UL94V-0 fire safety rating, colored black. It withstands voltages up to 600V AC for one minute and operates effectively in temperatures from -40°C to +105°C. Its precise dimensions facilitate easy integration into PCB layouts for secure connections.
MULTICOMP PRO MC2546000STDIP Box Header Specifications:
- Dimensions vary based on number of positions, from 15.28mm to 88.94mm in length
- Contact Material: Copper Alloy with Gold Plating
- Insulator Material: PBT (UL94V-0)
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Termination Style: Through Hole
- Color: Black
- Row: Double
- Number of Positions: ranges from 6 to 64
- Dimensional Data: varies per configuration, e.g., length 15.28mm to 88.94mm, width 5.08mm to 78.74mm
- Certifications: RoHS Compliant
Buy the Buy multicomp Pro Box Header Part Number MC2546000STDIP Online
Purchase the multicomp Pro Box Header MC2546000STDIP online today for high-quality, reliable connections in your electronic projects. With a double row, through hole design, gold-plated copper contacts, and RoHS compliance, it ensures optimal conductivity and durability. Suitable for PCB mounting with a current rating of 8A and voltage support of 250V. Its wide range of configurations from 6 to 64 positions makes it versatile for various applications. Easy to install and built to withstand temperature ranges from -40°C to +105°C, this connector guarantees secure and stable electrical connections for your devices, ensuring consistent performance and long service life.
Get multicomp Pro MC2546000STDIP today—designed for reliable PCB connections and long-lasting durability.
