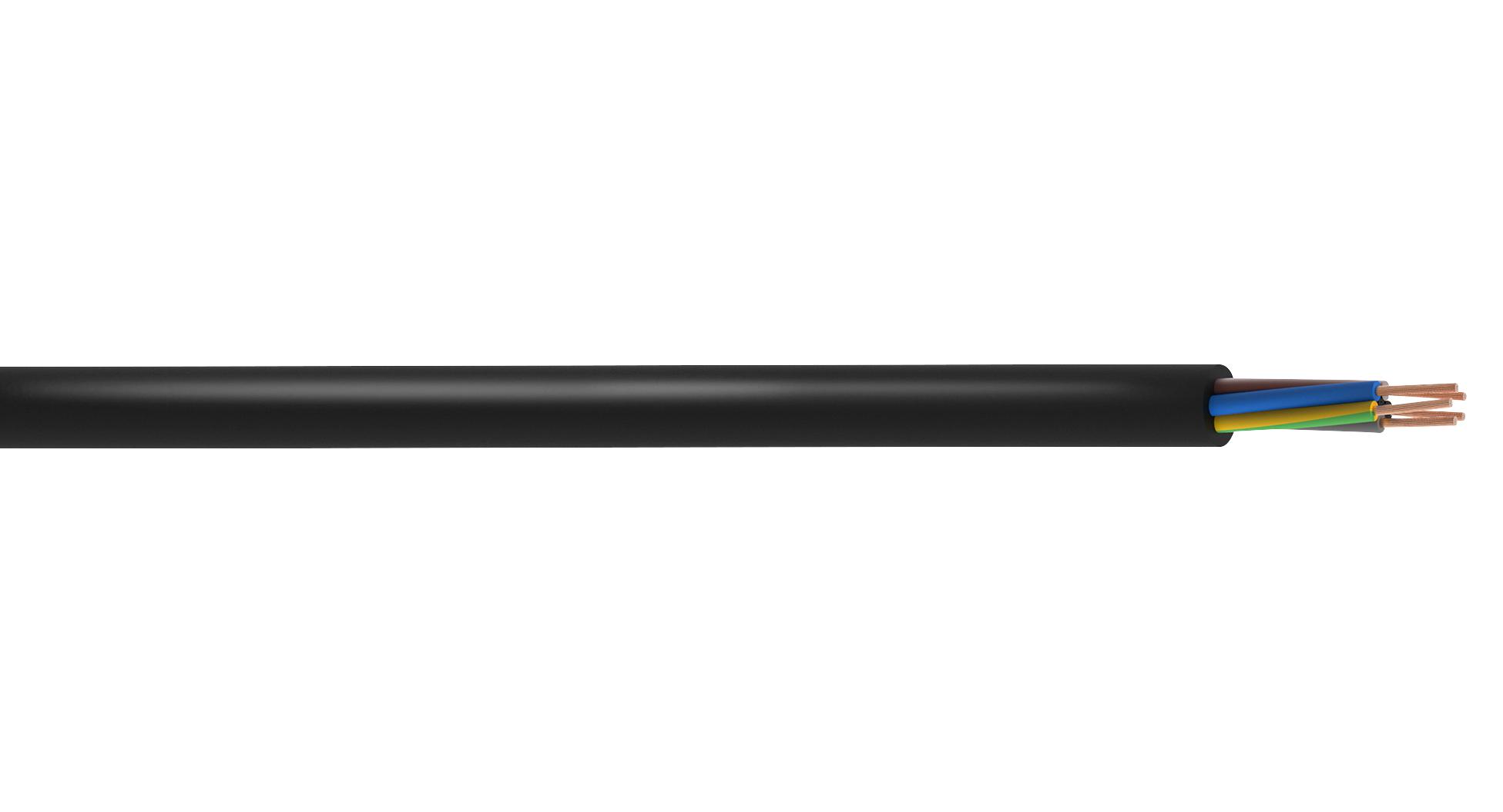

MULTICOMP PRO PP002145 Flexible Rubber Cable
This flexible rubber cable features high weather, oil, and mechanical stress resistance, suitable for handling equipment, mobile power, and severe industrial environments. It complies with BS EN 50525-2-21 standards, has a voltage rating of 450/750V, and operates within -30°C to +60°C for fixed installations and -15°C to +60°C for flexed conditions. Constructed with copper conductors, Ethylene Propylene Rubber insulation, and Polychloroprene sheath, available in various core configurations, rated for demanding outdoor and industrial applications, with specified minimum bending radii and core identification colors.
MULTICOMP PRO PP002145 Flexible Rubber Cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: Fixed: -30°C to +60°C, Flexed: -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Core Identification: 2 core: Blue, Brown; 3 core: Green/Yellow, Blue, Brown; 4 core: Green/Yellow, Brown, Black, Grey; 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Conductor Type: Class 5 Flexible copper to BS EN 60228
- Insulation Material: Ethylene Propylene Rubber (EPR) Type El4 BS EN 50363
- Sheath Material: Polychloroprene (PCP) Type EM2 BS EN 50363
- Construction Standards: BS EN 50525-2-21, BS EN 60811-2-1, BS EN/IEC 60332-1-2
- Cross-sectional Sizes and Weights vary per part number, e.g., 1mm² to 6mm² with specific dimensions and weights listed in datasheets
Buy the Multicomp Series Flexible Rubber Cable: PP002145
Order the flexible rubber cable today for reliable performance in industrial, outdoor, and severe environments. Designed with high-quality copper conductors, Ethylene Propylene Rubber insulation, and Polychloroprene sheath, this cable offers excellent weather resistance, thermal endurance, and mechanical flexibility. With various core configurations and compliance to BS EN standards, it ensures safety and durability for handling equipment, mobile power supplies, and water treatment facilities. Purchase online now for fast delivery and expert support.
Get Multicomp Series PP002145 today—built for durability and flexibility in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002145?
You can click on the BUY or RFQ button to purchase PP002145 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002145?
You can download the PP002145 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002145?
MULTICOMP PRO
