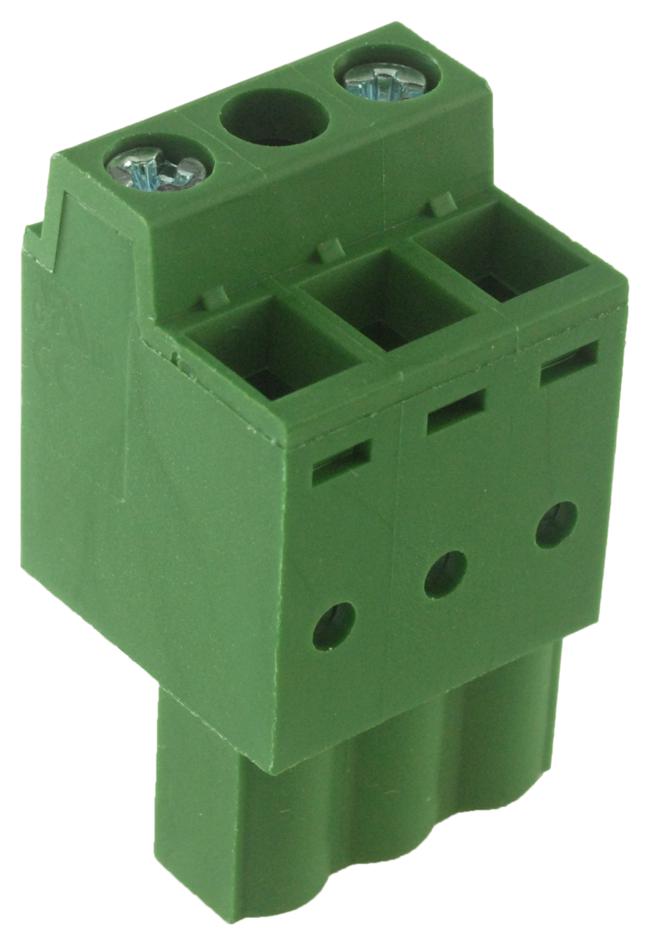

MULTICOMP PRO MC31050803 Pluggable Terminal Block
The MC310-50803 is a 3-pole Euro-style pluggable terminal block with a 180-degree entry, designed for high-reliability industrial interconnections. This series offers flexible, easy modifications and installation with screw connections supporting conductors up to 12 AWG. Constructed with polyamide 66 insulating bodies and zinc-plated steel components, it withstands operating temperatures from -40°C to +105°C. Rated for 16 Amps at AC300V, it features 5.08mm pitch, wire range 14-24 AWG, and insulation withstands voltage of AC2000V. An excellent choice for robust, versatile electrical connections.
MULTICOMP PRO MC31050803 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amp AC300V
- Insulation withstands Voltage: AC2000V min.
- Insulation Resistance: >2000MO DC200V
- Operation Temperature: -40°C to +105°C
- Wire Strip Length: 10mm
- Wire Range: 14 AWG to 24 AWG
- Screw Torque: 7Ib-inch
- Pitch: 5.08mm (0.2 Inch)
- Material: Polyamide 66 insulating body
- Cover Material: UL94V-0
- Contact Material: Phosphor bronze, tin plated
- Wall Thickness: 3mm (approximate)
- Poles: 3
- Dimensions: Length 15.24 mm, width 6 mm
Buy the Buy Multicomp Pluggable Terminal Block Part Number MC310-50803 Online
Secure your electrical connections with the Multicomp Pluggable Terminal Block, Part Number MC310-50803. Designed for high-reliability industrial use, it supports wire ranges from 14 to 24 AWG, rated at 16A and 300V. The 5.08mm pitch and insulated polyamide body ensure safety and durability, operating from -40°C to +105°C. Easy to install with screw connections, this terminal block offers a flexible and robust solution for automation, control panels, and wiring systems, simplifying maintenance and upgrades. Order now online for fast delivery and seamless integration into your project.
Order your Multicomp Series MC310-50803 pluggable terminal block today and ensure high-reliability connections for your industrial projects.
