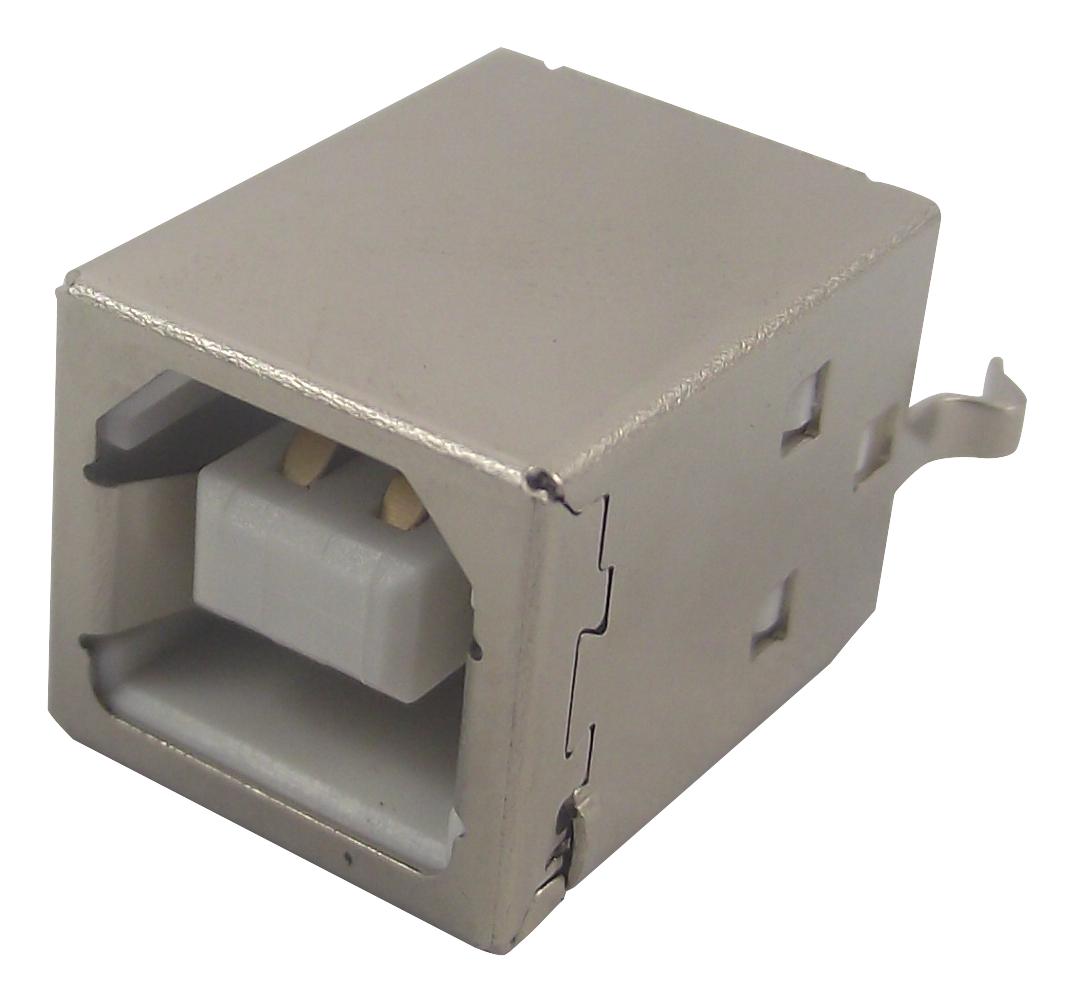

MULTICOMP PRO MC32597 USB Type B Socket
The USB Type B socket is a high-quality, RoHS compliant component designed for reliable data transfer and power supply in electronic devices. Crafted with a durable copper alloy shell that is nickel plated, it features gold-plated contacts for optimal conductivity and corrosion resistance. The insulator is made of UL94V-0 rated PBT, ensuring safety and durability. Operating within a temperature range of 20°C to +60°C, it supports a current rating of 1.5 Amps and a voltage rating of 30V AC/DC. The socket is suitable for through-hole mounting, offering 4 connection ways for versatile integration into electronic assemblies. Its dimensions are precisely configured for easy installation, ensuring secure and stable connections in various electronic applications.
MULTICOMP PRO MC32597 USB Type B Socket Specifications:
- Current Rating: 1.5 Amps
- Voltage Rating: 30V AC/DC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: > 1000MQ Min
- Withstanding Voltage: 500V AC/Minute
- Operating Temperature Range: 20°C to +60°C
- Material: Insulator - PBT (UL94V-0), Contact - Phosphor Bronze, Shell - Copper Alloy, Nickel Plated
- Contact Plating: Gold on Contact area, Tin on Solder Tail
- Dimensions: 21.60 mm x 16.25 mm x 8.45 mm approx.
- Mounting Type: Through Hole, Vertical 4-way connection
Buy the Multicomp Series USB Type B Connector: MC32597
Purchase the Multicomp USB Type B socket online today to ensure secure and stable connections in your electronic projects. Designed for durability, high current capacity, and RoHS compliance, this component features gold-plated contacts for optimal conductivity, a sturdy copper alloy shell, and a reliable insulator made of UL94V-0 rated PBT. Its precise dimensions and through-hole mounting make installation straightforward. Ideal for electronic device manufacturing and repair, this socket guarantees superior performance and long-term reliability in various applications.
Get Multicomp MC32597 today—built for reliable data connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32597?
You can click on the BUY or RFQ button to purchase MC32597 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32597?
You can download the MC32597 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32597?
MULTICOMP PRO
