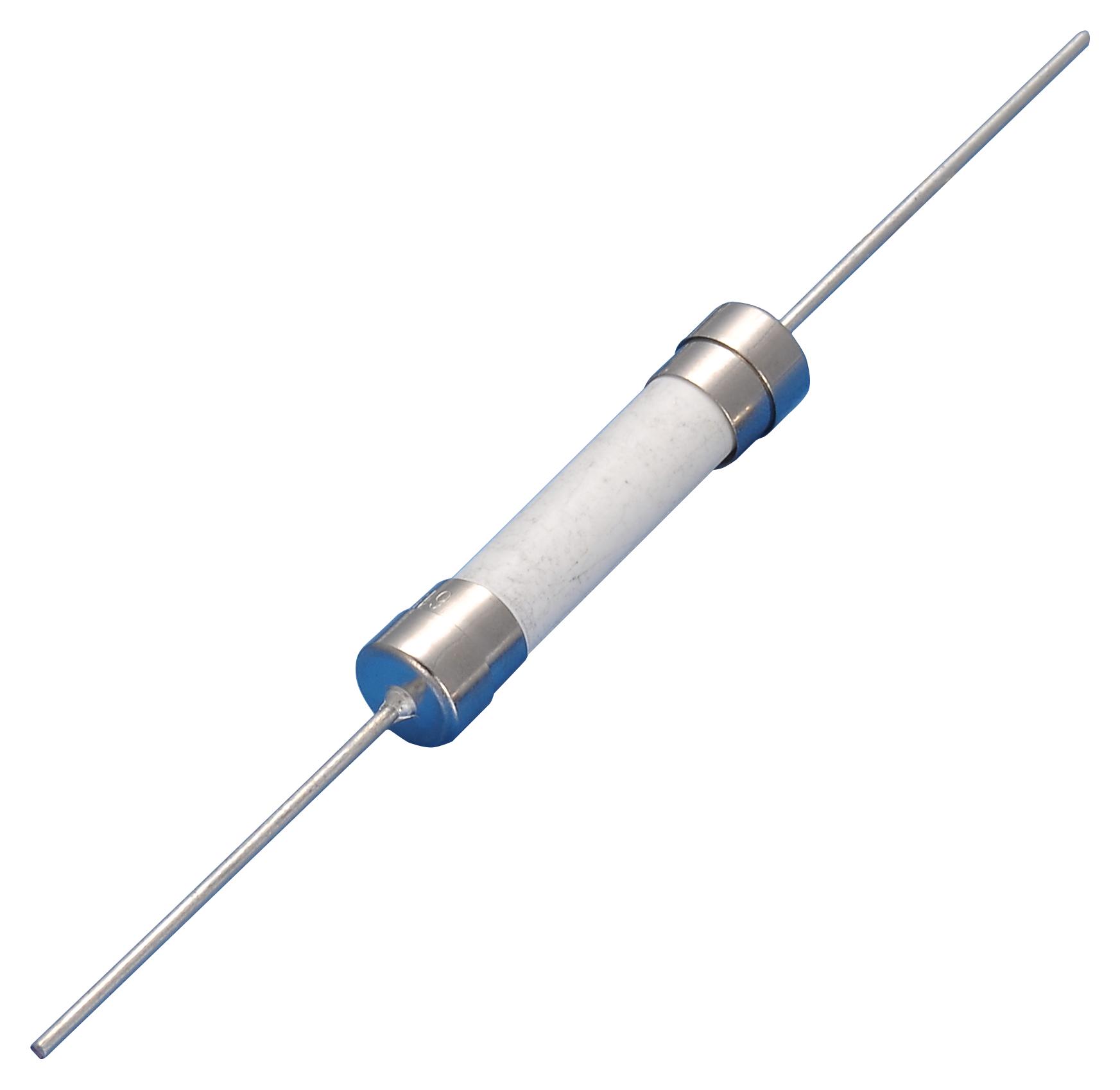

MULTICOMP PRO MP001617 Time-Lag Fuse
The Time-Lag Sub-Miniature Fuse provides reliable protection for printed circuit boards in a compact 6.35mm x 31.8mm size, featuring high interrupting ratings and voltage capacity. Constructed with a ceramic tube and copper caps, it offers excellent mounting and thermal characteristics, suitable for diverse industrial and electronic applications. Its time-delay design safeguards against temporary current surges, with RoHS compliance, lead-free, and halogen-free features. Tested thoroughly for cold resistance, this fuse is ideal for primary and secondary circuit protection with enhanced durability and high performance.
MULTICOMP PRO MP001617 Time-Lag Fuse Specifications:
- Dimensions: 6.35mm x 31.8mm
- Operating Temperature: -55°C to +125°C
- Storage Conditions: -55°C to +85°C
- Relative Humidity: 75% yearly average, max 30 days at 95%
- Vibration Resistance: 24 cycles at 15 min each, 10-60Hz at 0.75mm amplitude, 60-2000Hz at 10g acceleration
- Nominal Current: 1A
- Breaking Capacity: 10kA/125V AC, 100A/250V AC
- Material: Ceramic tube, copper caps, lead wires of tin-plated copper
- Soldering Parameters: Wave soldering max 260°C for <5 sec, hand soldering max 350°C for <3 sec
- Compliance: RoHS, UL-248-14, Halogen-free
Buy the Multicomp Series Time-Lag Fuse: MP001617
Purchase the reliable Time-Lag Fuse in a compact 6.35mm x 31.8mm size designed for circuit board protection. It features high interrupting ratings, ceramic and copper construction, RoHS compliance, and excellent thermal durability. Perfect for mitigating overcurrent in electronic devices, primary, and secondary applications, this fuse provides consistent performance with safe soldering parameters. Stock is available online for fast procurement, ensuring your project benefits from a high-performance, safety-tested component that guarantees protection and reliability in demanding electrical environments.
Get Multicomp Series Time-Lag Fuse MP001617 today—built for reliable circuit protection and high current interruption capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001617?
You can click on the BUY or RFQ button to purchase MP001617 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001617?
You can download the MP001617 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001617?
MULTICOMP PRO
