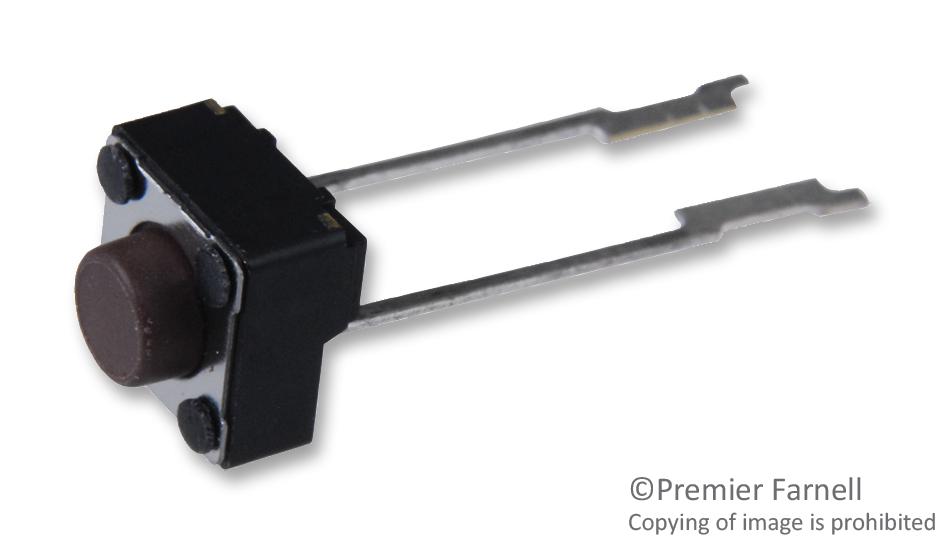

MULTICOMP PRO MC32881 Tactile Switch
The MC32881 is a durable through-hole tactile switch with a 160 gf operating force and single-pole single-throw contact configuration. It features a black nylon stem, phosphor bronze contact disc with silver cladding, and brass terminals with silver plating, making it suitable for industrial and electronic applications. The switch operates within -25°C to 70°C and supports 100,000 cycle lifespan, rated at 50mA and 12V DC. Its compact design and reliable construction ensure high performance in various environments, providing consistent tactile feedback. Suitable for control panels, instrumentation, and user interface designs, this switch combines durability and precision.
MULTICOMP PRO MC32881 Tactile Switch Specifications:
- Mechanical Stop Strength: Max 3kgf vertical static load for 15 sec
- Stroke: 0.25 +0.2mm/-0.1mm
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Life: 100,000 cycles
- Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ max, 100MΩ min at 500V DC
- Dielectric Strength: 250V AC for 1 minute
- Contact Arrangement: 1 pole 1 throw
- Cover Material: Steel
- Base Material: Nylon high-temp thermoplastic, Black
- Stem Material: Nylon high-temp thermoplastic, Black (100gf), Brown (160gf)
- Contact Disc: Phosphor bronze with silver cladding
- Terminal: Brass with silver plating
- Dimensions: Max H 4.3mm, Max I 0.5mm for MC32879; H 5mm, I 0.6mm for MC32880; H 4.3mm, I 0.5mm for MC32881
Buy the Buy multicomp tactile switch Part Number MC32881 Online
Purchase the multicomp tactile switch MC32881 online today for excellent durability and precise tactile response. This switch boasts a 160 gf force, silver-plated brass terminals, and a lifespan of 1,000,000 cycles. Operating efficiently between -25°C and 70°C, it is suitable for control panels, instrumentation, and various electronic devices. Easy to install, reliable, and built for high performance, this switch ensures seamless operation in demanding environments. Order now and benefit from fast delivery and trusted quality for your industrial or consumer electronics needs.
Buy multicomp MC32881 now and experience reliable tactile feedback and long-lasting performance for your electronic projects.
