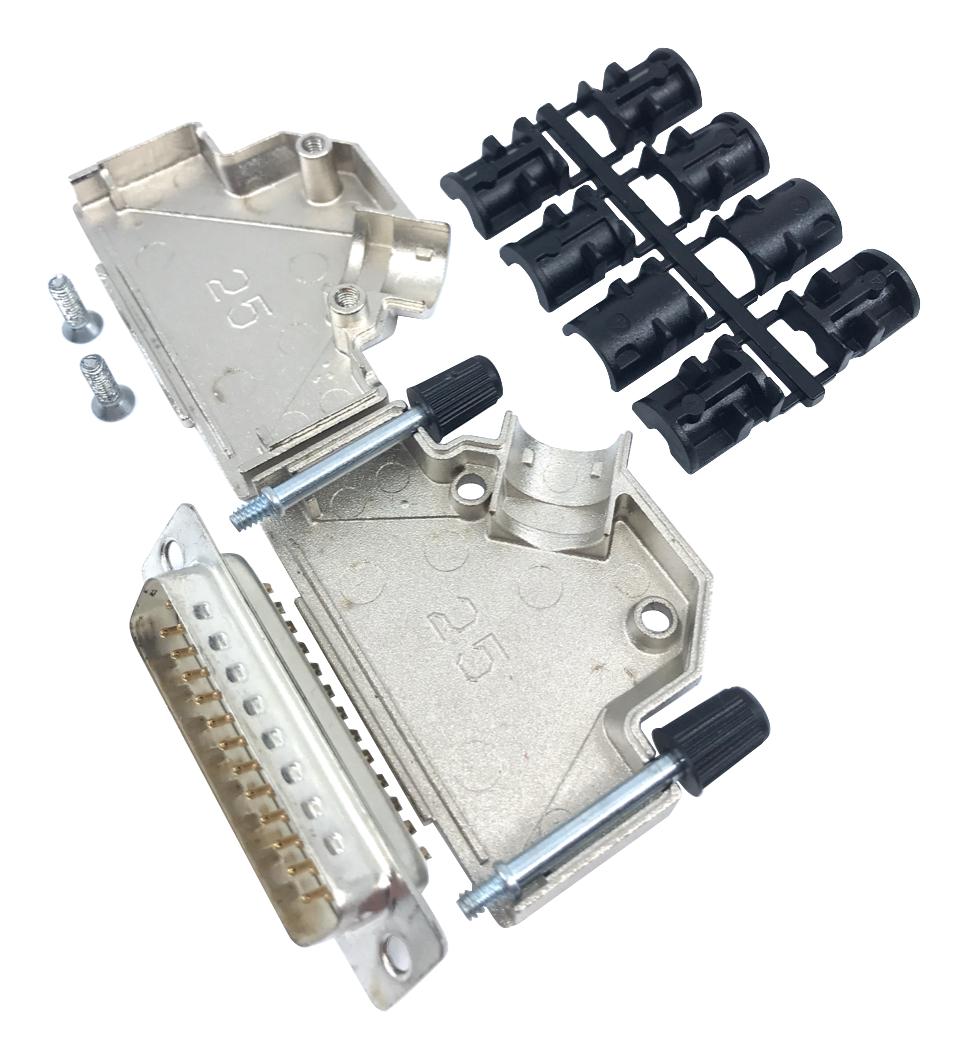

MULTICOMP PRO MP002039 D-Sub Connector
This angled D-Sub connector with backshell is made of zinc with nickel plating, designed for reliable data transmission and EMI interference minimization. It accepts round foil and braided cables with diameters from 13 to 23 mm, suitable for applications up to 105°C. The connector features long UNC 4-40 jackscrews for secure attachment, gold over nickel contact plating for durability, and a polycarbonate strain relief for cable safety. Compliant with VDE 0871, FCC 20780, and 89/336/EU standards, it ensures high performance with >40dB attenuation between 30 MHz and 1 GHz, and withstand voltage up to 1kV for 1 minute.
MULTICOMP PRO MP002039 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1 GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Material: Copper alloy
- Contact Plating: Gold over Nickel
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1kV for 1 min
Buy the Multicomp Series Angled D-Sub Connector: MP002039
Enhance your electronic assemblies with this high-quality angled D-Sub connector featuring a sturdy zinc shell, gold-plated contacts, and reliable strain relief. Designed for demanding environments, it offers excellent EMI shielding and robust locking mechanisms with long UNC 4-40 jackscrews. Suitable for cable diameters from 13 to 23 mm, it withstands temperatures up to 105°C and voltage pulses of 1kV. Perfect for industrial, communication, and test applications needing reliable, interference-resistant connections, easily ordered online today.
Order your Multicomp Series angled D-Sub connector MP002039 today and ensure secure, interference-free connections in your high-performance projects.
