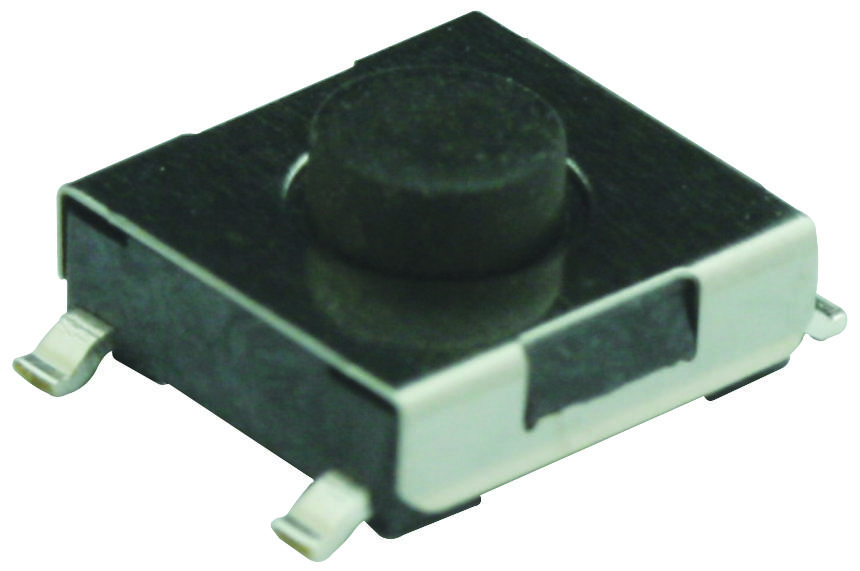

MULTICOMP PRO MC32882 Tactile Switch
The MC32882 is a durable surface-mount tactile switch with a liquid crystal polymer base and steel cover, featuring single-pole single-throw contacts and silver-coated phosphor bronze contacts. Designed for reliable motor drive and control applications, it withstands mechanical stress up to 3kgf and operates within a temperature range of -55°C to +105°C. The switch has an electrical rating of 50mA at 12V DC, an insulation resistance of 100MQ min. at 500V DC, and a lifespan of over 200,000 cycles. Its compact round button design ensures ease of installation and consistent tactile feedback for precise control.
MULTICOMP PRO MC32882 Tactile Switch Specifications:
- Material: Steel cover, LCP base and stem (black or brown)
- Contact Material: Phosphor bronze with silver cladding
- Terminal Material: Brass with silver plating
- Mechanical Stop Strength: Max 3kgf vertical static load for 15 seconds
- Stroke: 0.2540.2mm / -0.1mm
- Operation Temperature: -55°C to +105°C
- Storage Temperature: 1°C to +80°C
- Electrical Rating: 50mA at 12V DC
- Contact Resistance: 00mQ max.
- Insulation Resistance: 100MQ min. at 500V DC
- Electrical Life: 200000 cycles minimum
- Contact Arrangement: 1 pole 1 throw
- Part Numbers and Force: MC32882 with 100gf max, black; MC32884 with 160gf max, brown
- Dimensions: Refer to datasheet for precise millimetric and inch measurements
Buy the Multicomp Series Tactile Switch MC32882: 50mA 12V DC
Order the Multicomp tactile switch MC32882 now from authorized suppliers and ensure high-quality, reliable operation in your control and automation projects. Its robust design features a steel cover, LCP base, and silver-coated contacts, providing excellent durability and consistent tactile feedback. With a current rating of 50mA at 12V DC and over 200,000 life cycles, this switch offers long-term reliability. Browse our online store to get quick delivery and competitive pricing on this essential device for industrial and electronic control systems.
Buy Multicomp tactile switch MC32882 now and experience reliable tactile feedback and durable performance for your control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32882?
You can click on the BUY or RFQ button to purchase MC32882 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32882?
You can download the MC32882 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32882?
MULTICOMP PRO
