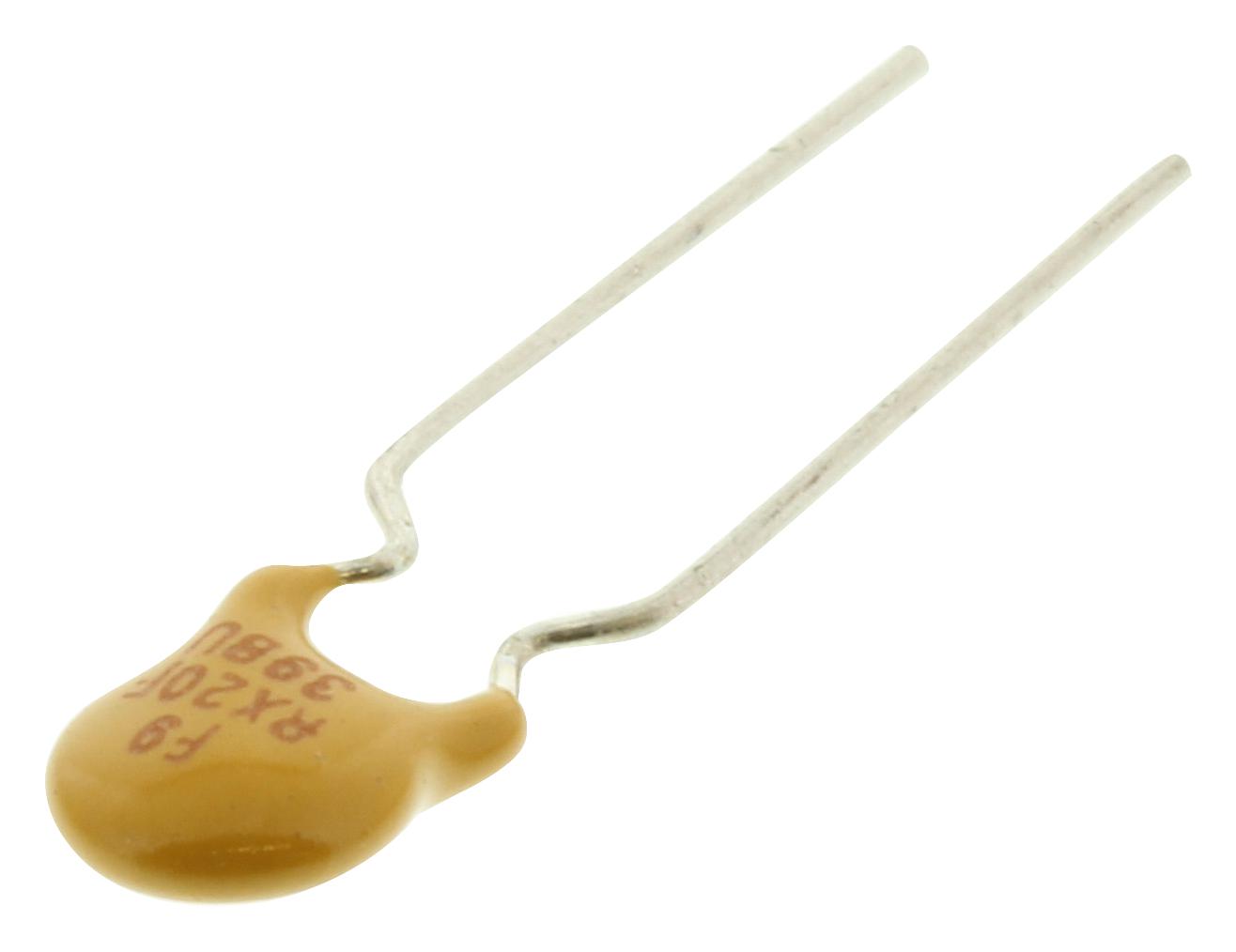

MULTICOMP PRO MC33171 PTC Resettable Fuse
The radial leaded PTC resettable fuse by Multicomp Pro offers reliable overcurrent protection for electronic and telecommunication devices. Designed with tin-plated copper leads and flame retardant epoxy coating, it supports operating currents from 100mA to 3.75A and withstands voltages up to 90V. Its solid-state design ensures low hold current and durability in harsh environments. Suitable for a wide range of electronic equipment, it features UL recognition and adheres to MIL-DTD-202 soldering standards, providing safe, efficient, and environmentally friendly circuit protection solutions.
MULTICOMP PRO MC33171 PTC Resettable Fuse Specifications:
- Lead Material: Tin-plated copper
- Soldering Characteristic: MIL-DTD-202, Method 208E
- Insulating Coating: Flame retardant epoxy
- Operating Current: 100mA to 3.75A
- Max. Voltage: Up to 90V
- Temperature Range: -40°C to 85°C
- Agency Recognition: UL File E345437
- Dimension: Diameter approximately 13 mm, lead lengths 74-97 mm depending on model
- Lead Size: 24 AWG or 20 AWG wire
- Peak Resistance: Max. 0.55 ohms at 23°C
- Maximum holding current for trip and durability in electronic circuits
- Supports applications in telecom, power supplies, and electronic protection
Buy the Multicomp Pro MC33171 – Reliable Overcurrent Protection for Industrial Applications
Order the Multicomp Pro PTC Resettable Fuse MC33171 online today and safeguard your electronic devices with a reliable, low-cost, and easy-to-use circuit protection solution. Designed for operating currents up to 3.75A and voltages up to 90V, this fuse features high-quality tin-plated copper leads, flame retardant epoxy insulation, and UL recognition. Its solid-state design ensures quick response to overcurrent conditions, making it ideal for telecom, power supplies, and electronic equipment in various industrial and consumer applications. Purchase online for fast delivery and pro-grade reliability.
Buy Multicomp Pro MC33171 now and experience unmatched reliability and performance in electronic circuit protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC33171?
You can click on the BUY or RFQ button to purchase MC33171 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC33171?
You can download the MC33171 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC33171?
MULTICOMP PRO
