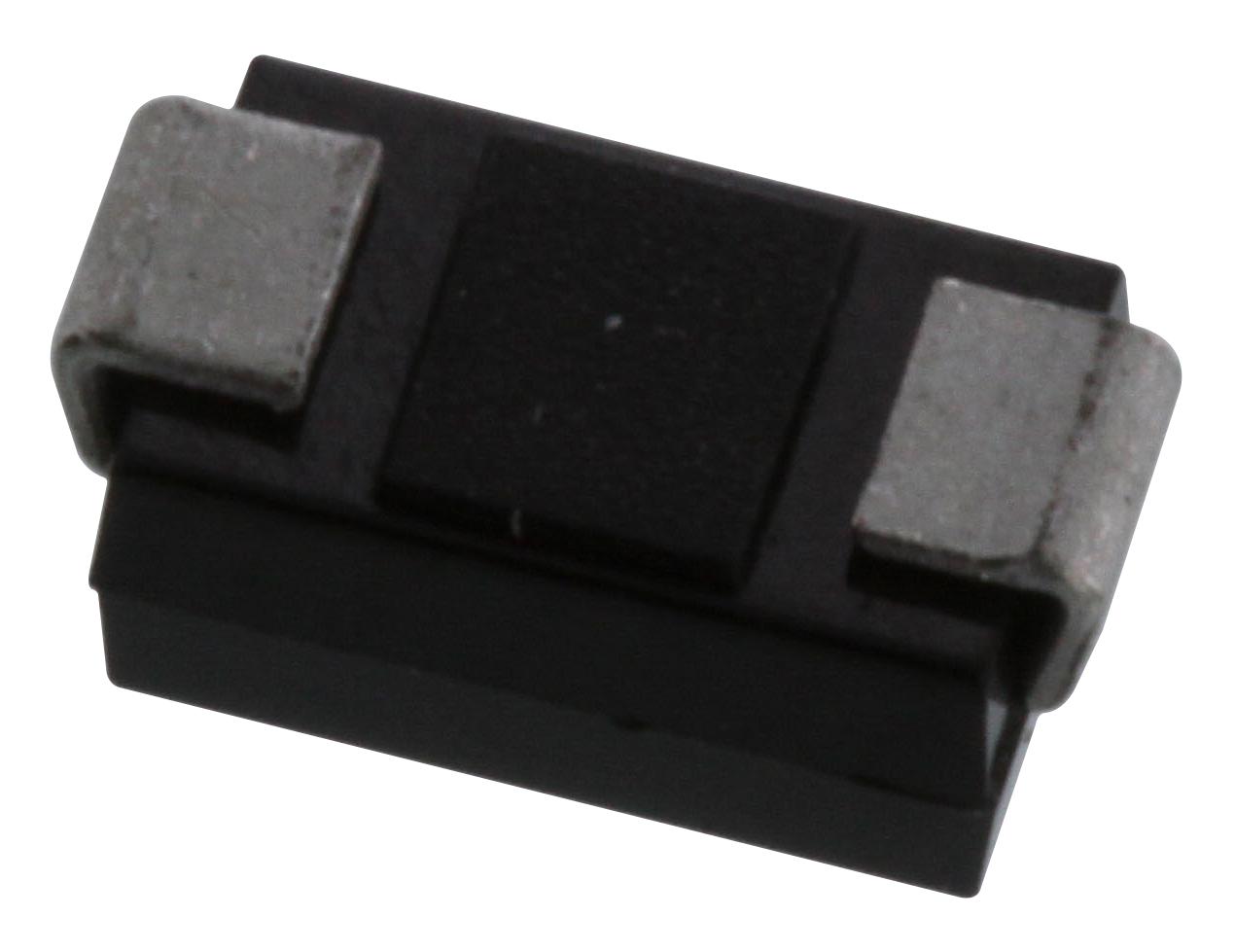

MULTICOMP PRO SMAJ33CA Transient Voltage Suppressor Diode
The SMAJ33CA transient voltage suppression diode protects electronic circuits from voltage spikes caused by surges and transients. Featuring a surface-mount design, it offers fast response times typically under 1.0ns for unidirectional units and less than 5.0ns for bidirectional types. With a maximum power dissipation of 400 watts and a maximum peak power rating of 400 watts, it supports a reverse breakdown voltage between 36.7V and 40.6V. Its UL 94V-0 plastic package ensures high safety standards, making it suitable for high-speed, compact electronic applications requiring reliable surge suppression and low leakage current.
MULTICOMP PRO SMAJ33CA Transient Voltage Suppressor Diode Specifications:
Maximum Power Dissipation: 400 Watts
Peak Power Dissipation at 25°C: 400 Watts
Maximum Surge Current: 40 Amps
Reverse Breakdown Voltage: 36.7V to 40.6V
Peak Reverse Voltage: 53.3V to 58.9V
Clamping Voltage at IRsm: 58.1V to 64.4V
Polarity: Cathode band indicates unidirectional device; no band indicates bidirectional
Temperature Range: -55°C to +150°C operating, -55°C to +175°C storage
Dimensions (Inches/Millimetres): 0.181 x 0.157 x 0.060 (4.60 x 4.00 x 1.52)
Plastic Material: UL recognized 94V-0
Response Time: Less than 1.0ns (uni-direction), less than 5.0ns (bi-directional)
Buy the Buy Multicomp Surface Mount Transient Voltage Suppressor Part Number SMAJ33CA Online
Purchase the Multicomp SMAJ33CA transient voltage suppressor diode online to ensure your electronic circuits are protected from voltage surges and transients. Designed with fast response times, high power capacity, and UL 94V-0 plastic safety standards, this surface mount device is ideal for modern, space-constrained applications. Its reliable performance across a wide temperature range makes it suitable for high-speed electronics, communications equipment, and consumer devices. Order now for prompt delivery and safeguard your circuitry effectively.
Get Multicomp SMAJ33CA today—built for high-speed surge protection and reliable circuit safeguarding in compact electronic devices.
