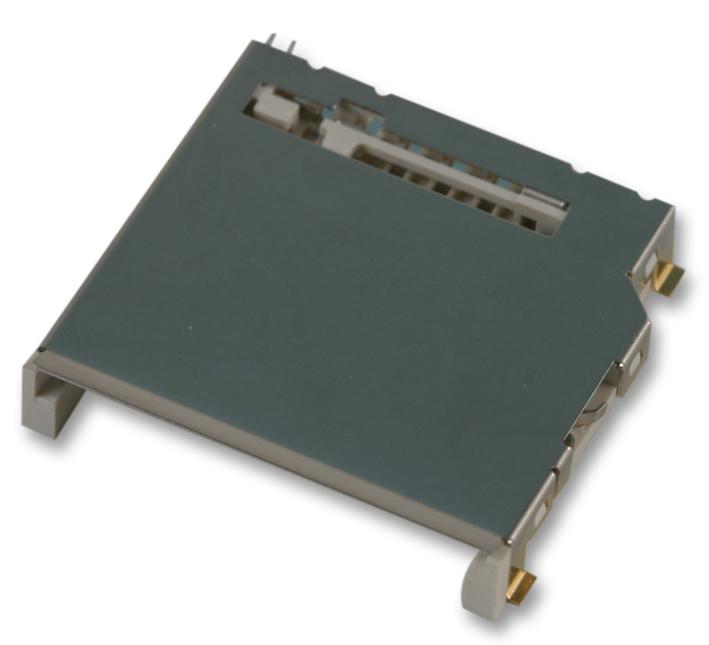

MULTICOMP PRO MC34459 SD Memory Card Connector
The MC34459 from Multicomp Pro is a right-angle surface-mount SD memory card connector with 9 contacts, phosphor bronze contacts, gold plating, and rated for 250VAC. It features an insulation resistance of 1000 MΩ, contact resistance of 40 mΩ, and supports up to 10,000 mating cycles. Encased in LCP glass fiber, it operates between -25°C and +85°C, making it suitable for portable devices. The connector’s compact design and reliable electrical performance ensure seamless insertion and long-lasting durability in various electronic applications.
MULTICOMP PRO MC34459 SD Memory Card Connector Specifications:
- Contact Material: Phosphor Bronze
- Contact Plating: Gold
- Housing Material: LCP Glass Fiber
- Voltage Rating: 250VAC
- Current Rating: 0.5A
- Insulation Resistance: 1000 MΩ
- Contact Resistance: 40 mΩ
- Number of Contacts: 9
- Dielectric Withstanding Voltage: 250V
- Operating Temperature Range: -25°C to +85°C
- Mating Cycles: 10,000
- Mounting Type: Surface Mount Right Angle
Buy the Multicomp Series SD Memory Card Connector: MC34459
Order the Multicomp MC34459 SD memory card connector online now and experience reliable, high-quality electrical connections. Designed for portable electronics, this right-angle surface-mount connector features 9 contacts with gold plating, supporting up to 10,000 mating cycles for extended durability. Rated for 250VAC and 0.5A, it operates smoothly between -25°C to +85°C, ensuring versatility across various environments. Its compact design makes installation easy and efficient, providing optimal performance for modern electronic devices.
Get Multicomp MC34459 today—built for precise connections and long-lasting durability in portable device applications.
