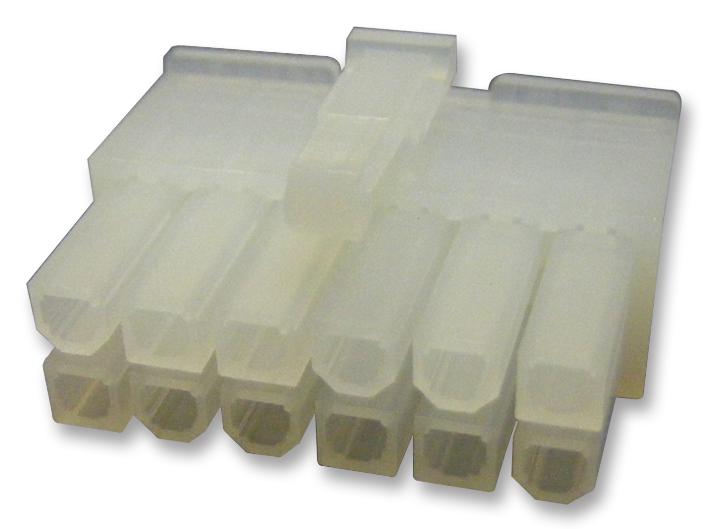

MULTICOMP PRO MC34507 Dual Row Connector
This 4.2mm wire-to-wire dual row connector offers high reliability for industrial electronics and automation systems. Made from nylon 66 with phosphor bronze or brass tin-plated crimp terminals, it ensures excellent electrical and mechanical performance. Suitable for wire sizes 26AWG to 16AWG, it has a maximum current rating of 9A AC/DC and voltage rating of 100V AC/DC. The connector withstands voltage of 1,500V AC for one minute, with an insulation resistance of at least 1,000MQ. Operating temperatures range from -40°C to +105°C, making it ideal for diverse industrial environments. Dimensions vary based on circuit number, with maximum panel thickness of 2mm, providing versatile application options in control panels and wiring harnesses.
MULTICOMP PRO MC34507 Dual Row Connector Specifications:
- Current Rating: 9A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: 00Ω Max.
- Insulation Resistance: ≥1,000MQ Min.
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Wire Size: 26AWG to 16AWG
- Housing Material: Nylon 66
- Crimp Terminal Material: Phosphor Bronze or Brass Tin Plated
- Maximum Panel Thickness: 2mm
- Dimensions vary based on circuit count, e.g., 2 circuits: 5.4mm, 20 circuits: 43.2mm
- UL Flammability Rating: UL 94V-2
- Recommended for industrial and automation applications
- Receptacle and plug options provided with circuit variations from 2 to 20 ways
Buy the Multicomp Pro MC34507 – Reliable 4.2mm Wire to Wire Dual Row Connectors for Industrial Applications
Experience seamless wiring and reliable connections with the Dual Row Connector rated for industrial environments. Made from durable nylon and tin-plated terminals, it ensures long-lasting performance supporting wire sizes 26AWG to 16AWG at 9A current and 100V rating. Its robust design withstands voltage spikes up to 1,500V and temperatures from -40°C to +105°C. Ideal for control panels, wiring harnesses, and automation systems, this connector offers versatility and easy installation with various circuit configurations. Order online today for quality and dependable connections in your projects.
Get Multicomp Pro MC34507 today—built for precision, durability, and versatile industrial wiring solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34507?
You can click on the BUY or RFQ button to purchase MC34507 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34507?
You can download the MC34507 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34507?
MULTICOMP PRO
