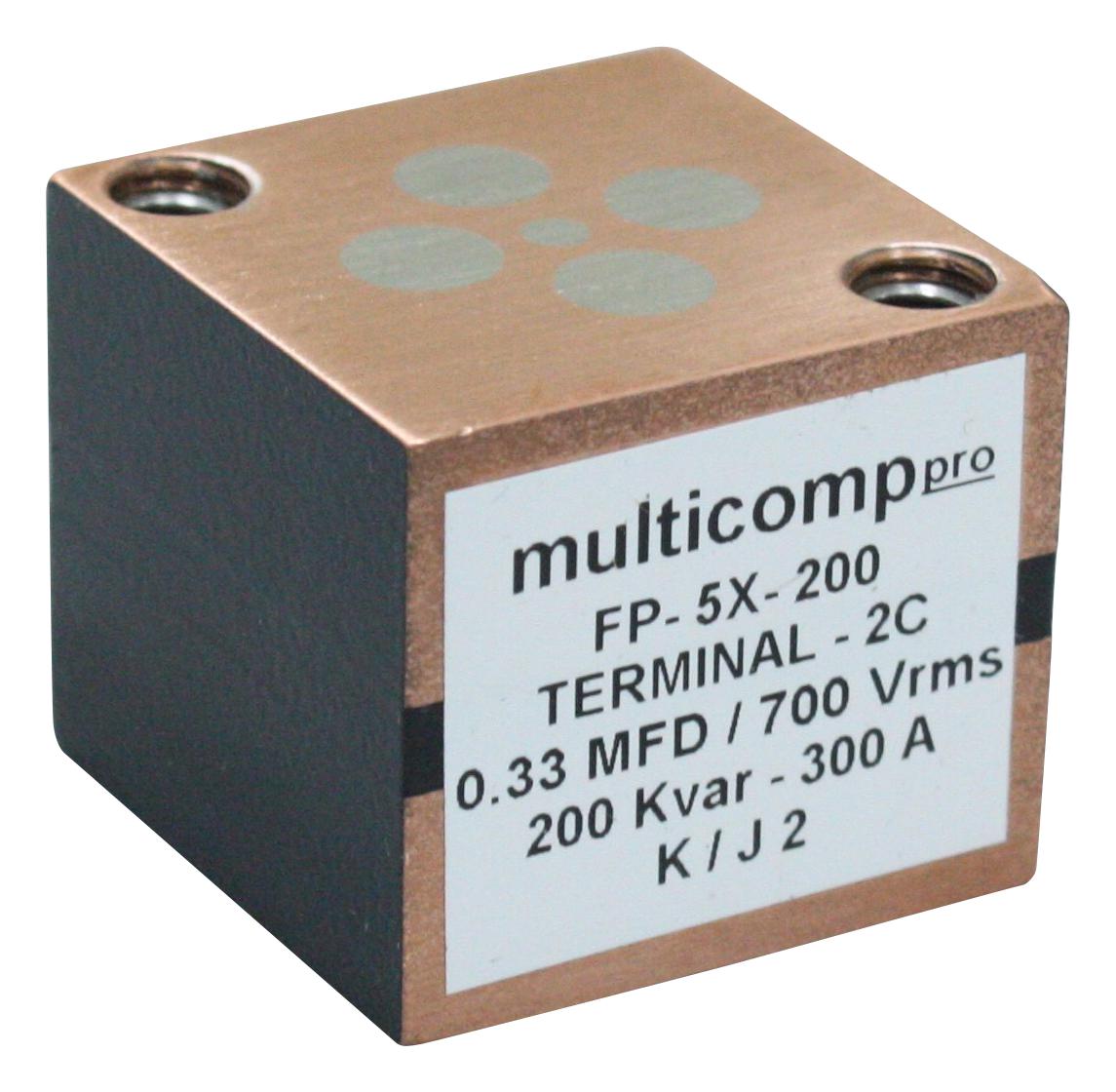

MULTICOMP-PRO MP004089 Power Film Capacitor
Power film capacitors with screw and stud terminals designed for industrial applications. Features include conduction cooling, polypropylene dielectric, self-healing properties, and RoHS compliance. Suitable for high-frequency operations up to 1400kHz, these capacitors have a maximum core temperature of 85°C and a capacitance tolerance of ±10%. They are flame retardant UL94-V0 rated and come in various voltage and capacitance ratings for versatile use in power filtering, motor starting, and energy storage systems. Standard terminal style is 2C with M6x10mm deep holes and 4 helicoils for secure installation.
MULTICOMP-PRO MP004089 Power Film Capacitor Specifications:
- Voltage Ratings: 600V, 700V, 800V, 900V
- Capacitance Range: 0.17UF to 0.66UF
- Current Ratings: 250A to 350A
- Maximum Operating Temperature: 85°C
- Dielectric Material: Polypropylene
- Features: Self-healing, conduction cooled, RoHS compliant
- Terminal Style: 2C with M6x10mm deep holes, 4 helicoils
- Dimensions: Length approximately 35.4mm, Width 30.2mm ±0.1mm
- Flame Retardant: UL94-V0
- Frequency Operation: up to 1400kHz
- Capacitance Tolerance: +10%
- Rated Nominal Voltage: 600V to 900V
Buy the Multicomp Power Film Capacitors – Reliable Power Solutions for Industrial Applications
Enhance your power systems with Multicomp power film capacitors featuring conduction cooling, polypropylene dielectric, and flame retardant UL94 V0 rating. These capacitors support high-frequency operation up to 1400kHz, with voltage ratings from 600V to 900V and capacitance values from 0.17UF to 0.66UF. Designed for durability and stability, they are ideal for energy storage, filtering, and industrial power applications. Securely installed with M6x10mm deep terminals and four helicoils, they ensure reliable performance in demanding environments.
Get Multicomp power film capacitors today—built for precision, high-frequency performance, and long-lasting reliability.
