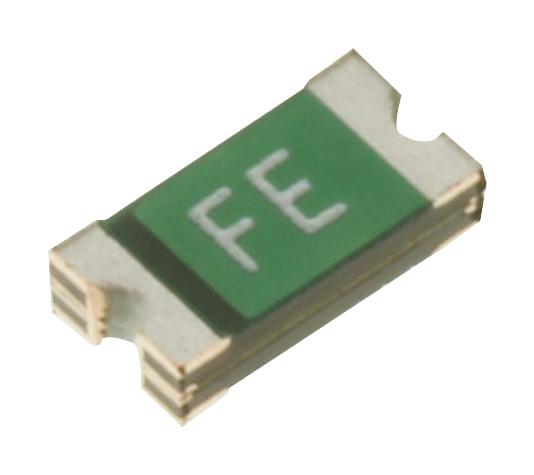

MULTICOMP PRO MC36216 Surface Mountable PTC Fuse
The FSMD series from Multicomp Pro consists of surface-mountable PTC (Positive Temperature Coefficient) resettable fuses. These fuses operate within current ranges from 0.1mA to 3A and are designed for rapid trip times. They feature lower resistance values and can operate effectively within temperature ranges from -40°C to 85°C. The rated voltage spans from 6V to 60V. These fuses are certified by UL, CSA, and TUV standards. Suitable for industrial and safety applications, they offer a reliable overcurrent protection solution.
MULTICOMP PRO MC36216 Surface Mountable PTC Fuse Specifications:
- RoHS Compliant
- Applications: All high-density boards
- Product features: Small surface mountable, solid state, faster trip time than standard devices, lower resistance
- Maximum voltage: BV to GOV
- Temperature range: -40°C to 85°C
- UL: E-345437
- Electrical Characteristics (23°C): Hold current up to 3A, trip current from 0.1mA, rated voltage from 6V to 60V, resistance values and trip times vary by model
- Termination pad material: Pure tin
- Soldering: Meets EIA RS 186-9E, ANSI/J-STD-002 category 3
- Dimensions: Length 3.0–3.5 mm, width 1.5–1.8 mm, height 0.45–0.75 mm, according to model
- Pad layout: Standard 1206 package, recommended soldering and reflow profiles provided
- Solder reflow temperature: Peak 260°C, dwell time 20-40 seconds
- Reflow Profile: Ramp-up max 3°C/sec, T_min 150°C, T_max 200°C, T_peak 260°C
- Storage environment: <30°C / 60% RH
- Certifications: UL, CSA, TUV
Buy the Buy Multicomp Pro PTC Resettable Fuse Part Number MC36216 Online
Purchase the Multicomp Pro PTC resettable fuse MC36216 online today and ensure your high-density electronic circuits are protected with quick trip times and low resistance. These surface-mount devices are suitable for industrial and safety applications, offering reliable overcurrent protection from -40°C to 85°C. Certified by UL, CSA, and TUV, they provide peace of mind. Easy to solder with recommended profiles, this fuse guarantees durability and dependable performance in demanding environments, making it an excellent choice for your safety-critical systems.
Get Multicomp Pro MC36216 today—designed for rapid trip performance and reliable overcurrent protection in your high-density circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC36216?
You can click on the BUY or RFQ button to purchase MC36216 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC36216?
You can download the MC36216 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC36216?
MULTICOMP PRO
