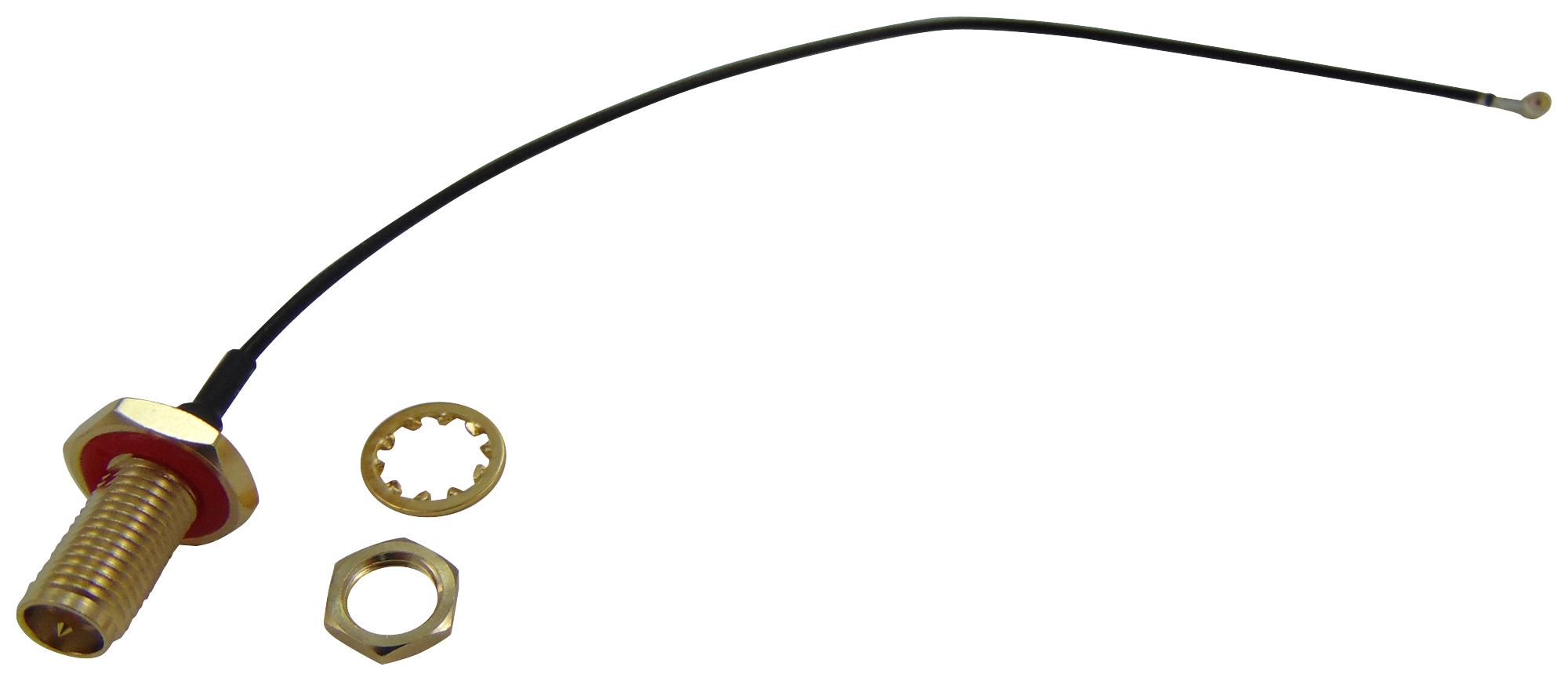

MULTICOMP PRO R134G7210200CA RF coaxial cable assembly
The R-134G7210200CA is a 200mm RF coaxial cable assembly designed for reliable signal transmission. It features a right-angle U.F.L connector and an RP-SMA bulkhead jack, suitable for outdoor RF communications, imaging, and video applications. The cable has a 50-ohm impedance, a frequency range up to 3 GHz, and a maximum voltage of 60Vrms. Made with black heat shrink and a 1.37mm low-loss cable, it withstands dielectric voltages of 200Vrms, with an insulation resistance minimum of 500MΩ. Its operating temperature is -20°C to +70°C, ensuring durability in various environments.
MULTICOMP PRO R134G7210200CA RF coaxial cable assembly Specifications:
- Connector Type A: RP-SMA Bulkhead Jack
- Connector Type B: U.FL Plug
- Cable Assembly Type: RF Coaxial Cable Assembly
- Cable Length: 200mm (7.87 inches)
- External Diameter: 1.37mm
- Jacket Colour: Black
- Impedance: 50Ω
- Frequency Range: DC to 3GHz
- Max. Working Voltage: 60V rms
- Min. Dielectric Withstanding Voltage: 200V rms
- Insulation Resistance: ≥500MΩ
- Temperature Range: -20°C to +70°C
- VSWR: Up to 1.4:1
- Maximum Insertion Loss: -1.3dB
Buy the Buy multicomp RF Coaxial Cable Assembly Part Number R-134G7210200CA Online
Enhance your RF system with the multicomp RF coaxial cable assembly, featuring a 200mm length, 50Ω impedance, and a frequency range up to 3 GHz. With robust connectors including RP-SMA bulkhead jack and U.FL plug, it delivers excellent performance for outdoor communications, imaging, and video applications. Its high-quality construction ensures durability across temperatures from -20°C to +70°C, with low insertion loss and high insulation resistance. Perfect for professional use, this assembly guarantees dependable connections for critical RF projects and installations.
Buy multicomp RF Coaxial Cable Assembly R-134G7210200CA now and experience reliable signal integrity for outdoor RF, imaging, and video applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R134G7210200CA?
You can click on the BUY or RFQ button to purchase R134G7210200CA from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R134G7210200CA?
You can download the R134G7210200CA datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R134G7210200CA?
MULTICOMP PRO
