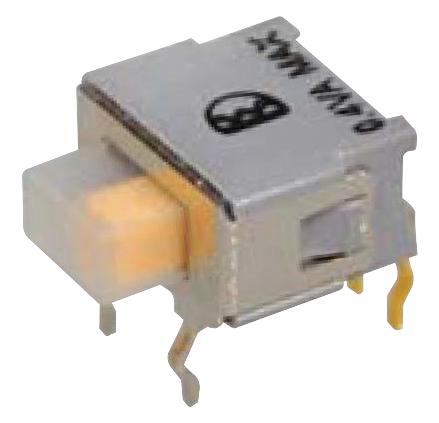

MULTICOMP PRO MC5SES1S105M6RES Miniature Slide Switch
Miniature slide switches designed for reliable industrial applications feature IP67 protection, SPDT and DPDT configurations, and operate within temperatures ranging from -20°C to 80°C. These switches have a contact rating of 0.4V at 48V AC/DC, a mechanical life of 40,000 operations, and possess dielectric strength of 500V for 1 minute. The housings are made from PBT, with brass or phosphor bronze contact terminals, and are suitable for PCB mounting, with wave and vapor phase soldering compatibility. They are RoHS compliant and sealed with epoxy for durability.
MULTICOMP PRO MC5SES1S105M6RES Miniature Slide Switch Specifications:
- Max. Contact Rating: 0.4V at 48V AC/DC
- Min. Mechanical Life: 40,000 operations
- Max. Contact Resistance: 50mΩ
- Insulation Resistance: 500MΩ at 250V DC
- Dielectric Strength: 500V, 50Hz for 1 minute
- Operating Temperature: -20°C to 80°C
- Degree of Protection: IP67
- Housing Material: PBT, washable
- Contact Material: Brass, tin plated; Phosphor bronze, gold plated over nickel
- Terminal Seal: Epoxy
- Mounting: PCB, wave, vapor phase soldering
- Switch Types: SPDT, DPDT
- Pole Options: Single Pole Double Throw (SPDT), Double Pole Double Throw (DPDT)
Buy the multicomp U+2013 Reliable Miniature Slide Switches for Industrial Applications
Order multicomp miniature slide switches online today and enjoy high durability, IP67 protection, and precise switching performance. Perfect for industrial use, these switches support PCB mounting, wave, and vapor phase soldering. With a contact rating of 0.4V at 48V AC/DC and a mechanical life of 40,000 operations, they ensure long-lasting reliable operation in challenging environments. Their sealed epoxy design and RoHS compliance make them an excellent choice for various industrial and electronic applications. Purchase now for efficient installation and dependable performance.
Buy multicomp miniature slide switches now and experience unmatched reliability and performance suitable for industrial PCB applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC5SES1S105M6RES?
You can click on the BUY or RFQ button to purchase MC5SES1S105M6RES from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC5SES1S105M6RES?
You can download the MC5SES1S105M6RES datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC5SES1S105M6RES?
MULTICOMP PRO
