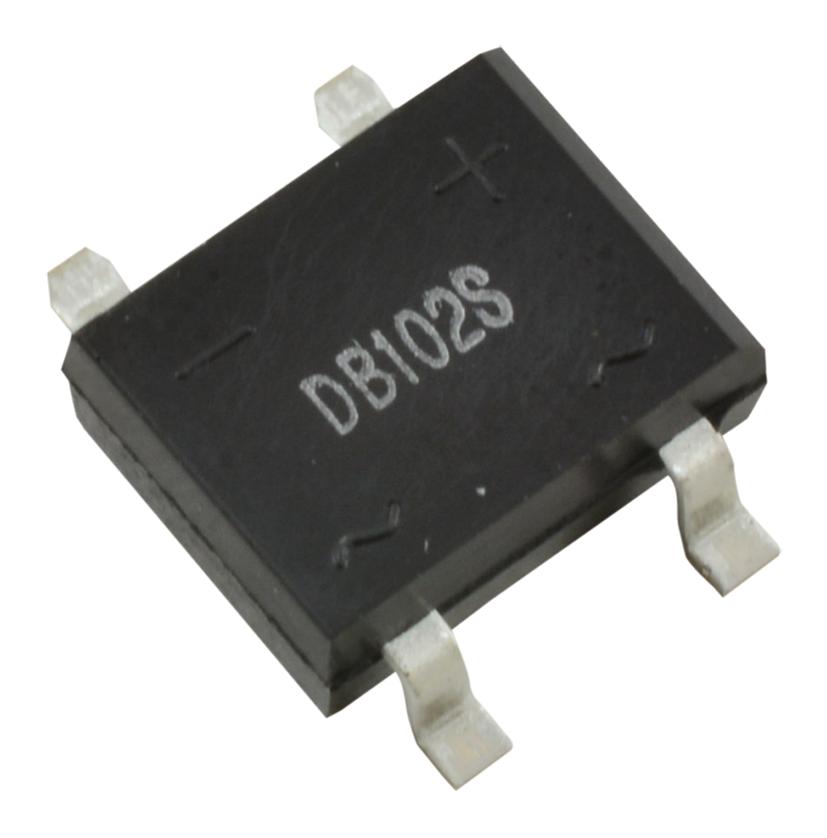

MULTICOMP PRO DB102S Bridge Rectifier
The DB102S is a surface-mount glass passivated bridge rectifier designed for reliable DC conversion. It features a molded plastic body with UL94V-0 flammability rating, supporting up to 70V RMS and 100V DC. This rectifier offers low forward voltage drop and high current capacity at 1 Ampere, making it ideal for printed circuit board applications. It has a maximum junction capacitance of 25 pF and a thermal resistance of 40°C/W, operating efficiently from -55°C to 150°C. Suitable for mains rectification, it provides consistent performance in various electronic circuits.
MULTICOMP PRO DB102S Bridge Rectifier Specifications:
- Maximum Recurrent Peak Voltage: 50V to 1000V depending on model
- Maximum RMS Voltage: 35V to 700V
- Maximum DC Blocking Voltage: 50V to 1000V
- Maximum Average Forward Rectified Current: 1A
- Maximum Forward Voltage at 1A: 1.4V
- Maximum Reverse Current @25°C: 10μA
- Operating Temperature Range: -55°C to +150°C
- Junction Capacitance: 25 pF
- Thermal Resistance: 40°C/W
- Flammability Rating: UL94V-0
- Material: Glass passivated, molded plastic
- Mounting Type: Surface mount
- Supports resistive, inductive, and capacitive loads with derating
- Suitable for mains rectification in electronic circuits
- Lead tin copper construction
- Reverse Voltage Range: 50V to 1000V
- Peak Surge Current: 8.3ms single half sine-wave
Buy the Buy multicomp-pro Bridge Rectifier Part Number DB102S Online
Purchase the multicomp-pro DB102S bridge rectifier online today to ensure your electronic circuits benefit from reliable current conversion. Designed for surface mounting, it supports up to 70V RMS and 100V DC with 1 Ampere current capacity, ideal for mains rectification. Its UL94V-0 plastic housing guarantees safety and durability, while its glass passivated construction ensures consistent performance across a wide temperature range from -55°C to +150°C. Secure your supply chain with this high-quality, cost-effective component for professional circuit design.
Order your multicomp-pro DB102S surface mount bridge rectifier today and enhance your electronic projects with reliable low-voltage, high-current rectification.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DB102S?
You can click on the BUY or RFQ button to purchase DB102S from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DB102S?
You can download the DB102S datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DB102S?
MULTICOMP PRO
