MULTICOMP-PRO MC8AS8P1A1M2RES Sub-Miniature Pushbutton Switch
Sub-miniature pushbutton switches designed for precise control and durable operation in various electronic applications. These switch models feature SPST, SPDT, and DPST configurations with reliable contact ratings, mechanical longevity of 50,000 cycles, and low contact resistance of 20mΩ at 2V DC. Constructed from heat-stabilized glass-filled nylon and thermoplastic polyester, with gold or silver plated contacts for excellent conductivity. Suitable for PCB mounting, right-angle, and through-hole options, these switches ensure high insulation resistance, dielectric strength, and RoHS compliance for environmentally friendly use.
MULTICOMP-PRO MC8AS8P1A1M2RES Sub-Miniature Pushbutton Switch Specifications:
- Contact Rating: 100mA at 20mΩ initial resistance, 1,000V rms dielectric strength
- Mechanical Life: 50,000 make-and-break cycles
- Max. Contact Resistance: 20mΩ at 2V DC
- Insulation Resistance: 1,000MΩ
- Operating Temperature: -30°C to +85°C
- Materials: Case and Bushing - glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0); Plunger - thermoplastic polyester with O-ring seal; Terminal Material - brass or steel plated, gold or silver contacts
- Dimensions: variable as per standard PCB and right-angle mounting options, typical size in inches and millimeters included
- Certifications: RoHS compliant
- Soldering Process: Manual (30W, 350°C, 5s), Wave (260°C + 5°C, 5s immersion)

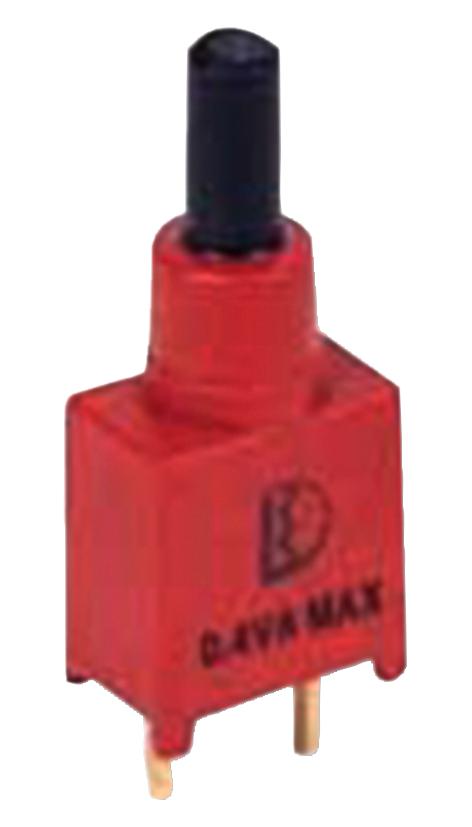

Buy the Buy Multicomp Pro Pushbutton Switch Part Number MC8AS8P1A1M2RES Online
Order the Multicomp Pro sub-miniature pushbutton switches online today for high reliability and durable performance. These switches feature SPST, SPDT, and DPST configurations, excellent contact ratings, and robust construction from heat-stabilized nylon and thermoplastic polyester. Ideal for electronic device control in PCB mounting, right-angle, or through-hole forms, they ensure excellent insulation resistance, dielectric strength, and RoHS compliance. Perfect for industrial, automation, and consumer electronics, these switches combine precision, durability, and environmental safety for all your automation and control needs.
Get Multicomp Pro MC8AS8P1A1M2RES today—built for precision and long-lasting durability in electronic control applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC8AS8P1A1M2RES?
You can click on the BUY or RFQ button to purchase MC8AS8P1A1M2RES from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC8AS8P1A1M2RES?
You can download the MC8AS8P1A1M2RES datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC8AS8P1A1M2RES?
MULTICOMP-PRO
