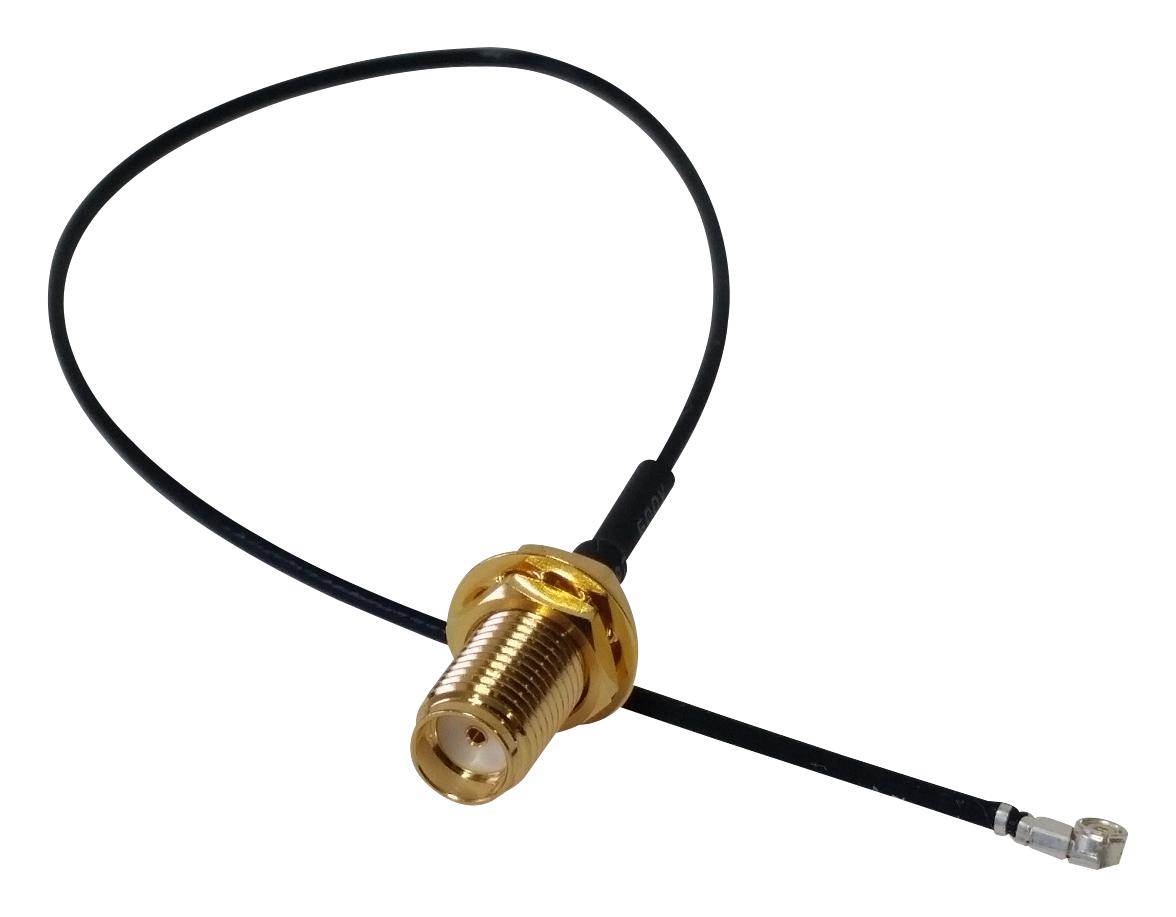

MULTICOMP PRO R132G7210200CA RF Coaxial Cable Assembly
The R-132G7210200CA is a 200mm RF/coaxial cable assembly equipped with a right-angle U.FL plug and an SMA bulkhead jack. It features a black heat-shrink tube and body, with a U.FL-LP-088 shell and terminal contact. The assembly utilizes a 1.37mm low-loss coaxial cable with 50Ω impedance, suitable for outdoor RF communication applications. It offers a frequency range from DC to 3 GHz, a maximum working voltage of 60Vrms, dielectric withstand voltage of 200Vrms, insulator resistance of at least 500MΩ, and a maximum VSWR of 1.4:1. The insertion loss is up to -1.3dB, and the temperature range spans from -20°C to +70°C.
MULTICOMP PRO R132G7210200CA RF Coaxial Cable Assembly Specifications:
- Connector to Connector: 90° U.FL Plug to SMA Bulkhead Jack
- Impedance: 50Ω
- Frequency Range: DC to 3 GHz
- Max. Working Voltage: 60V rms
- Dielectric Withstanding Voltage: 200 V rms
- Insulation Resistance: ≥500 MΩ
- Cable Length: 200mm
- Cable Diameter: 1.37 mm
- Color: Black
- Temperature Range: -20°C to +70°C
- VSWR: Up to 1.4:1
- Insertion Loss: Up to -1.3 dB
Buy the MultiComp Pro R132G7210200CA – Reliable RF Coaxial Cable Assembly for Industrial Applications
Enhance your RF communication setup with the versatile 200mm RF coaxial cable assembly designed for outdoor and industrial use. Featuring a right-angle U.FL plug and SMA bulkhead jack, this assembly provides excellent impedance, low loss up to 3 GHz, and reliable insulation resistance. Its durable black heat-shrink and precise connectors make it ideal for demanding environments. Easily integrate this high-performance cable into your system for stable and efficient RF connections, ensuring optimal operation and durability in real-world applications.
Order your MultiComp Pro R132G7210200CA 200mm RF coaxial cable assembly today and ensure high-quality connections for your outdoor RF communication projects.
