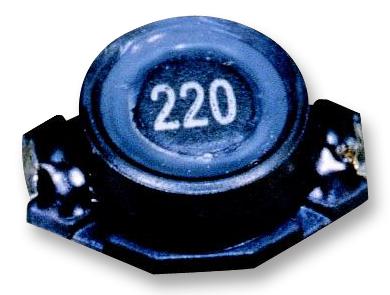

MULTICOMP PRO MCBF7344302KU SMD Power Inductor
This surface-mount inductor offers a 3mH inductance with a ±10% tolerance, designed for compact electronic applications. It features a maximum DC resistance of 13.50 ohms, rated for 400mA of current, and is constructed with RoHS-compliant lead-free solder. The inductor’s robust case style (SMD) measures up to 18.54mm in width and 15.24mm in height, with a lead spacing of 12.92mm. Operating efficiently at temperatures from -40°C to +125°C, it is suitable for power electronics, filters, and switching regulators, with low DCR and stable inductance reliability.
MULTICOMP PRO MCBF7344302KU SMD Power Inductor Specifications:
- Inductance: 3mH
- Inductance Tolerance: ±10%
- DC Resistance Max: 13.50Ω
- DC Current Rating: 400mA
- Case Style: SMD
- Number of Pins: 2
- Lead Spacing: 12.92mm
- External Dimensions: Length 15.24mm, Width 18.54mm, Depth 12mm
- Material: RoHS-compliant with lead-free solder (Sn99.3% / Cu0.7%)
- Core Material: T2DR12.7 x 10C
- Operating Temperature: -40°C to +125°C
- Series: MCB
- Frequency Characteristics: 100kHz at 0.25V, Ims=0.4A at 25°C, temperature rise max 40°C
- Certifications: RoHS
Buy the Buy Multicomp RC Part Number MCBF7344302KU Online
Order the Multicomp RC power inductor MCBF7344302KU online today to enhance your electronics projects. This 3mH inductor provides a low DCR of up to 13.50 ohms, supports up to 400mA current, and operates efficiently over a wide temperature range from -40°C to +125°C. Its compact SMD case and lead spacing of 12.92mm make it ideal for power supplies, filtering, and switching applications requiring stability and durability. Secure your supply of this RoHS-compliant component today for dependable performance.
Buy Multicomp RC MCBF7344302KU now and experience reliable performance in your electronic circuits with this high-quality SMD inductor.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCBF7344302KU?
You can click on the BUY or RFQ button to purchase MCBF7344302KU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCBF7344302KU?
You can download the MCBF7344302KU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCBF7344302KU?
MULTICOMP PRO
