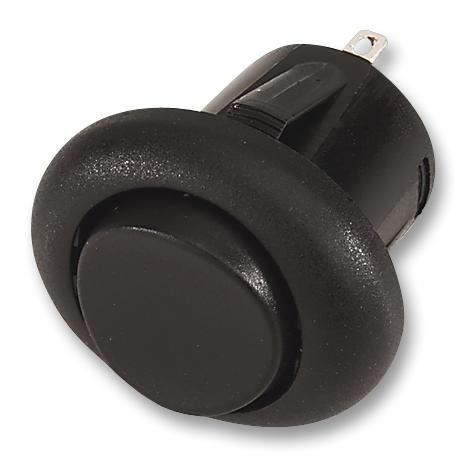

MULTICOMP PRO R13234I05BB0A Industrial rocker switch
The R13-234I-05-BB-0A is a panel-mount illuminated rocker switch with a single-pole double-throw configuration and ON-OFF-ON functionality. It features a durable black actuator and is ideal for industrial and control panel applications. The switch offers a maximum contact resistance of 50 milliohms and an insulation resistance exceeding 100 megaohms at 500V DC. With a dielectric strength of 1000 VAC for one minute, it ensures reliable electrical performance and safety. Manufactured by Multicomp Pro, it is built for robust industrial usage with a 12-month warranty.
MULTICOMP PRO R13234I05BB0A Industrial rocker switch Specifications:
- Power Rating: 6A125V, 3A 250V AC
- Max. Contact Resistance: 50mΩ
- Min. Insulation Resistance: 500V DC 100MQ
- Dielectric Strength: 1000V AC 1 minute
- Mounting Hole Diameter: 5 mm
- Actuator Color: Black
- Configuration: SPDT, ON-OFF-ON
- Type: Panel-mount illuminated rocker switch
- Material: Durable plastic and metal components
- Dimensions: 16.5 mm x 0.2 mm thickness, suitable for panel mounting
- Rated Voltage: 125V AC / 250V AC
- Rated Current: 6A at 125V, 3A at 250V
- RoHS Compliant
- Certification: UL Listed, CE
- Operating Temperature: -20°C to +55°C
Buy the Multicomp Series Rocker Switch: R13-234I-05-BB-0A
Enhance your control panels with the durable and reliable industrial rocker switch from Multicomp. This panel-mount illuminated switch features a robust SPDT ON-OFF-ON configuration with a black actuator, rated up to 6A at 125V. It provides excellent electrical insulation resistance and dielectric strength, suitable for demanding industrial environments. Easy to install with a 5 mm mounting hole, it ensures safe operation and long-term durability. Perfect for automation, control, and panel applications, buy online today for quality assurance.
Buy Multicomp Series R13-234I-05-BB-0A now and experience unmatched reliability and performance in industrial control switching.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R13234I05BB0A?
You can click on the BUY or RFQ button to purchase R13234I05BB0A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R13234I05BB0A?
You can download the R13234I05BB0A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R13234I05BB0A?
MULTICOMP PRO
