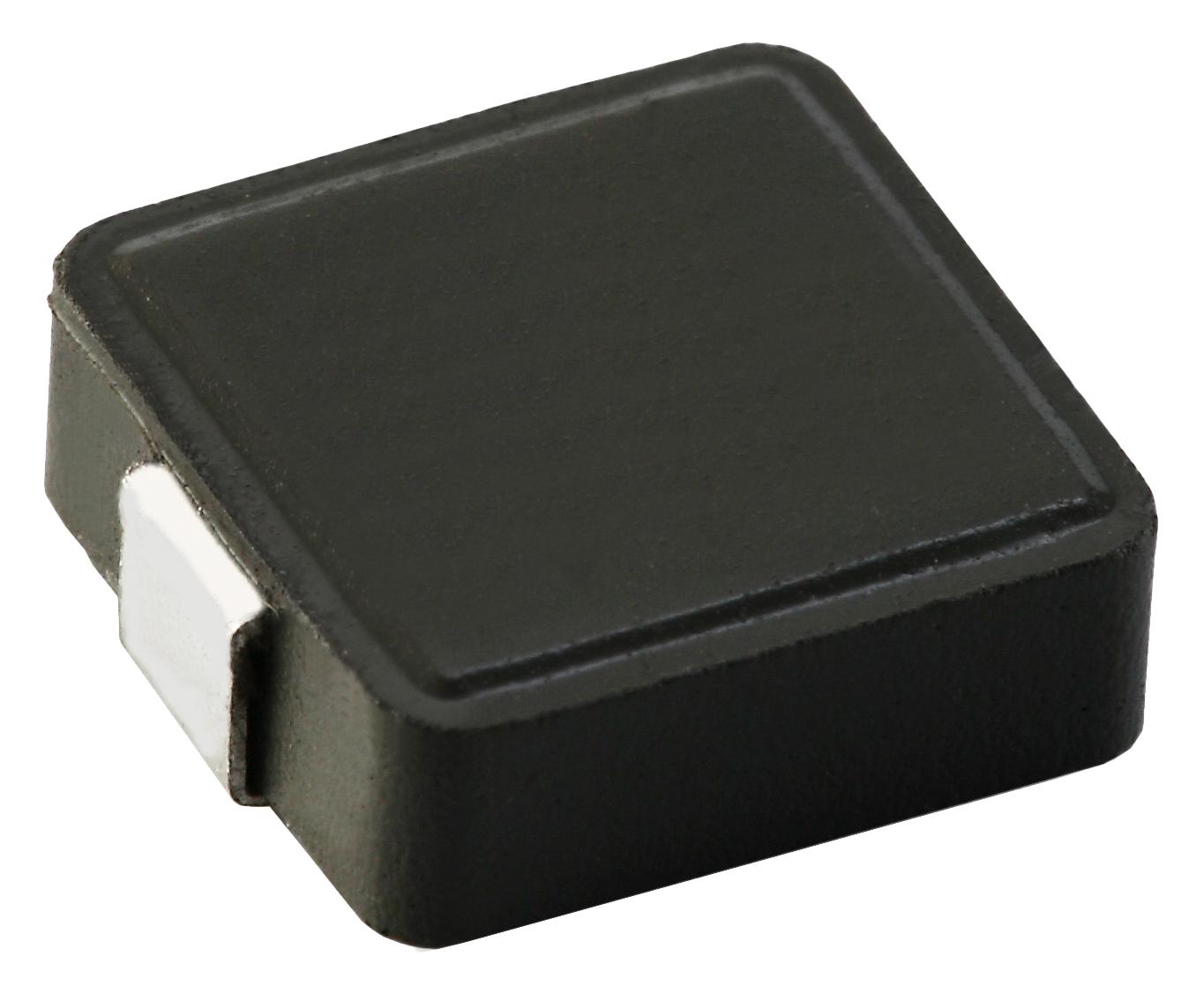

MULTICOMP-PRO MP002767 Shielded Power Inductor
These shielded molding surface-mount power inductors are engineered for high-current applications, offering low DCR and a compact low-profile design. Compatible with most standard footprints, they produce lower temperature rise at high currents and are RoHS compliant. Suitable for use in laptops, desktops, portable servers, DC/DC converters, VRM systems, and onboard power modules, these inductors feature reliable saturation and temperature rise characteristics, tested at 25°C ambient, ensuring optimal performance in demanding power applications.
MULTICOMP-PRO MP002767 Shielded Power Inductor Specifications:
- Case Codes: 0420, 0530, 0630
- Dimensions: 0420 - 4.1 x 4.5 mm, 0530 - 5.0 x 5.5 mm, 0630 - 6.8 x 7.6 mm
- Operating Temperature Range: -40°C to 125°C
- Inductance: 0.22 µH to 47 µH
- Tolerance: ±20%
- Saturation Current: 4A to 15.5A depending on model
- Temperature Rise Current: Up to 45°C
- RoHS Compliant: Yes
- Tape and Reel Quantity: 13” reel, 3500, 2500, 1500 pcs
- Solderability: >90% terminals covered with solder, tested at 230±5°C for 4±1 seconds
- Heat Resistance: 260±5°C for 10 seconds, 500 hours at 125°C
- Vibration and Humidity Resistance: No damage or performance loss, tested per industry standards
- Reflow: Peak temperature 245±5°C, 5 seconds
Buy the Multicomp Series MP002767 Shielded Power Inductor Part Number MP002767
Purchase the high-quality Multicomp shielded power inductors online now and enhance your power management solutions. Designed for demanding applications like laptops, DC/DC converters, and portable servers, these low-profile inductors provide reliable magnetic performance, low DCR, and excellent saturation characteristics. Available on tape and reel, they ensure easy surface mounting with consistent quality. Upgrade your electronics with these RoHS-compliant inductors that deliver durability and efficiency in high-current environments, perfect for industrial, computing, and power supply applications.
Order your Multicomp Series MP002767 shielded power inductor today and ensure dependable performance in your high-current power systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002767?
You can click on the BUY or RFQ button to purchase MP002767 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002767?
You can download the MP002767 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002767?
MULTICOMP-PRO
