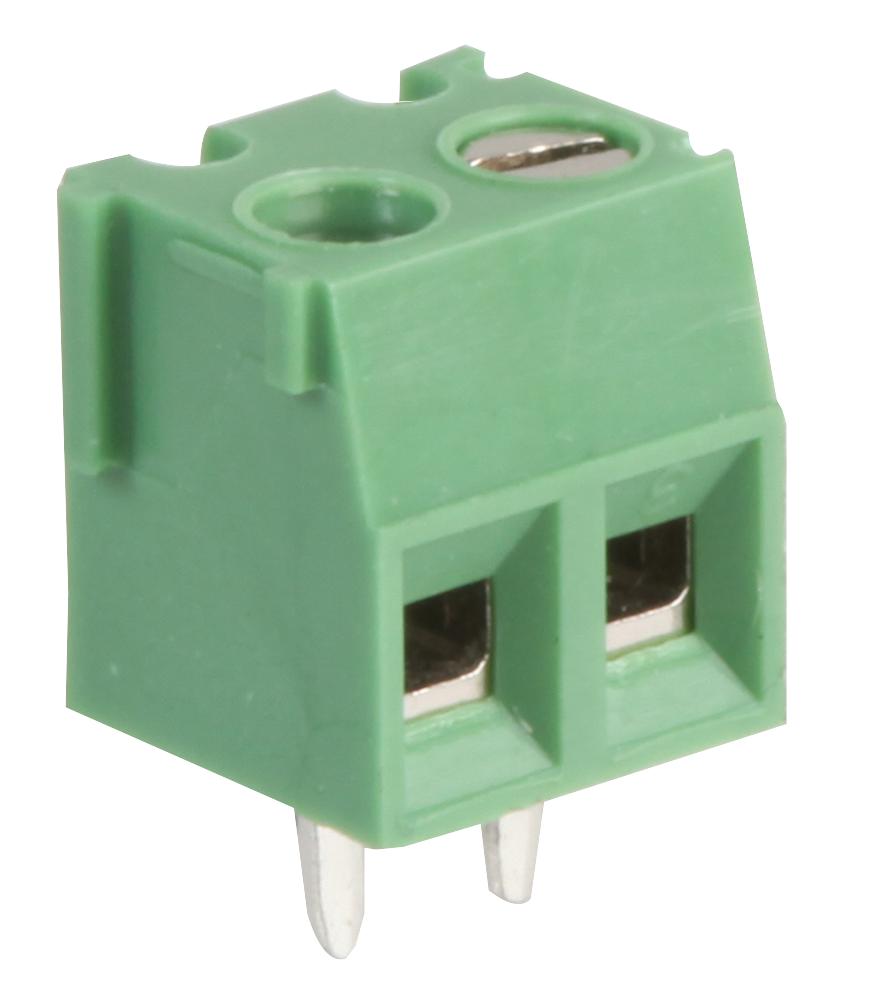

MULTICOMP PRO MC000044 Modular PCB Terminal Block
The MC000044 is a 2-way 3.81mm modular PCB terminal block designed with tin-plated brass terminals and a green polyamide 66 insulating body. It features a through-hole right-angle configuration and accepts 16 AWG wire gauge, utilizing a wire-to-board screw connection. This modular terminal block allows for combination with other modular or single-type Multicomp Pro terminal blocks. It offers excellent insulation resistance of over 2000 MΩ, operates within a temperature range of -40°C to +105°C, and comes with a 12-month limited warranty. Multicomp Pro products are highly rated, and a significant majority of customers recommend them.
MULTICOMP PRO MC000044 Modular PCB Terminal Block Specifications:
- Rating Current: 8A, 300V AC
- Min. Insulation withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4 to 5mm
- Wire Range: 26 to 16 AWG
- Pitch: 3.81mm (0.15")
- Screw Torque: 3 Ib-inch
- Insulating Body: Polyamide 66, green
- Cage Clamp: Nickel-plated brass
- Terminal: Tin-plated
- Screw: Steel, nickel-plated
- Dimensions: 3.81mm pitch, 2-way model: 7.62mm length, 3-way model: 11.43mm length
- Part Number: MC000044 for 2-way, MC000045 for 3-way
Buy the Buy Modular Connectivity Components Part Number MC000044 Online
Secure your electronic assemblies with the high-quality Modular PCB Terminal Block. Designed for easy wire connections, this 2-way 3.81mm component features robust construction, excellent insulation resistance, and operates efficiently within a wide temperature range. Perfect for PCB wiring, cross-connections, and modular systems, this terminal block ensures reliable performance and easy installation. Whether for industrial control or consumer electronics, choose this RoHS-compliant terminal for durable, safe, and versatile connectivity in your engineering applications. Buy online now for fast delivery!
Buy Multicomp Pro MC000044 now and experience reliable, high-quality modular PCB terminal connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000044?
You can click on the BUY or RFQ button to purchase MC000044 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000044?
You can download the MC000044 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000044?
MULTICOMP PRO
