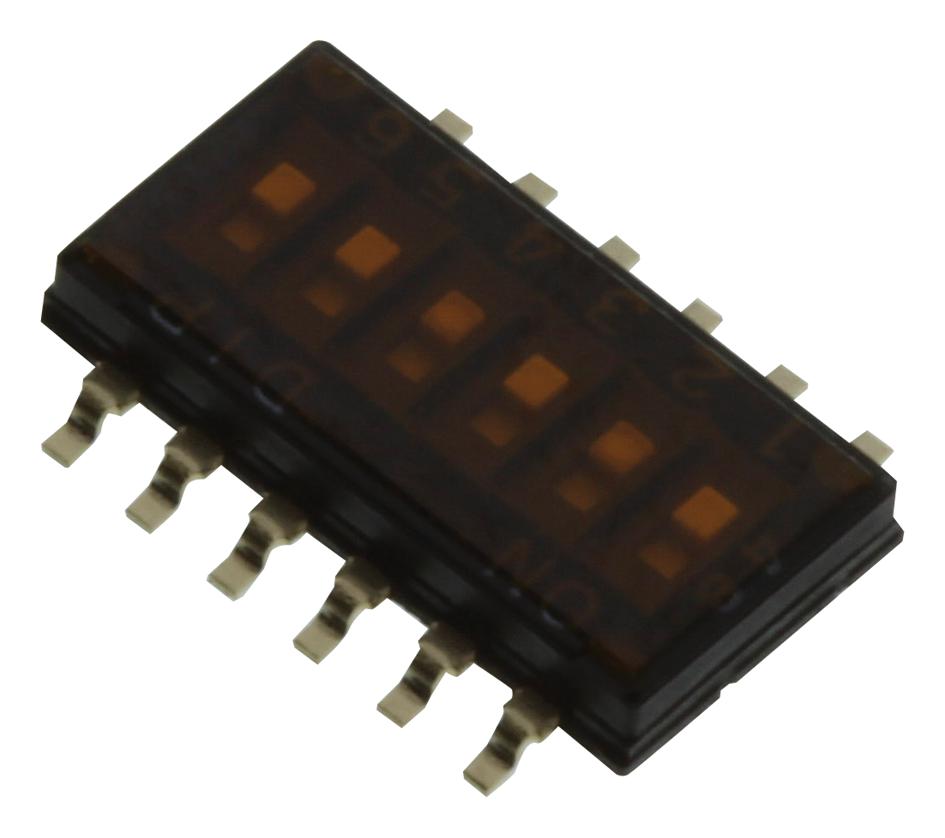

MULTICOMP PRO MCDHN06FTV DIP Switch
The Multicomp Pro MCDHN series DIP switches are compact, half-pitch switches with top tape sealing, designed for various electronic applications. They feature a switching capacity of 25mA at 24V DC, a single-pole single-throw (SPST) contact configuration, and are available in 2, 4, 6, 8, and 10-position options. The slide actuator operates with an operating force of 500gf. These switches are suitable for industrial, power management, automation, and process control applications. Rated for reliable performance, they are backed by a 12-month limited warranty.
MULTICOMP PRO MCDHN06FTV DIP Switch Specifications:
- Contact Arrangement: SPST
- No. of Poles: 2, 4, 6, 8, 10
- Contact Rating: 25mA, 24VDC
- Operating Force: 500gf max.
- Travel: 0.6mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dielectric Strength: 300V AC/1 minute
- Insulation Resistance: 100MQ Min.
- Dimensions: Varies with model, typical length approx. 3.7mm to 18.93mm
Buy the Multicomp Reliable Half-Pitch DIP Switches for Industrial Applications
Enhance your electronic assembly with the Multicomp Pro MCDHN series DIP switches. These compact, half-pitch switches with top tape sealing provide dependable switching for automation, industrial control, and power management applications. Available in 2 to 10 poles, each switch features a 25mA/24V DC rating, an operating force of 500gf, and a travel of 0.6mm. Designed for durability and precision, they ensure secure connections in demanding environments. Perfect for engineers and technicians seeking reliable switching components for various electronic projects.
Buy Multicomp MCDHN series DIP switches now and experience reliable performance for automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDHN06FTV?
You can click on the BUY or RFQ button to purchase MCDHN06FTV from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDHN06FTV?
You can download the MCDHN06FTV datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDHN06FTV?
MULTICOMP PRO
