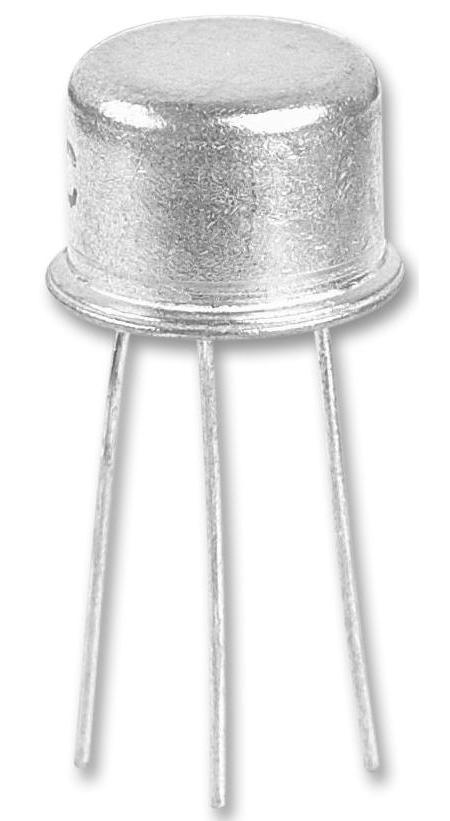

MULTICOMP PRO 2N1711 NPN transistor
The 2N1711 is a high-performance NPN silicon transistor designed for amplifier and switching applications. Featuring a collector-base voltage of 75V and emitter-base voltage of 7V, it handles up to 0.5A continuous collector current. This device boasts high breakdown voltage, low leakage current, and low input/output capacitance, making it suitable for audio signal amplification, switching, and signal processing scenarios across a broad current and voltage range. Its durability and efficiency make it a reliable choice for various electronic projects and industrial applications.
MULTICOMP PRO 2N1711 NPN transistor Specifications:
- Collector-Base Voltage: 75V
- Emitter-Base Voltage: 7V
- Collector Current: 0.5A
- Total Device Dissipation: 3W
- Thermal Resistance Junction-to-Case: 58°C/W
- Thermal Resistance Junction-to-Ambient: 219°C/W
- Operating Junction Temperature Range: -65°C to +200°C
- Storage Temperature Range: -65°C to +200°C
- Lead Temperature during soldering: 300°C for 60sec
- Voltage Breakdown VceR(sus): 50V
- Collector-Base Breakdown Voltage: 75V
- Emitter-Base Breakdown Voltage: 7V
- Collector Cut-off Current: Max 0.01A
- DC Current Gain (hFE): 100 to 300
- Current Gain-Bandwidth Product: 70 MHz
- Output Capacitance: 25 pF
- Input Capacitance: 80 pF
- Dimensions (mm): A 8.5-9.39, B 7.74-8.5, C 6.09-6.6, D 0.4-0.53, E 0.88, F 241-266, G 4.82-5.33, H 0.71-0.86, J 0.73-1.02, K 127, L 42°-48°
Buy the Buy Premier Farnell NPN Transistor Part Number 2N1711 Online
Purchase the high-quality 2N1711 NPN transistor online today to enhance your amplification and switching circuits. Designed for durability and efficiency, this versatile device handles up to 0.5A and 75V, making it ideal for audio, signal processing, and industrial applications. Easy to integrate into your projects, it offers low leakage, high breakdown voltage, and reliable performance at a very competitive price. Shop now to secure fast delivery of this essential component and improve your electronic designs with confidence.
Order your Premier Farnell Series 2N1711 transistor today and ensure reliable amplification and switching in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N1711?
You can click on the BUY or RFQ button to purchase 2N1711 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N1711?
You can download the 2N1711 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N1711?
MULTICOMP PRO
