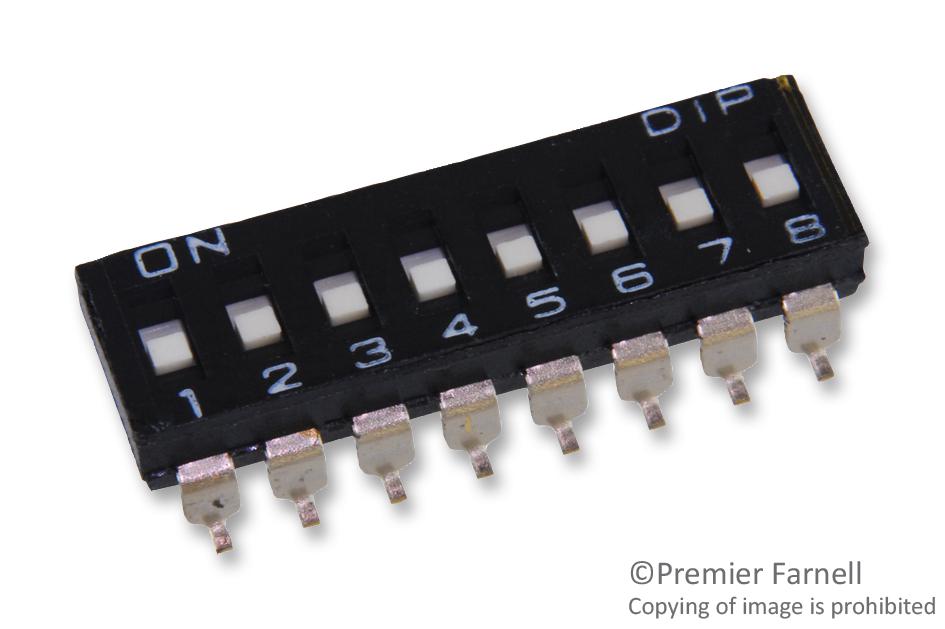

MULTICOMP PRO MCDMR08T 8-Position DIP Switch
The MCDM(R)-08-T is a compact, surface-mount SPST DIP switch designed for industrial automation and electronic control applications. It features a white nylon recessed actuator for easy operation and is suitable for top tape sealing, ensuring flux-proof assembly. Constructed with gold-plated over nickel contacts and terminals, it offers high reliability and excellent solderability. The switch supports automatic insertion with splay terminals and withstands high-temperature reflow soldering methods like vapor phase and infrared. Its dielectric strength of 500VAC and insulation resistance of 100 MΩ at 500V ensure durability and safety in demanding environments. Ideal for space-efficient, high-reliability switching, it provides a practical solution for control panels, industrial equipment, and embedded systems.
MULTICOMP PRO MCDMR08T 8-Position DIP Switch Specifications:
- Contact Arrangement: SPST
- Number of Poles: 8
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: > 100MΩ at 500V
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 1,000gf max.
- Travel: 1mm
- Operating Life: 2,000 cycles
- Operating Temperature: 20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 21.26mm (0.837 inches) length, 17.78mm (0.7 inches) width
- Material: White nylon thermoplastic, gold-plated contacts
- Mounting Type: Surface mount, top tape sealed
- Soldering: Compatible with vapor phase and infrared reflow
- Part Number: MCDM(R)-08-T
Buy the Buy Multicomp DIP Switch Part Number MCDMR08T Online
Order the Multicomp MCDM(R)-08-T DIP switch online today and enjoy fast, reliable shipping. This space-efficient, surface-mount SPST switch features gold-plated contacts, high insulation resistance, and excellent solderability. Perfect for industrial automation, control panels, and embedded systems, it offers high durability with a 2,000-cycle lifespan and withstands high-temperature reflow soldering processes. Ensure your projects are equipped with a dependable, flux-proof switch that guarantees consistent performance. Purchase now for quick delivery and range of application solutions.
Get Multicomp MCDMR08T today—designed for space-saving applications with high reliability and durable gold contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDMR08T?
You can click on the BUY or RFQ button to purchase MCDMR08T from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDMR08T?
You can download the MCDMR08T datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDMR08T?
MULTICOMP PRO
