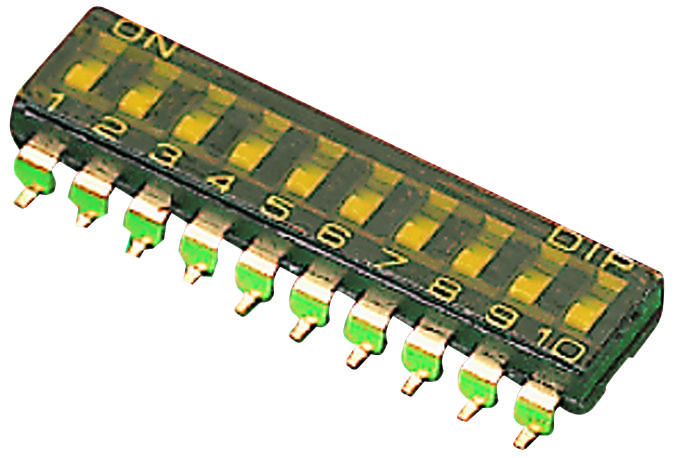

MULTICOMP PRO MCDMR10T DIP Switch
The MCDM series 10-position low-profile DIP switch offers a space-saving design with high reliability, featuring gold contact plating over nickel for enhanced durability. It has a white nylon recessed actuator, suitable for surface mounting with dip switch insert and splay terminals for automatic insertion. Designed for industrial applications, it supports ultrasonic welding and insert molding, making it flux-resistant and suitable for flux washing. The switch provides excellent insulation resistance of 100 MΩ at 500V, with dielectric strength of 500VAC for one minute, ensuring dependable performance in demanding environments.
MULTICOMP PRO MCDMR10T DIP Switch Specifications:
- Contact Arrangement: SPST
- Number of Poles: 10
- Contact Rating: 25mA, 24VDC
- Contact Resistance: Max. 50mΩ
- Insulation Resistance: > 100MΩ at 500V
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 1,000g maximum
- Travel: 1mm
- Operating Life: 2,000 cycles
- Operating Temperature: 20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Length 26.34mm (1.037 inch), Width 22.86mm (0.9 inch), suitable for surface-mount application
- Mounting: Surface-mount with splay terminals for automatic insertion
- Material: White nylon thermoplastic, gold-plated contacts over nickel
- Solderability: Vapor phase and IR reflow compatible
- Additional Info: Recessed actuator, flush slide, sealed top tape, IP67-rated for dust and moisture resistance
Buy the Multicomp Series DIP Switch: MCDM R10-T
Purchase the high-quality Multicomp DIP Switch online today and enhance your industrial or electronic projects with its space-saving design, durable gold contacts, and reliable performance. The MCDM R10-T offers excellent electrical characteristics, including 25mA current rating and 500V dielectric strength, ensuring long-term stability. Its surface-mount capability with splay terminals simplifies installation, making it ideal for automated manufacturing. Enjoy fast shipping, competitive pricing, and trusted quality by buying online now to upgrade your control and switching solutions with confidence.
Buy Multicomp MCDM R10-T now and experience unmatched reliability and performance in industrial switching solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDMR10T?
You can click on the BUY or RFQ button to purchase MCDMR10T from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDMR10T?
You can download the MCDMR10T datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDMR10T?
MULTICOMP PRO
