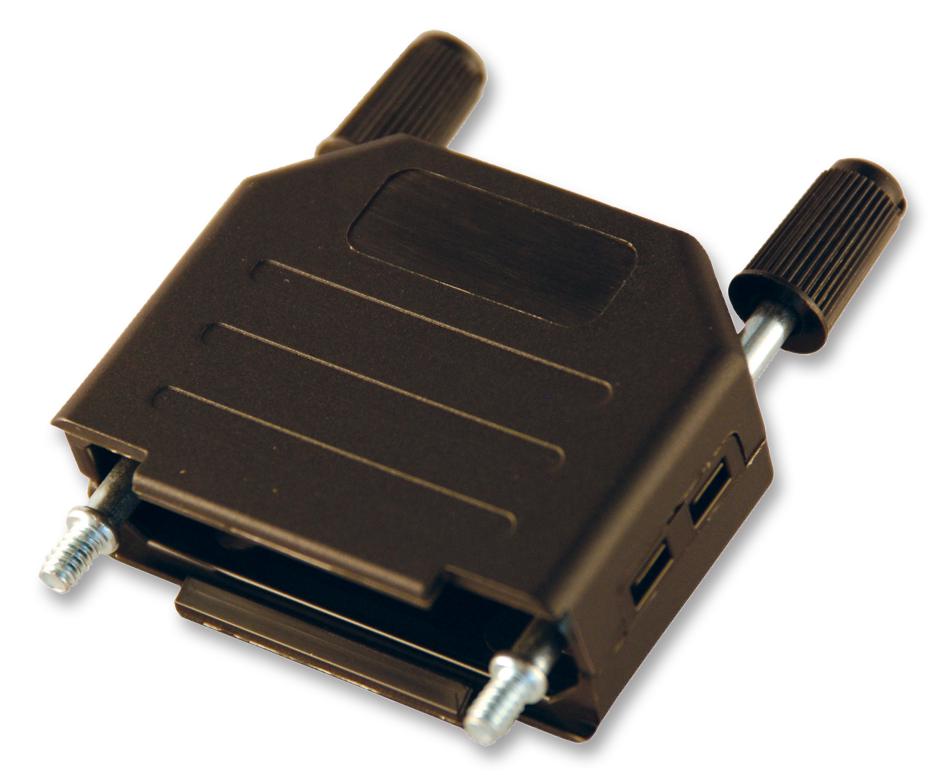

MULTICOMP PRO MCDPPK15K D-Sub Backshell

The DPPK series D-sub backshell is made of nylon, featuring a compact and attractive design. It has a hinged, single-piece mold construction with retaining latches and long jackscrews with UNC 4-40 threads as standard, with optional M2.5, M2.6, or M3 sizes. Available in sizes for 9, 15, 25, and 37 contacts, it includes a lightweight construction with a cable clamp secured by self-tapping screws for strain relief, suitable for cable diameters from 3 to 11 mm. The backshell also features long jackscrews with molded tops for color coding, a straight cable outlet, and operates within a temperature range of -55°C to 105°C.

View MCDPPK15KDatasheet [pdf]

Buy the Multicomp Series DPPK D-Sub Backshell: MCDPPK15K

Enhance your electronic device assembly with the durable and lightweight nylon D-sub backshell from the DPPK series. Designed for easy installation, it features hinged construction, long jackscrews with color-coded top for quick identification, and a straight cable outlet. Suitable for cables from 3 to 11 mm diameter, the backshell operates over a temperature range of -55°C to +105°C. Its compact design ensures space-efficient shielding and cable strain relief, making it ideal for professional electronics, automation systems, and communication equipment.

Order your Multicomp Series DPPK 15Way nylon D-sub backshell today and enjoy reliable cable management for your electronic assemblies.
