MULTICOMP PRO MCDTS24R Tactile Switch
The MCDTS2-4R is a compact single-pole single-throw tactile switch offering a sharp click feel and positive tactile feedback. It features a nylon thermoplastic stem and base, with silver-clad brass terminals and a phosphor bronze contact disc, ensuring high reliability. Its ultra-miniature size and low stroke distance make it ideal for high-density mounting in electronic devices. The contact insert has special treatment to prevent flux build-up during soldering and enables auto-dipping, simplifying manufacturing and enhancing long-lasting durability for various industrial and electronic applications.
MULTICOMP PRO MCDTS24R Tactile Switch Specifications:
- Materials: Cover stainless steel, base nylon thermoplastic, stem nylon thermoplastic, contact disc phosphor bronze with silver cladding, terminal brass with silver cladding, cap thermoplastic ABS
- Operation Force: 160 +50gf (Brown), 260 +50gf (Red), 100 +50gf (Black), 350g Salone
- Stroke: (12 x 12) 0.35 +0.1mm, (6 x 6) 0.25 +0.2mm /-0.1mm
- Operating Temperature: -25°C to +70°C
- Vibration Resistance: MIL-STD-202F method 201A, 10-55-10Hz, 2 hours in X, Y, Z directions
- Shock Resistance: MIL-STD-202F method 213B, 50 G, 11 ms, on all sides
- Electrical Life: 50,000 cycles at 260 gf; 500,000 cycles at 100 gf and 160 gf
- Current Rating: 50mA, 12V DC
- Contact Resistance: >100m maximum
- Insulation Resistance: 10MΩ at 500V DC
- Dielectric Strength: 250V AC for 1 minute
- Soldering: Wave solder max 260°C for 5 seconds; hand solder 320°C for 2 seconds

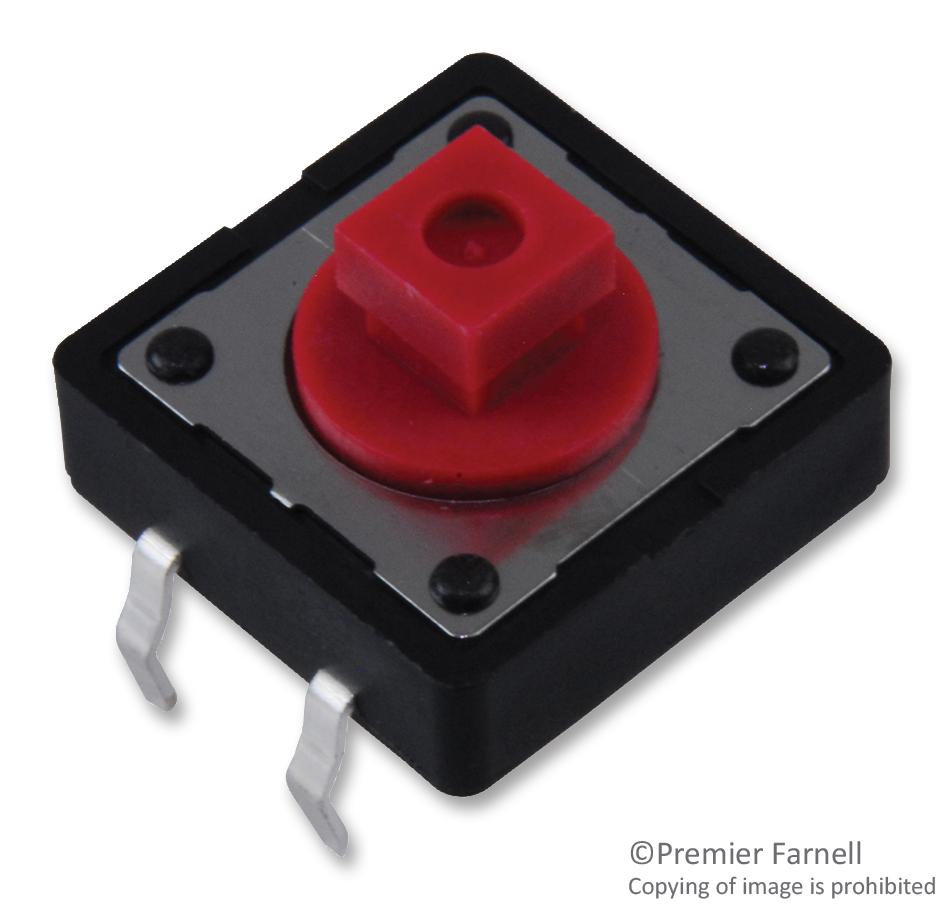

Buy the Buy Multicomp ERO MCDTS2-4R Part Number MCDTS24R Online
Purchase the high-reliability tactile switch from Multicomp ERO online. Ideal for high-density device design, it features a responsive click and durable construction. The MCDTS2-4R offers excellent electrical performance with a long lifecycle and easy soldering compatible with automatic and manual processes. Its compact size optimizes space in electronic projects. Enhance your manufacturing process by ordering this precision switch today—perfect for industrial electronics, consumer devices, and control panels, ensuring professional quality and dependable operation in all applications.
Get Multicomp ERO MCDTS2-4R today—designed for high reliability and long operating life in electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTS24R?
You can click on the BUY or RFQ button to purchase MCDTS24R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTS24R?
You can download the MCDTS24R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTS24R?
MULTICOMP PRO
